Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 2, 2015, 09:33 AM

  • 18 0657_18 0656_02092015_023329.mp4

Date
09/02/2015
W/O
521099
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00696
PipeID
P14506
Time
2:33 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2672
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_521099_TV18169_AUG2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0657
Downstream MH
18 0656
Dir. of Survey
Downstream
Length Surveyed
327.5 ft.
Total Length
327.5 ft.
Structural Index
4
Structural Quick
4200
Structural Rating
8
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 18 0657 to 18 0656
MH: 18 0657MH: 18 0656downstream0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 06572 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start8.7 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: NO, 6"13.7 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"21.7 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start107.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"208 ft. TBA - Tap Break-In Active, at 11 o'clock, -, within 8 inches of joint: NO, 6"208.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"279.9 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish321 ft. FM - Fracture Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES326.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish326.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish327.5 ft. AMH - Downstream Manhole, Survey Ends - 18 0656327.5 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK

Observation photos (2)

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    21.7 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

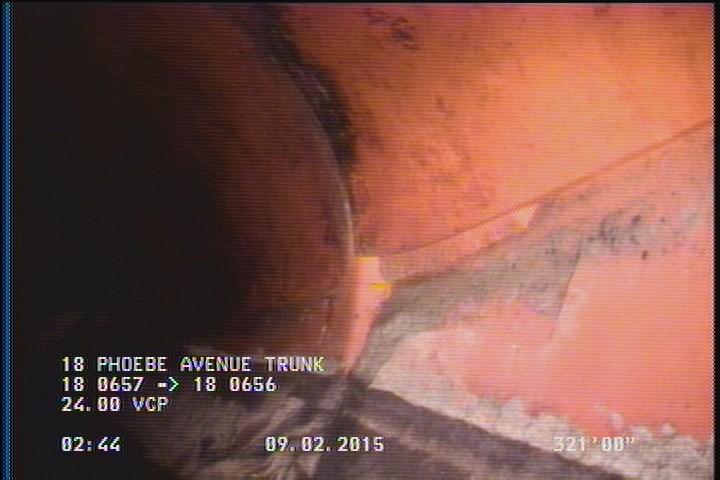

  • Fracture Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES

    321 ft. - Fracture Multiple, from 03 to 04 o'clock, within 8 inches of joint: YES

All inspections of P14506Work order 521099

Observations (18)

DistanceCodeObservation
0MWM—
8.7TFA—
107.1TFC—
0MWL—
326.7DAE—
0AMH18 0657
326.7DAGS—
2DAGS—
208.6TFC—
327.5AMH18 0656
13.7TFA—
279.9FM—
321FM—
21.7FM—
327.5MGOACTIVE CONNECTION AT MH 9 O'CLOCK
213.4TFC—
2DAE—
208TBA—

Properties (5)

additional_info
SC202944
custom_field_two
2
customer
LACSD
datetime
2015-09-02T02:33:05-07:00
sewer_category
GRAVITY
