Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 2, 2015, 08:32 AM

  • 18 0665_18 0664_02092015_013245.mp4

Date
09/02/2015
W/O
521021
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00696
PipeID
P14514
Time
1:32 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K2671
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_521021_TV18081_AUG2015
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
18 0665
Downstream MH
18 0664
Dir. of Survey
Downstream
Length Surveyed
232.1 ft.
Total Length
232.1 ft.
Structural Index
3
Structural Quick
4132
Structural Rating
10
O&M Index
2
O&M Quick
2200
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 18 0665 to 18 0664
MH: 18 0665MH: 18 0664downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 6 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 06650 ft. MWM - Water Mark, 35 %of cross sectional area2 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES15.8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES62.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start131.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"138.5 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"218.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"223.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"230.7 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish230.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish230.7 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish232.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0664

Observation photos (5)

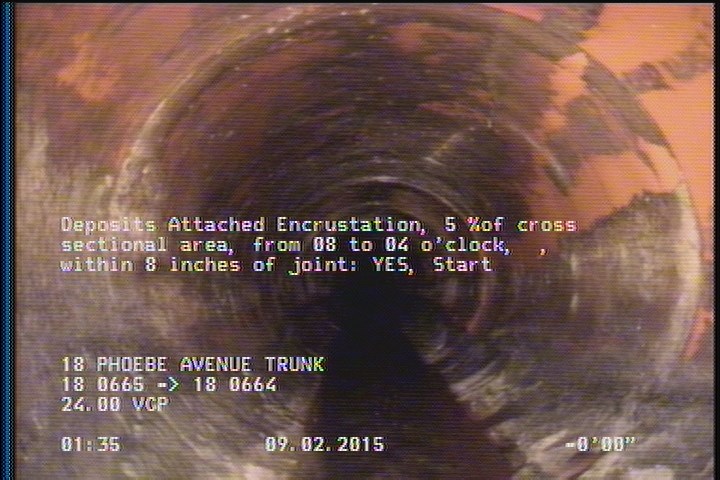

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

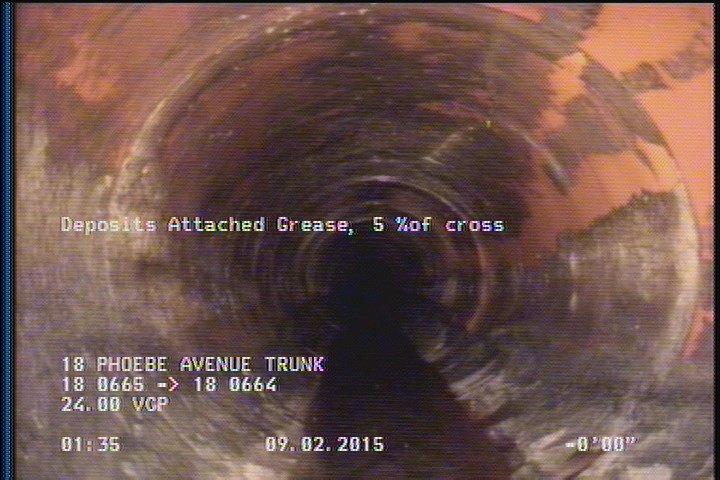

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

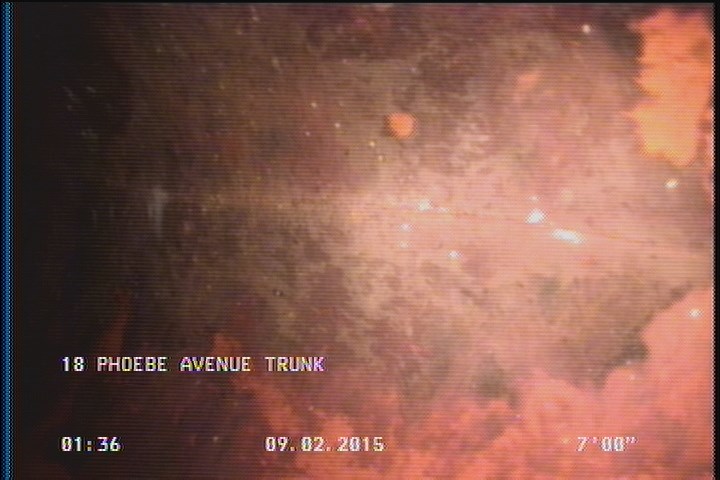

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES

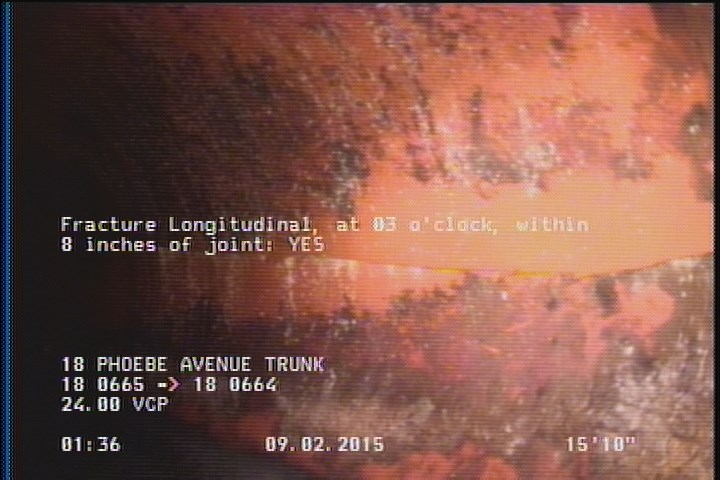

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    15.8 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES

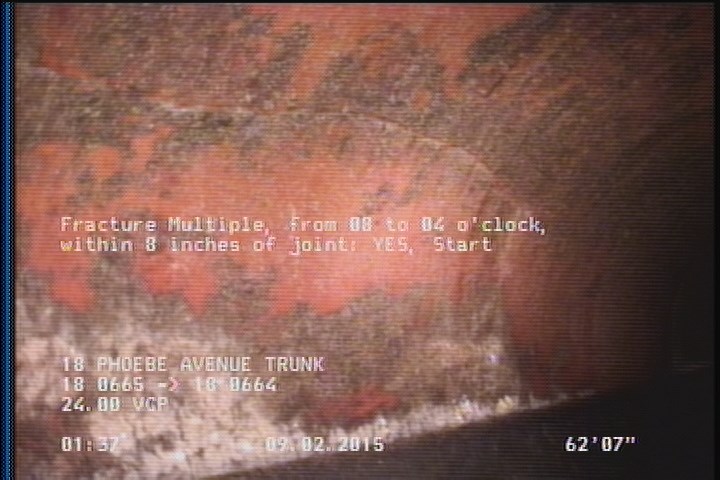

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    62.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14514Work order 521021

Observations (17)

DistanceCodeObservation
138.5TFA—
230.7FM—
2DAE—
0MWL—
0MGOACTIVE CONNECTION AT MH 6 O'CLOCK
232.1AMH18 0664
131.5TFC—
7FL—
230.7DAGS—
2DAGS—
0AMH18 0665
15.8FL—
218.1TFC—
223.7TFC—
230.7DAE—
62.6FM—
0MWM—

Properties (5)

additional_info
SC202943
custom_field_two
2
customer
LACSD
datetime
2015-09-02T01:32:20-07:00
sewer_category
GRAVITY
