Wastewater/Activity/PacpInspection/1.0Feb 14, 2018, 08:50 PM
02 1838_02 1837_2142018_125503.mp4
- Date
- 02/14/2018
- W/O
- 0689807
- Weather
- Light Rain
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00283
- PipeID
- P04650
- Time
- 12:50 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7632
- Sewer Name
- 02 MONTEBELLO INTERCEPTOR TRUNK, SECTS 1&2
- City
- COMMERCE
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- 20180214SHO_MONTEBELLO_INTERCEPTOR_TRUNK_SECTIONS_1_2
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 02 1838
- Downstream MH
- 02 1837
- Dir. of Survey
- Downstream
- Length Surveyed
- 486.4 ft.
- Total Length
- 486.4 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

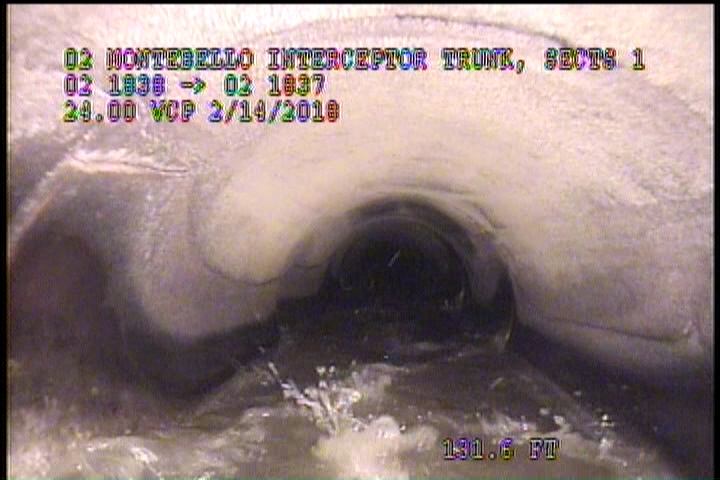

137 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - LONGITUDINAL CRACKS ONE AT 9 ONE AT 3

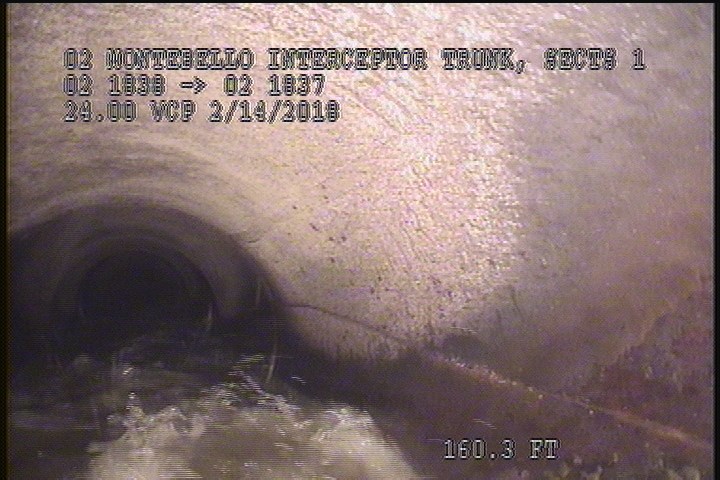

160.2 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start

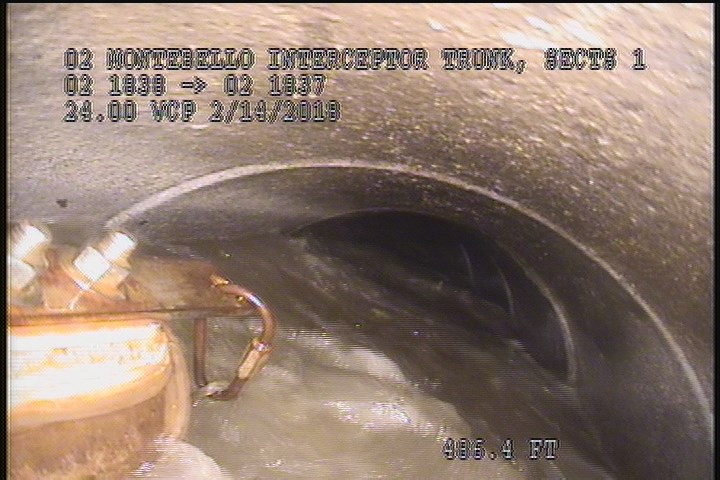

486.4 ft. - General Observation - WATER LEVEL RISES DUE TO CONNECTING INTO A BIGGER LINE
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 486.4 | MGO | WATER LEVEL RISES DUE TO CONNECTING INTO A BIGGER LINE |
| 486.4 | AMH | 0115 |
| 0 | MWM | — |
| 475 | CM | — |
| 17.3 | CL | — |
| 150.4 | CL | LONGER THAN JOINT TO JOINT |
| 0 | MWL | — |
| 190.1 | FL | — |
| 160.2 | FL | — |
| 137 | CM | LONGITUDINAL CRACKS ONE AT 9 ONE AT 3 |
| 0 | AMH | 1255 |
Properties (4)
- custom_field_three
- BROKEN PIPE/LONGER THN JOINT 2 JOINT CRACKS/FRACTR
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-14T12:50:06-08:00
