Wastewater/Activity/PacpInspection/1.0Feb 12, 2018, 08:54 AM
Section#9_J 0502_J 0501__2122018__G6958.mp4
- Date
- 02/12/2018
- W/O
- 0688896
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P11443
- Time
- 12:54 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6958
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 48
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180210MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- J 0502
- Downstream MH
- J 0501
- Dir. of Survey
- Downstream
- Length Surveyed
- 10.4 ft.
- Total Length
- 10.4 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 5
- O&M Quick
- 5200
- O&M Rating
- 10
- Overall Index
- 5
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (3)

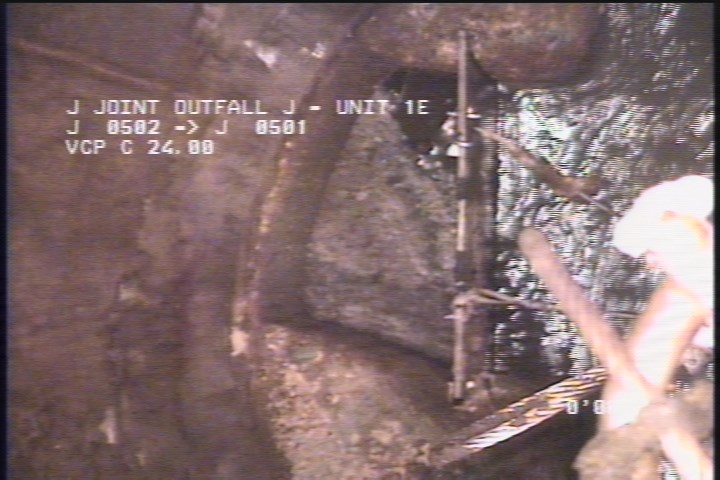

1 ft. - General Observation - STOPLOG IN PLACE

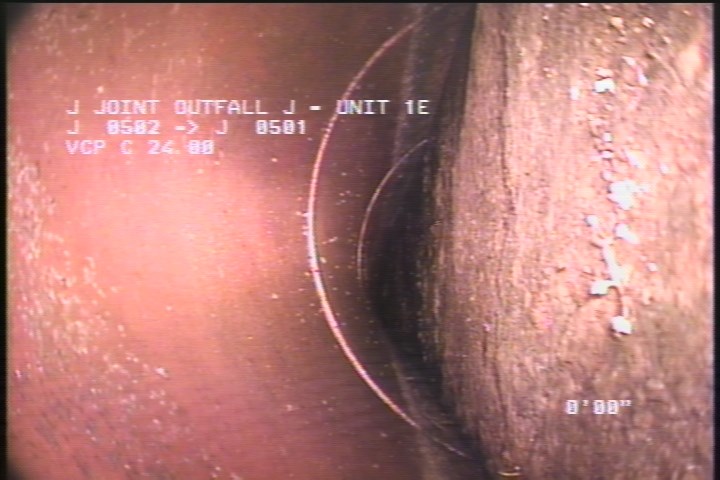

2 ft. - Deposits Settled Other, 80 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start - SLUDGE

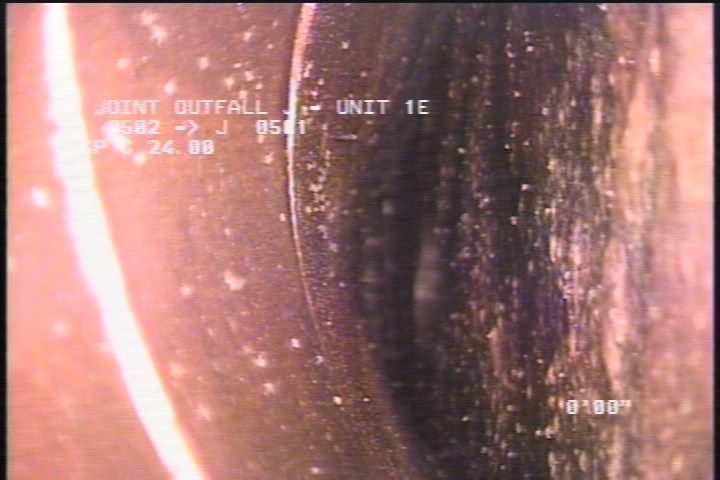

10 ft. - General Observation - ZOOM 10'
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | NO FLOW SLUDGE |
| 10.4 | AMH | 1:35AM |
| 10 | MGO | ZOOM 10' |
| 1 | MGO | STOPLOG IN PLACE |
| 0 | AMH | 1:25AM |
| 2 | DSZ | SLUDGE |
| 0 | MWM | — |
| 10.4 | DSZ | SLUDGE |
Properties (2)
- customer
- LACSD
- datetime
- 2018-02-12T00:54:37-08:00
