Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 09:31 AM
Section#2_J 0215_J 0214__2102018__G6956.mp4
- Date
- 02/10/2018
- W/O
- 0688897
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00057
- PipeID
- P11459
- Time
- 1:31 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6956
- Sewer Name
- J JOINT OUTFALL J - UNIT 1E
- City
- PALO VERDES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 48
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180210MDM_JOINT_OUTFALL_J_UNIT_1E
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Upstream MH
- J 0215
- Downstream MH
- J 0214
- Dir. of Survey
- Downstream
- Length Surveyed
- 433.6 ft.
- Total Length
- 433.6 ft.
- Structural Index
- 2
- Structural Quick
- 2Q00
- Structural Rating
- 176
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (4)

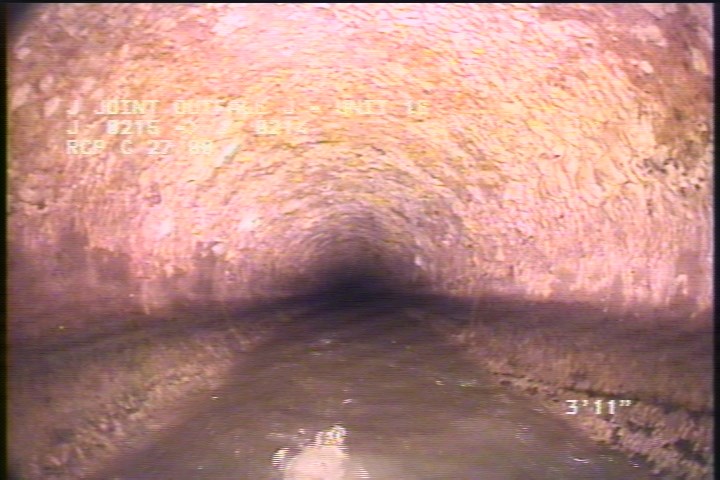

2 ft. - General Observation - MAG COAT 75% START 8:0 TO 4:00

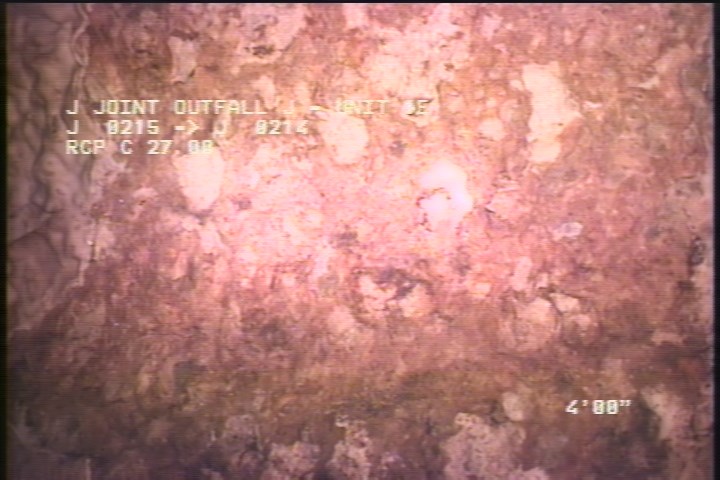

4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - BLISTERING PEELING CONCRETE

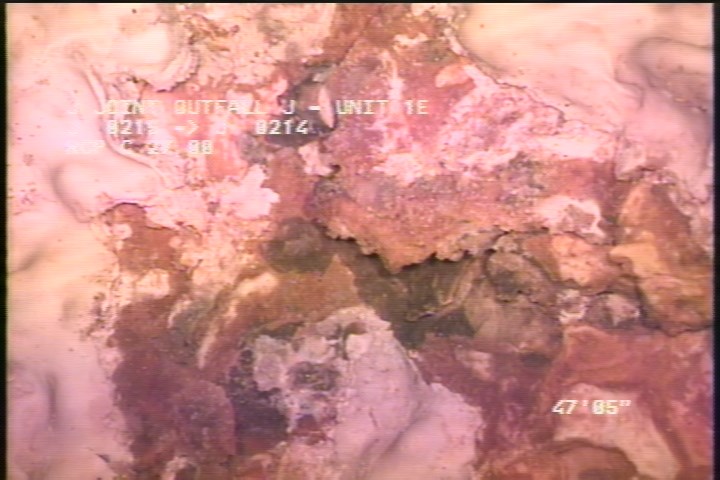

47.4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: NO - BLISTERING CONCRETE

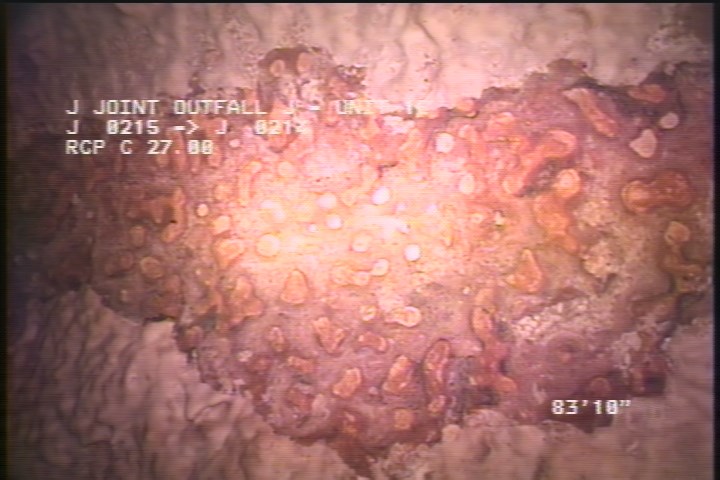

83.9 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES - BLISTERING CONCRETE
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 4 | SSS | BLISTERING PEELING CONCRETE |
| 47.4 | SSS | BLISTERING CONCRETE |
| 433.6 | AMH | 3:05AM |
| 0 | MWM | — |
| 0 | MWL | — |
| 0 | AMH | 2:30AM |
| 2 | MGO | MAG COAT 75% START 8:0 TO 4:00 |
| 83.9 | SSS | BLISTERING CONCRETE |
| 433.1 | MGO | MAG COAT 70% FINISH |
| 433.1 | SSS | BLISTERING PEELIONG CONCRETE |
Properties (4)
- custom_field_three
- BLISTERING PEELING CONCRETE
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-10T01:31:27-08:00
