Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 05:59 PM

  • C 0311_C 0310_2102018_105817.mp4

Date
02/10/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00135
PipeID
P09771
Time
9:59 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7628
Sewer Name
C JOINT OUTFALL C - UNIT 6F
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Maintenance Related
Project
20180210DF_C_JOINT_OUTFALL_C_UNIT_6F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
C 0310
Downstream MH
C 0311
Dir. of Survey
Upstream
Length Surveyed
894.4 ft.
Total Length
894.4 ft.
Structural Index
4
Structural Quick
5231
Structural Rating
15
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole C 0310 to C 0311
MH: C 0310MH: C 0311upstream0 ft. AMH - Upstream Manhole, Survey Ends - 11:06 AM1.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.3 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.3 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish1.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish4.9 ft. MGP - General Photograph5.5 ft. MGP - General Photograph8.8 ft. MGP - General Photograph15.2 ft. MGP - General Photograph17.3 ft. SRC - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start30.5 ft. SRV - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start92.8 ft. MGP - General Photograph104.4 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start104.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start894.4 ft. AMH - Downstream Manhole, Survey Begins - 10:00 AM

Observation photos (8)

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    790 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

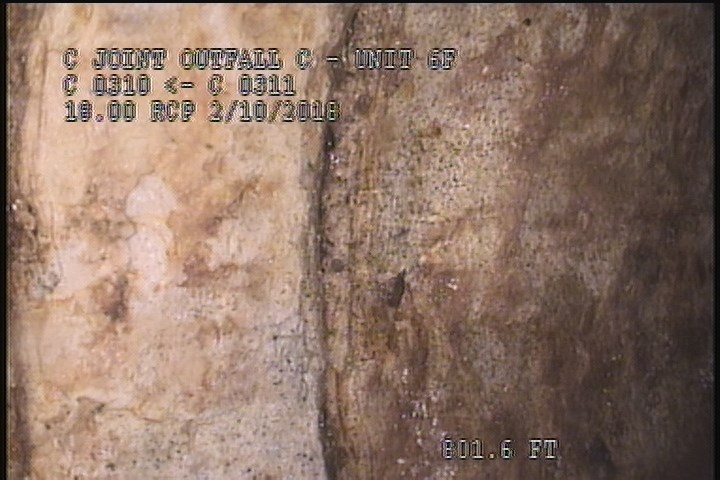

  • General Photograph

    801.6 ft. - General Photograph

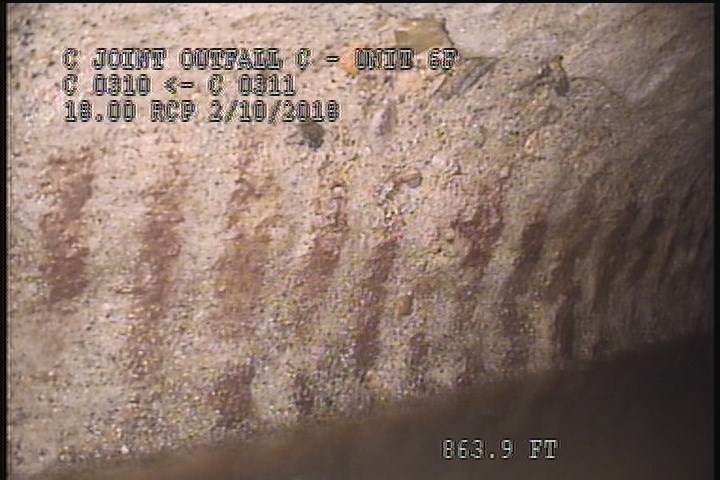

  • Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    863.9 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

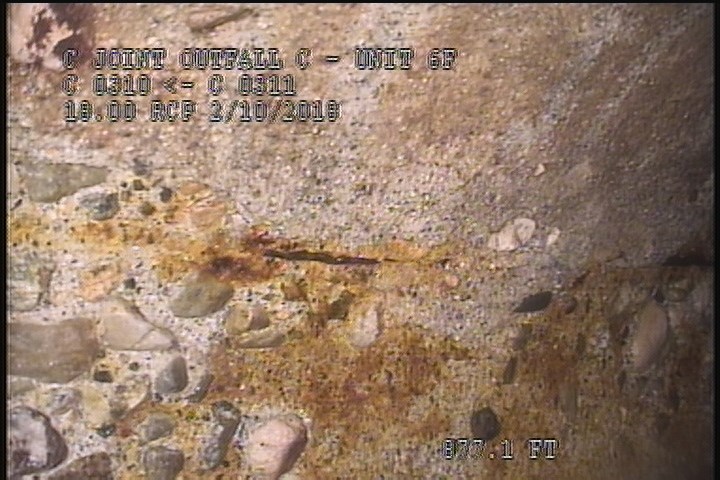

  • Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    877.1 ft. - Surface Reinforcement Corroded, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

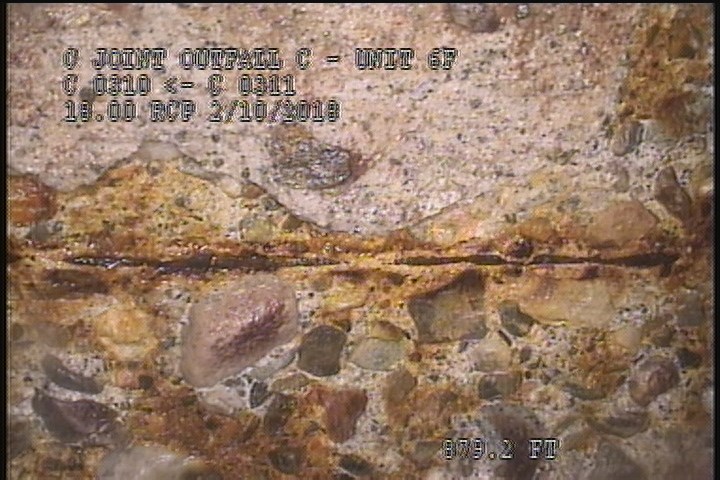

  • General Photograph

    879.2 ft. - General Photograph

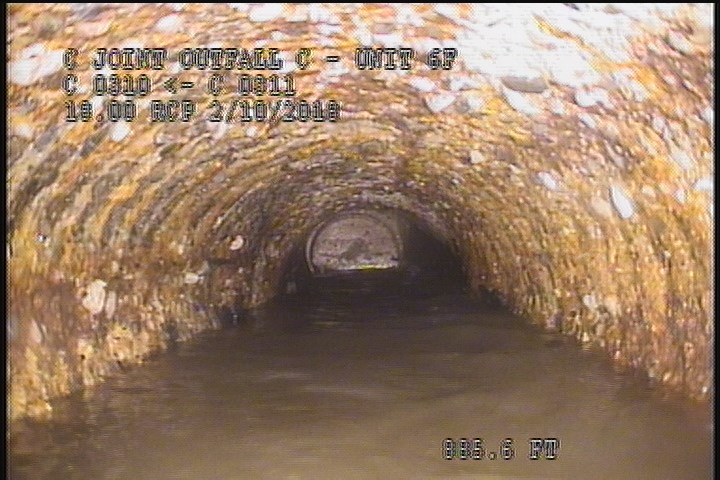

  • General Photograph

    885.6 ft. - General Photograph

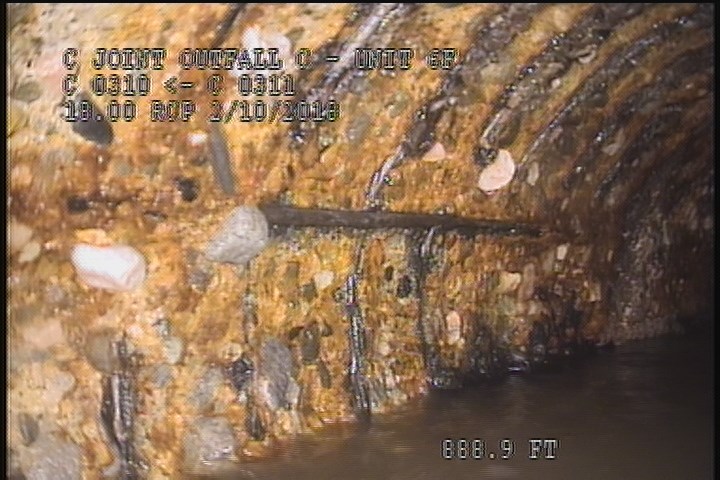

  • General Photograph

    888.9 ft. - General Photograph

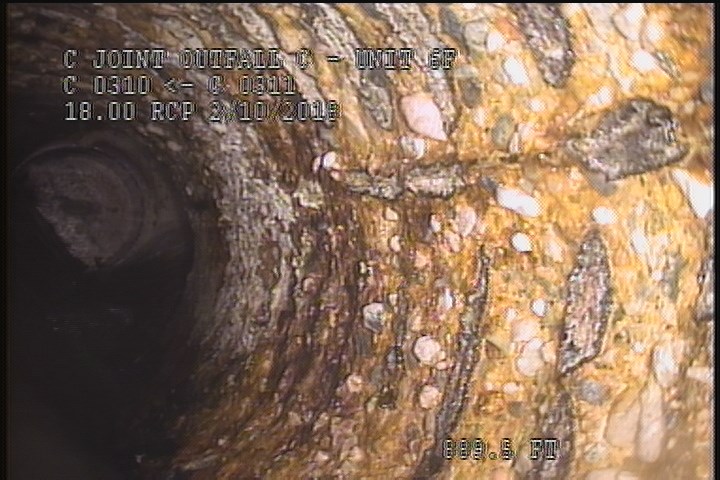

  • General Photograph

    889.5 ft. - General Photograph

All inspections of P09771Work order PENDING

Observations (15)

DistanceCodeObservation
893.1SAV—
877.1SRC—
894.4AMH11:06 AM
863.9SRV—
889.5MGP—
790SSS—
885.6MGP—
801.6MGP—
893.1SRC—
0AMH10:00 AM
790SAV—
888.9MGP—
893.1SRV—
893.1SSS—
879.2MGP—

Properties (4)

additional_info
CALCIUM REMOVAL INSPECTION ONLY
custom_field_two
2
customer
LACSD
datetime
2018-02-10T09:59:03-08:00
