Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 10, 2018, 03:54 PM

  • C 0311_C 0310_2102018_090130.mp4

Date
02/10/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00135
PipeID
P09771
Time
7:54 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7628
Sewer Name
C JOINT OUTFALL C - UNIT 6F
City
CERRITOS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 19
Page No.
04
Purpose
Maintenance Related
Project
20180210DF_C_JOINT_OUTFALL_C_UNIT_6F
Material
Reinforced Concrete Pipe
Shape
Circular
Height
18 in.
Upstream MH
C 0310
Downstream MH
C 0311
Dir. of Survey
Upstream
Length Surveyed
793.1 ft.
Total Length
793.1 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
7
Pipe schematic from manhole C 0310 to C 0311
MH: C 0310MH: C 0311upstream0 ft. MSA - Survey Abandoned - DEBRIS1.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish48.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4" - Open199.1 ft. DAE - Deposits Attached Encrustation, 10 %of cross sectional area, from 10 to 04 o'clock, , within 8 inches of joint: YES203 ft. MGP - General Photograph661.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 3" - Open665.1 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start665.1 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start665.2 ft. MGP - General Photograph667 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 85% MAG777.8 ft. MGP - General Photograph791.1 ft. SZ - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG793 ft. MWM - Water Mark, 20 %of cross sectional area793.1 ft. AMH - Downstream Manhole, Survey Begins - 8:00 AM793.1 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (4)

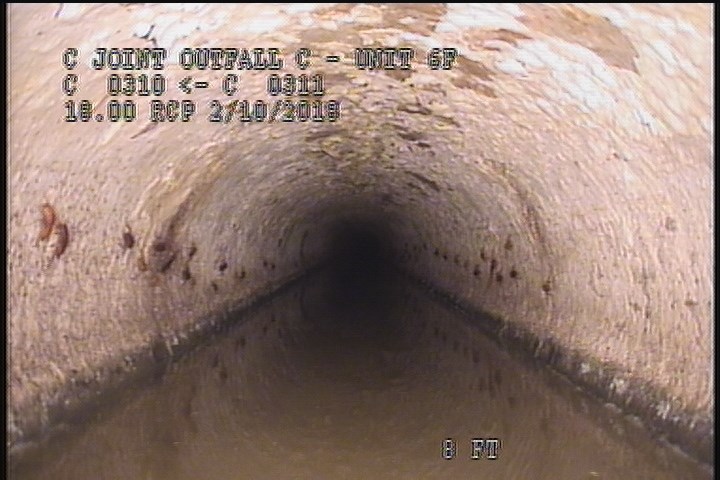

  • Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

    2 ft. - Surface Other, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - 85% MAG

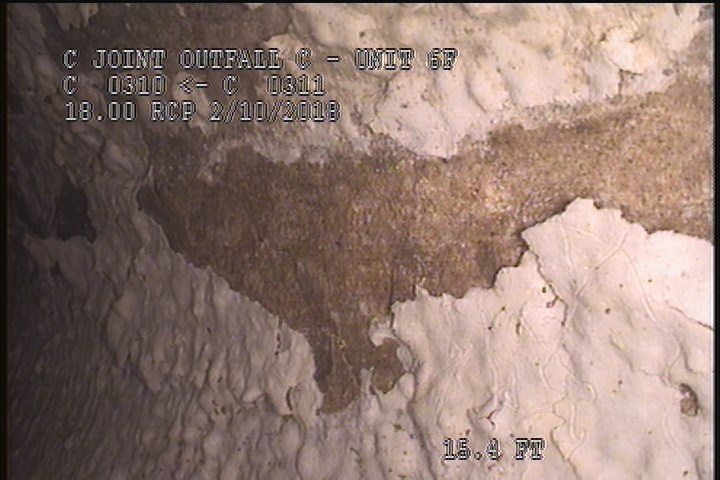

  • General Photograph

    15.3 ft. - General Photograph

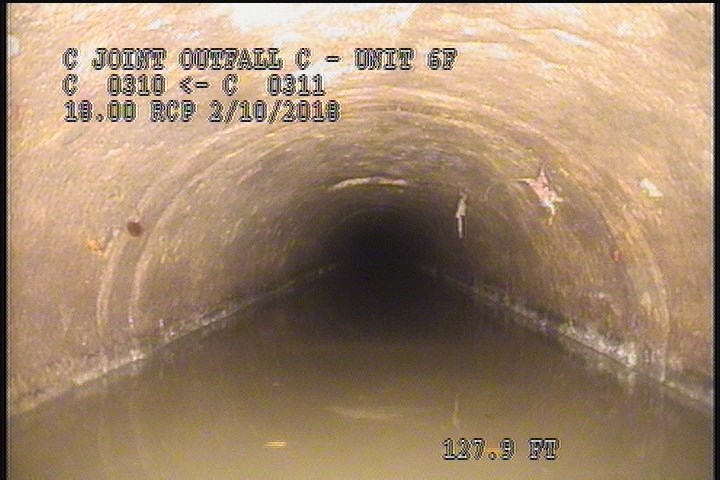

  • General Photograph

    127.9 ft. - General Photograph

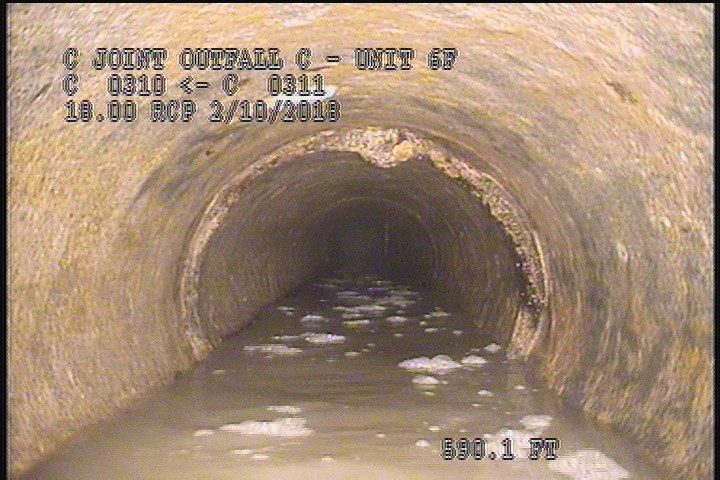

  • General Photograph

    590.1 ft. - General Photograph

All inspections of P09771Work order PENDING

Observations (16)

DistanceCodeObservation
790SAV—
126.1SZ85% MAG
132TFOpen
792SSS—
744.3TFOpen
0AMH8:00 AM
128SSS—
127.9MGP—
2SZ85% MAG
128SAV—
590.1MGP—
793.1MSADEBRIS
0.1MWM—
15.3MGP—
594DAE—
0MWL—

Properties (4)

additional_info
CALCIUM REMOVAL INSPECTION ONLY
custom_field_two
5
customer
LACSD
datetime
2018-02-10T07:54:06-08:00
