Wastewater/Activity/PacpInspection/1.0Feb 9, 2018, 09:12 AM
Section#3_01 0971_01 0970__292018__G6953.mp4
- Date
- 02/09/2018
- W/O
- 0686794
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00228
- PipeID
- P01808
- Time
- 1:12 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6953
- Sewer Name
- 01 WRIGHT ROAD TRUNK
- City
- MAYWOOD
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 05
- Purpose
- Capital Improvement Program Assesment
- Project
- 20180209MDM_WRIGHT_ROAD_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Upstream MH
- 01 0971
- Downstream MH
- 01 0970
- Dir. of Survey
- Downstream
- Length Surveyed
- 115.2 ft.
- Total Length
- 115.2 ft.
- Structural Index
- 3
- Structural Quick
- 3421
- Structural Rating
- 14
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (5)

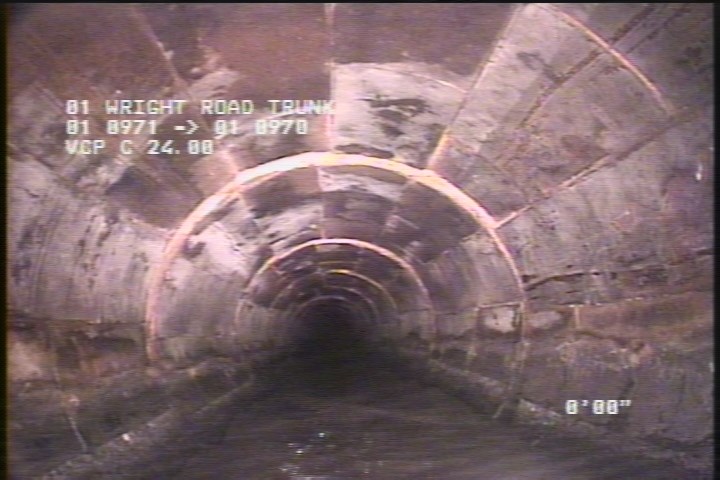

2 ft. - Material Change, Clay tile (not vitrified clay) - RCP CTL START

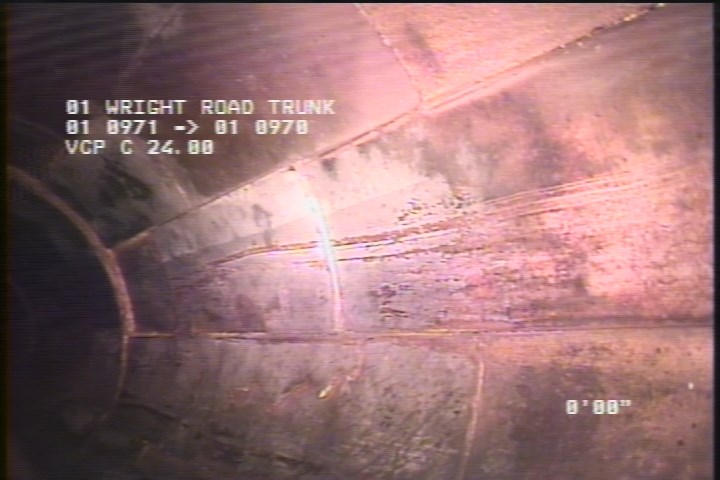

2 ft. - General Observation - TILES 100% IN PLACE START

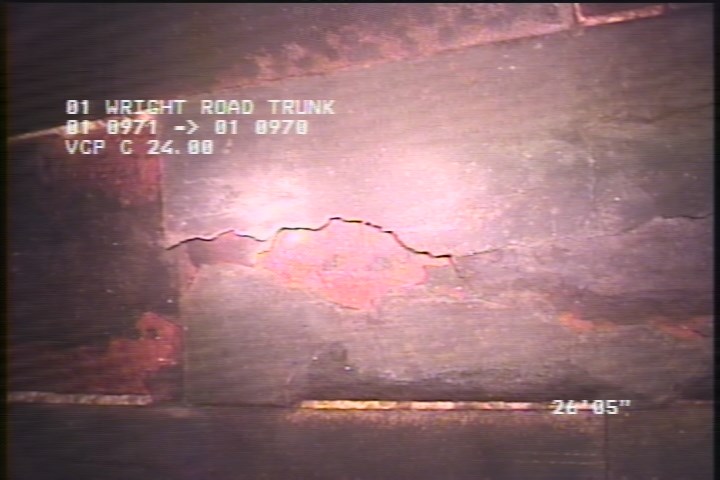

26.4 ft. - Surface Spalling, from 01 to 03 o'clock, within 8 inches of joint: NO - PEELING TILES

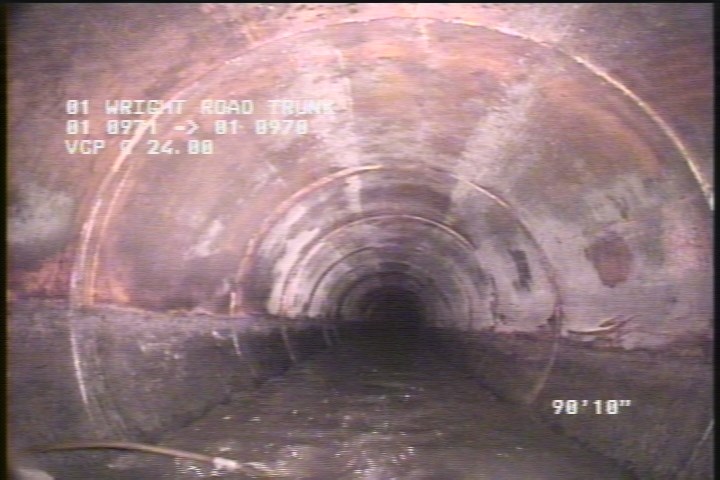

90.8 ft. - General Observation - 24" VCP

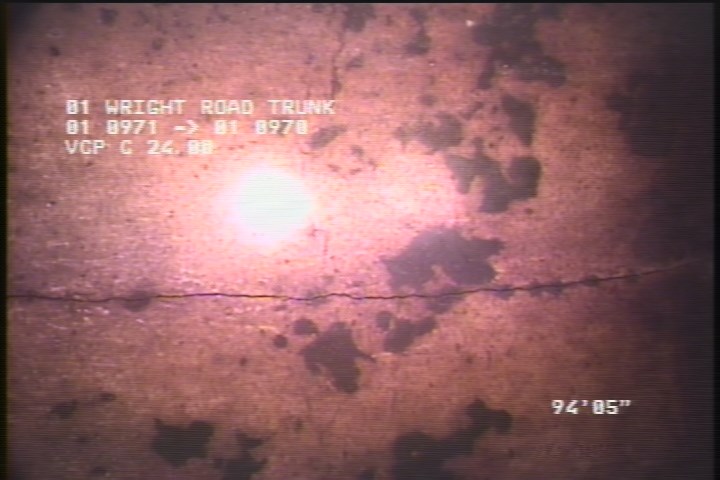

90.8 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 115.2 | AMH | 4:15AM |
| 0 | AMH | 3:55AM |
| 90.9 | MGO | TILES 100% IN PLACE FINISH |
| 90.8 | MMC | RCP CTL FINISH |
| 2 | MMC | RCP CTL START |
| 26.4 | SSS | PEELING TILES |
| 0 | MWM | — |
| 90.8 | MGO | 24" VCP |
| 0 | MGO | MH CONN 3:00 ACTIVE |
| 2 | MGO | TILES 100% IN PLACE START |
| 108.7 | FL | SLIGHT |
| 90.8 | FL | SLIGHT |
| 0 | MWL | — |
Properties (4)
- custom_field_three
- SLIGHT LONG FRACTURE JOINT TO JOINT LONGER
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-09T01:12:26-08:00
