Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 9, 2018, 09:03 AM

  • Section#1_01 0981_01 0980__292018__G6953.mp4

Date
02/09/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01819
Time
1:03 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6953
Sewer Name
01 WRIGHT ROAD TRUNK
City
MAYWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
05
Purpose
Capital Improvement Program Assesment
Project
20180209MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0981
Downstream MH
01 0980
Dir. of Survey
Downstream
Length Surveyed
350.6 ft.
Total Length
350.6 ft.
Structural Index
3
Structural Quick
3B2A
Structural Rating
67
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
67
Pipe schematic from manhole 01 0981 to 01 0980
MH: 01 0981MH: 01 0980downstream0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:10AM6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - HAIRLINE8 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H10.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT10.7 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT13.5 ft. MGO - General Observation - 12:00 SLIGHT FRACTURE24 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H34 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT37 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - H42.1 ft. MGO - General Observation - 24" VCP49.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H72.9 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H98.8 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - H101.2 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H129.5 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - H134.2 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES157.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H163.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H201.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H266.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H313.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H318.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H330.4 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H333.5 ft. FC - Fracture Circumferential, from 08 to 11 o'clock, within 8 inches of joint: YES - H338.4 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - H343.6 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H350.2 ft. MGO - General Observation - MH CONN 3:00 ACTIVE350.6 ft. AMH - Downstream Manhole, Survey Ends - 1:45AM

Observation photos (4)

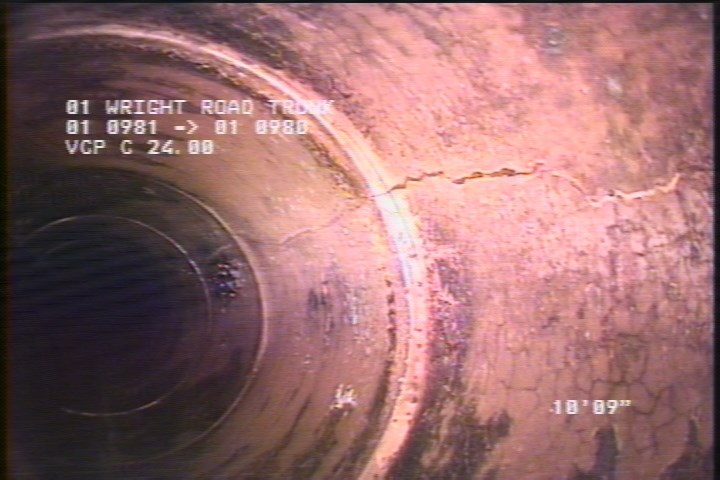

  • Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT

    10.7 ft. - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SLIGHT

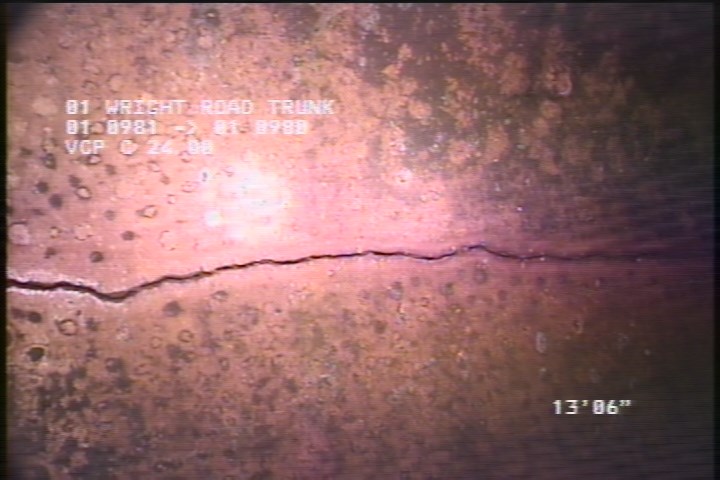

  • General Observation - 12:00 SLIGHT FRACTURE

    13.5 ft. - General Observation - 12:00 SLIGHT FRACTURE

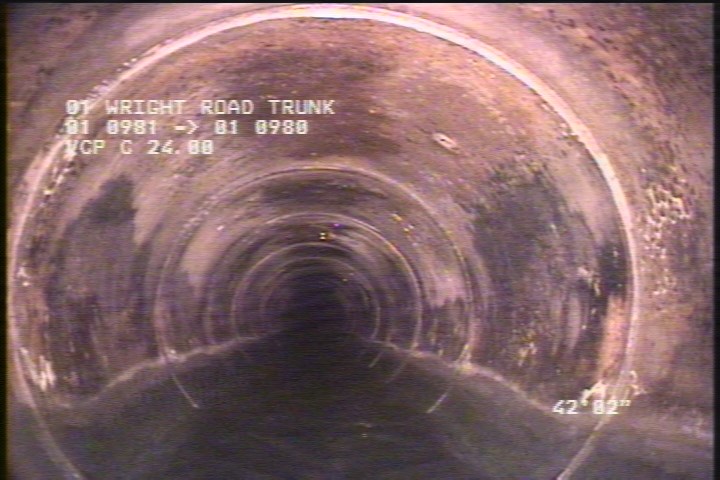

  • General Observation - 24" VCP

    42.1 ft. - General Observation - 24" VCP

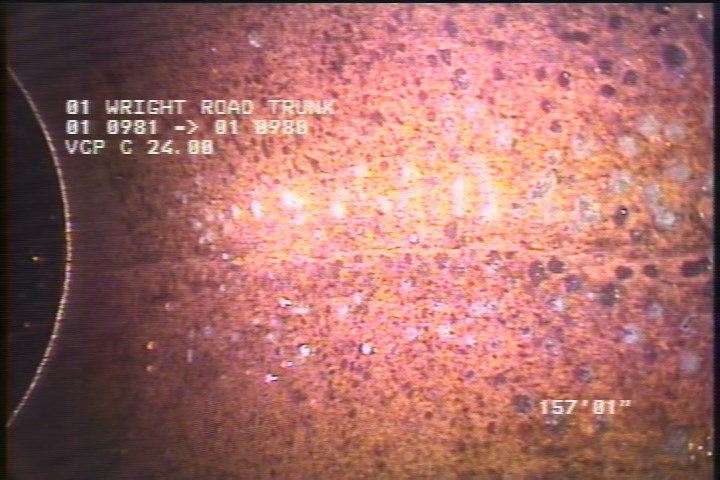

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    157.1 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P01819Work order 0686794

Observations (31)

DistanceCodeObservation
49.9FCH
343.6FCH
101.2FLH
163.9FLH
72.9FCH
8FLH
157.1FLH
333.5FCH
330.4FCH
266.7FLH
318.5FLH
98.8FCH
13.5MGO12:00 SLIGHT FRACTURE
350.2MGOMH CONN 3:00 ACTIVE
34FLSLIGHT
10.7FLSLIGHT
0MGOMH CONN 9:00 ACTIVE
24FLH
338.4FCH
129.5FLH
6FCHAIRLINE
42.1MGO24" VCP
37FCH
350.6AMH1:45AM
201.4FLH
0MWL—
0MWM—
0AMH1:10AM
313.1FLH
134.2FC—
10.7FCSLIGHT

Properties (4)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-02-09T01:03:40-08:00
