Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 08:15 AM

  • 29 0166_29 0165 _30012018_003407.mp4

Date
01/30/2018
W/O
684948
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00354
PipeID
P24062
Time
12:15 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5427
Sewer Name
29 28TH STREET TRUNK
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_684948_TV29009_FEB2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
29 0166
Downstream MH
29 0165
Dir. of Survey
Downstream
Length Surveyed
323 ft.
Total Length
323 ft.
Structural Index
4
Structural Quick
4J31
Structural Rating
225
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
3
Overall Quick
—
Overall Rating
333
Pipe schematic from manhole 29 0166 to 29 0165
MH: 29 0166MH: 29 0165downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 29 01660 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.6 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"21.8 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"23.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES32.1 ft. CM - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES35.1 ft. FM - Fracture Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES50 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES64.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"85.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"134.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"136.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"182.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"184.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"233.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"235.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"281.1 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 6"281.3 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"283.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"321.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish321.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish323 ft. AMH - Downstream Manhole, Survey Ends - 29 0165

Observation photos (5)

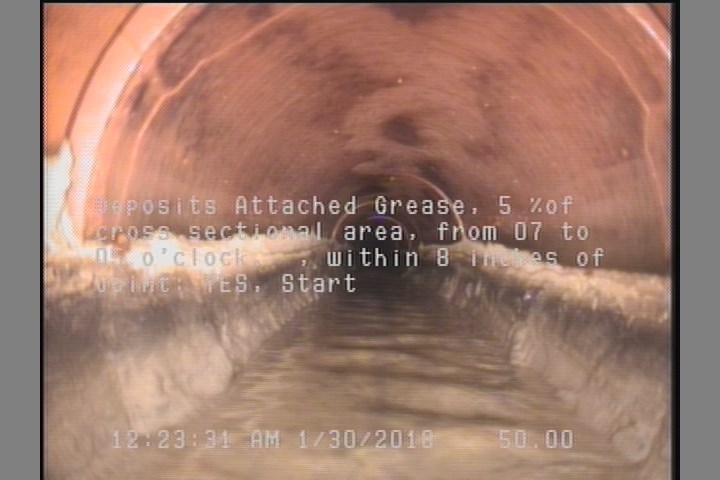

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

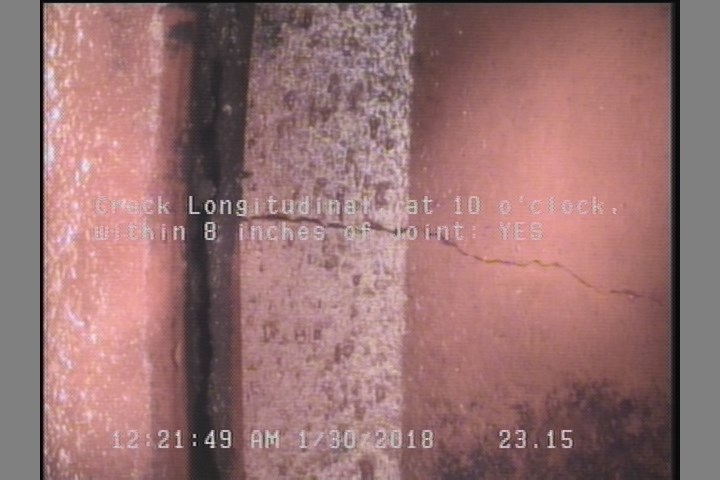

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    23.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

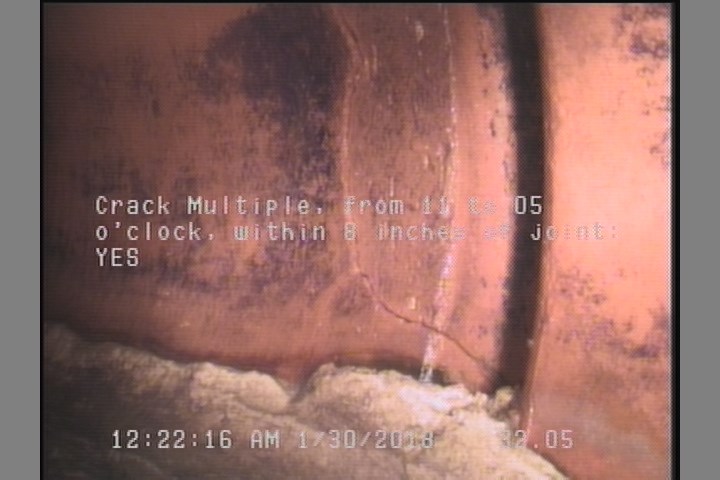

  • Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

    32.1 ft. - Crack Multiple, from 11 to 05 o'clock, within 8 inches of joint: YES

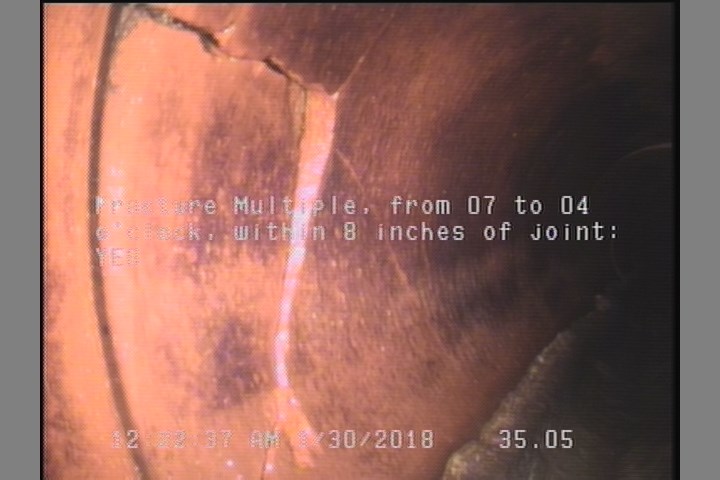

  • Fracture Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

    35.1 ft. - Fracture Multiple, from 07 to 04 o'clock, within 8 inches of joint: YES

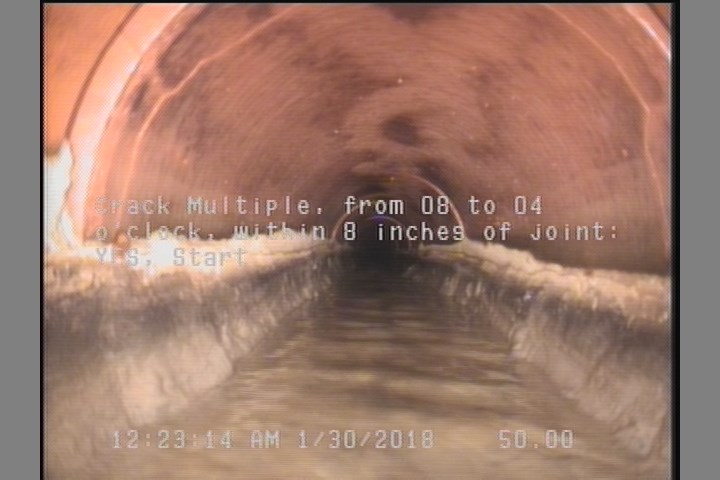

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    50 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P24062Work order 684948

Observations (26)

DistanceCodeObservation
50FM—
85.3TFC—
64.3TF—
184.7TFC—
283.9TF—
321.9FM—
0MWM—
32.1CM—
321.9DAGS—
3.6TF—
21.8TFC—
2DAGS—
0MGOCONNECTION AT MH 3 O'CLOCK
23.2CL—
0AMH29 0166
134.1TF—
35.1FM—
281.1TB—
235.8TFC—
182.1TFC—
0MWL—
136.3TFC—
281.3TFC—
323AMH29 0165
233.3TF—
0MGOCONNECTION AT MH 9 O'CLOCK

Properties (4)

additional_info
SC347062
custom_field_two
2
customer
LACSD
datetime
2018-01-30T00:15:27-08:00
