Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:34 AM
21 0902_21 0901 _30012018_014901.mp4
- Date
- 01/30/2018
- W/O
- 684721
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00775
- PipeID
- P15977
- Time
- 1:34 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5391
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 02
- Purpose
- Routine Assessment
- Project
- WO_684721_TV21014_FEB2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 21 0902
- Downstream MH
- 21 0901
- Dir. of Survey
- Downstream
- Length Surveyed
- 398.1 ft.
- Total Length
- 398.1 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

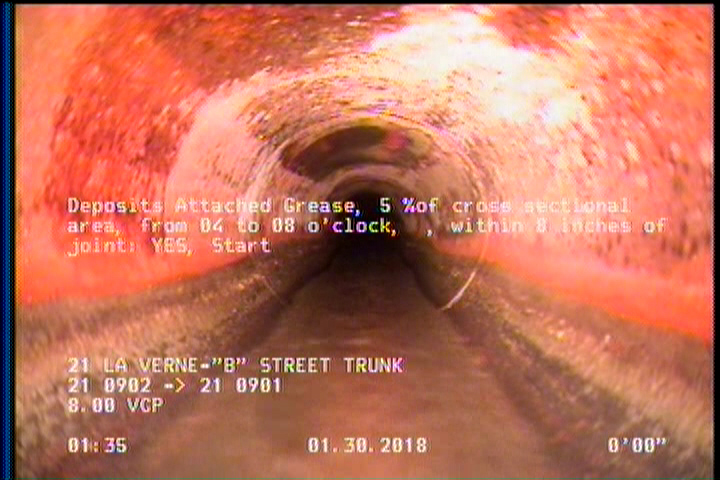

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

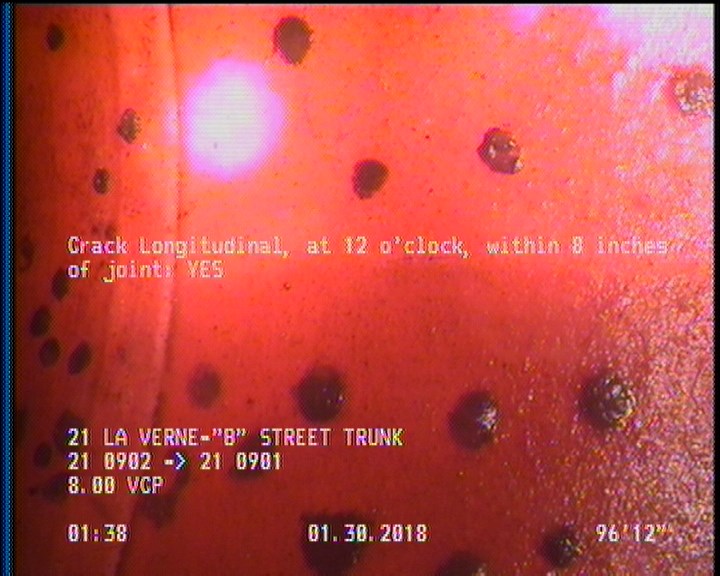

97 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 398 | MGO | Slight Surface Spalling throughout the reach, 9 to 3 o'clock |
| 188.5 | TFC | — |
| 398.1 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 138.9 | TFC | — |
| 238.2 | TFC | — |
| 89.1 | TFC | — |
| 0 | MWL | — |
| 337.4 | TFC | — |
| 0 | AMH | 21 0902 |
| 387.4 | TFC | — |
| 97 | CL | — |
| 39 | TFC | — |
| 287.9 | TFC | — |
| 398.1 | AMH | 21 0901 |
Properties (4)
- additional_info
- SC346970
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-30T01:34:20-08:00
