Wastewater/Activity/PacpInspection/1.0Dec 12, 2017, 05:49 AM
18 0306A_18 0306 _11122017_214919.mp4
- Date
- 12/11/2017
- W/O
- 674001
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00683
- PipeID
- P14138
- Time
- 9:49 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5272
- Sewer Name
- 18 LA MIRADA TRUNK, SECTS 1&2
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_674001_TV18098_DEC2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0306A
- Downstream MH
- 18 0306
- Dir. of Survey
- Downstream
- Length Surveyed
- 111.1 ft.
- Total Length
- 111.1 ft.
- Structural Index
- 3
- Structural Quick
- 513C
- Structural Rating
- 109
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 109
Observation photos (3)

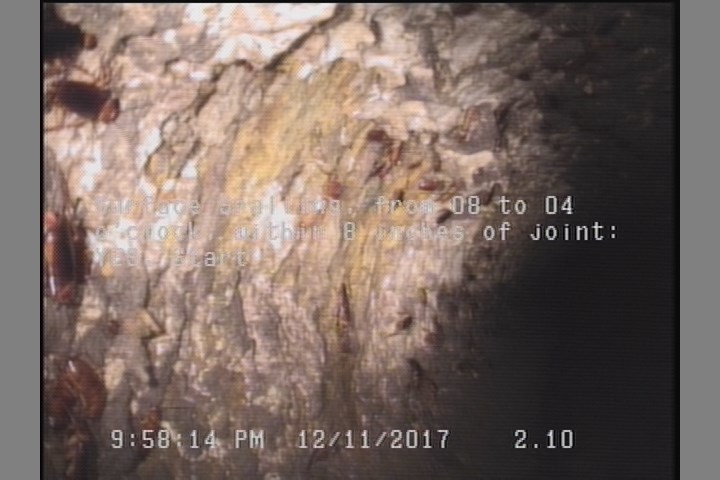

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

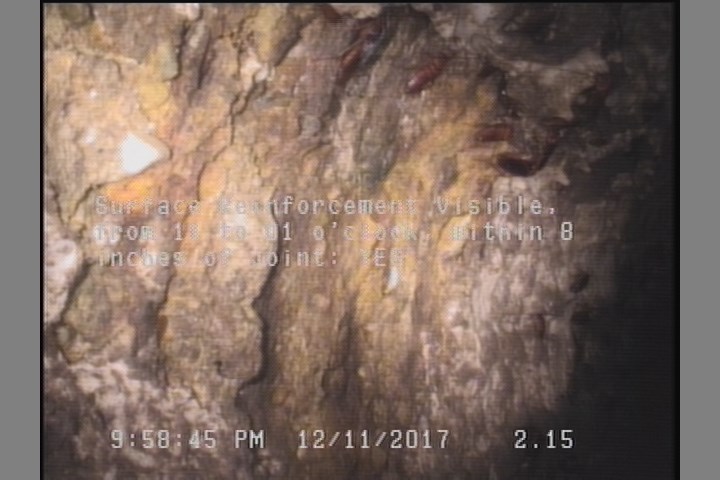

2.2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES

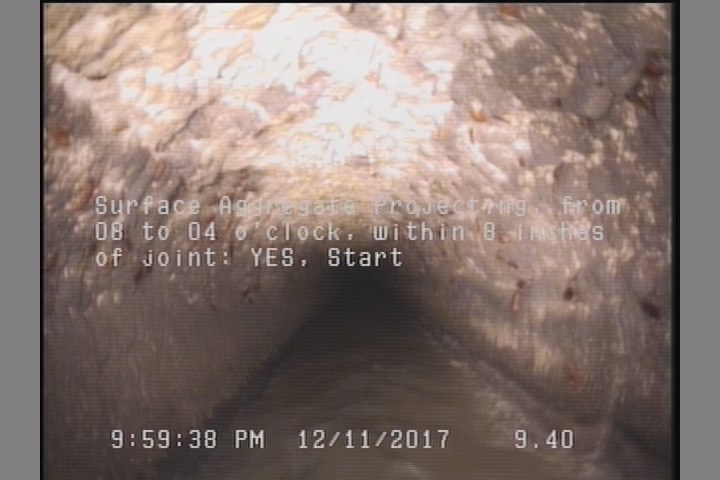

9.4 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 111.1 | SSS | — |
| 2.1 | SSS | — |
| 111.1 | SAP | — |
| 9.4 | SAP | — |
| 0 | AMH | 18 0306A |
| 111.1 | AMH | 18 0306 |
| 95 | TFC | — |
| 0 | MWM | — |
| 2.2 | SRV | — |
| 0 | MWL | — |
| 46.4 | TFC | — |
Properties (4)
- additional_info
- SC346299
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-12-11T21:49:10-08:00
