Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 08:26 PM
F 0252_F 0251_222018_125358.mp4
- Date
- 02/02/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00035
- PipeID
- P10174
- Time
- 12:26 PM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7620
- Sewer Name
- F JOINT OUTFALL F - UNIT 3A
- City
- CERRITOS
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 39
- Purpose
- Routine Assessment
- Project
- 20180202SHO_JOINT_OUTFALL_F_UNIT_3A
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 81 in.
- Upstream MH
- F 0252
- Downstream MH
- F 0251
- Dir. of Survey
- Downstream
- Length Surveyed
- 144.5 ft.
- Total Length
- 144.5 ft.
- Structural Index
- 4
- Structural Quick
- 5231
- Structural Rating
- 13
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

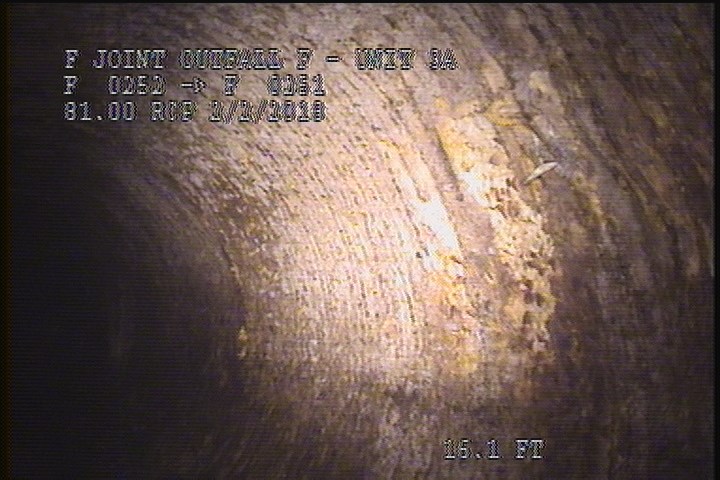

16 ft. - Surface Reinforcement Visible, from 11 to 03 o'clock, within 8 inches of joint: YES, Start

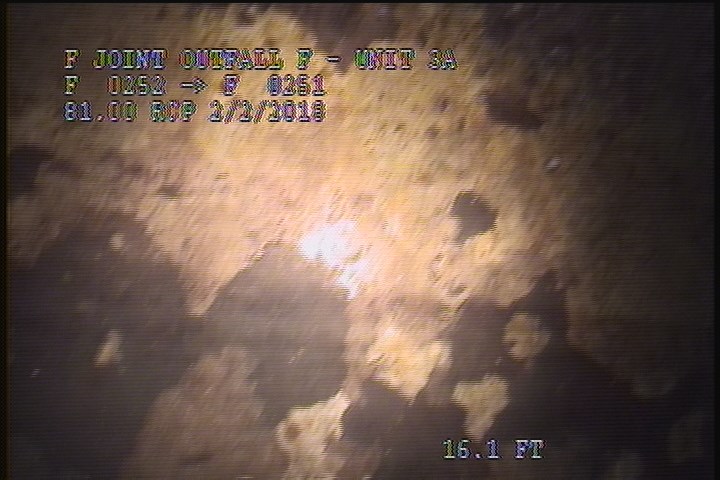

16 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: NO, Start

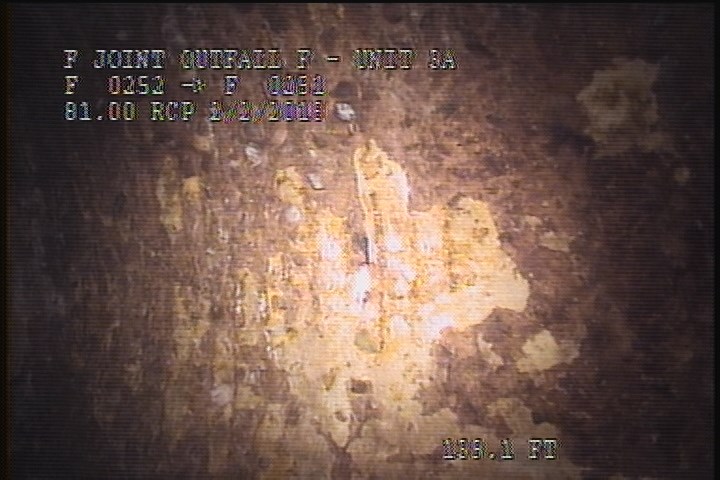

139.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: NO
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 16 | SRV | — |
| 130.6 | SRV | — |
| 0 | MWM | — |
| 139.1 | SRV | — |
| 130.5 | SAP | — |
| 144.5 | AMH | 0105 |
| 16 | SAP | — |
| 0 | AMH | 1255 |
| 0 | MWL | — |
Properties (4)
- custom_field_three
- VISIBLE REBAR AND VISIBLE AGG.
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-02-02T12:26:39-08:00
