Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 06:38 AM
32 1330_32 1329 _02012018_230514.mp4
- Date
- 02/01/2018
- W/O
- 687670
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z01171
- PipeID
- P25916
- Time
- 10:38 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5396
- Sewer Name
- 32 MAGIC MOUNTAIN PKWY TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- WO_687670_DISTRICT32_FEB2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 32 1330
- Downstream MH
- 32 1329
- Dir. of Survey
- Downstream
- Length Surveyed
- 220.6 ft.
- Total Length
- 220.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3121
- O&M Rating
- 5
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

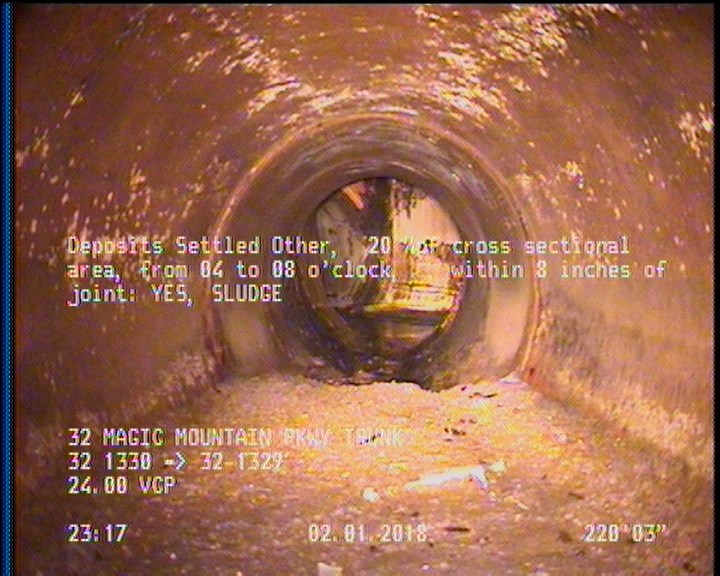

220.3 ft. - Deposits Settled Other, 20 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES - SLUDGE

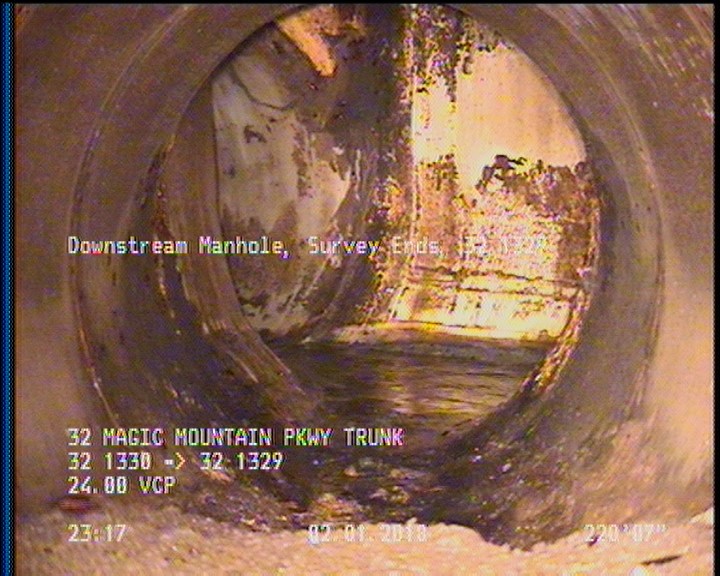

220.6 ft. - Downstream Manhole, Survey Ends - 32 1329
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 220.6 | AMH | 32 1329 |
| 220.3 | DSZ | — |
| 220.3 | DSZ | SLUDGE |
| 0 | AMH | 32 1330 |
| 185 | DSZ | DEBRIS |
| 219 | MGO | SPALLING THROUGHOUT THE REACH, FROM 12 TO 12 O'CLOCK |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC346975
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-02-01T22:38:34-08:00
- sewer_category
- Gravity
- year_laid
- 39052
