Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 11:14 AM

  • 0_29 0192 _26012018_032342.mp4

Date
01/26/2018
W/O
1590881
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01025
PipeID
P24090
Time
3:14 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5424
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Alley
Location Code
H
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_684841_TV29101_FEB2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0192
Downstream MH
0
Dir. of Survey
Upstream
Length Surveyed
132.8 ft.
Total Length
132.8 ft.
Structural Index
3
Structural Quick
513D
Structural Rating
84
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
84
Pipe schematic from manhole 29 0192 to 0
MH: 29 0192MH: 0upstream0 ft. AEP - End of Pipe0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish46.5 ft. JOM - Joint Offset Medium51.4 ft. H - Hole, from 12 to 03 o'clock, within 8 inches of joint: YES - LOOKS LIKE IT MIGHT HAVE A REPAIR85.9 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"89.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"113.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"123 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"126.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start126.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"129.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES132.8 ft. AMH - Downstream Manhole, Survey Begins - 29 0192132.8 ft. MWM - Water Mark, 5 %of cross sectional area132.8 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (5)

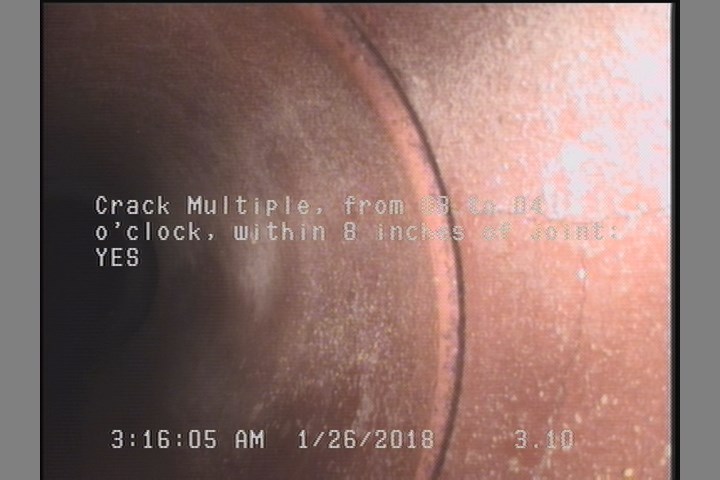

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

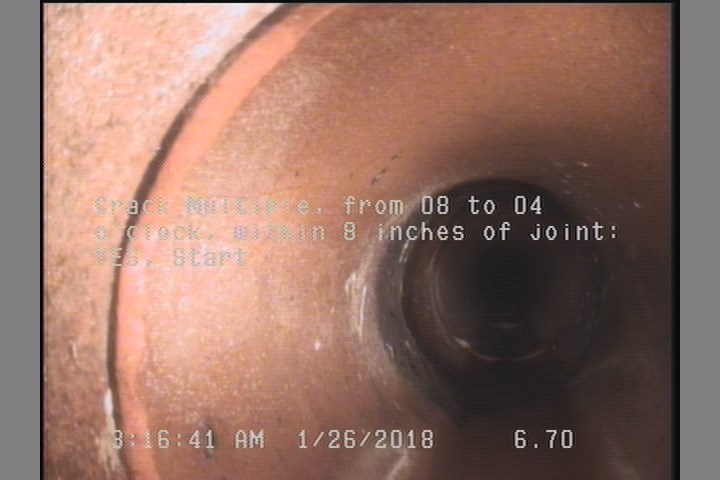

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    6.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

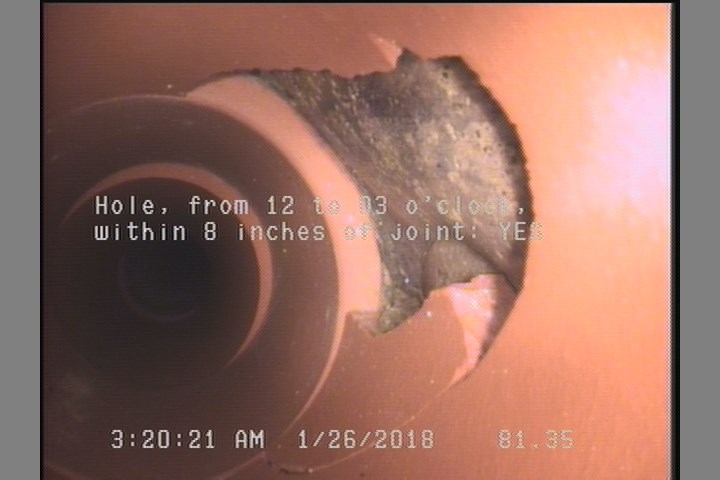

  • Hole, from 12 to 03 o'clock, within 8 inches of joint: YES - LOOKS LIKE IT MIGHT HAVE A REPAIR

    81.4 ft. - Hole, from 12 to 03 o'clock, within 8 inches of joint: YES - LOOKS LIKE IT MIGHT HAVE A REPAIR

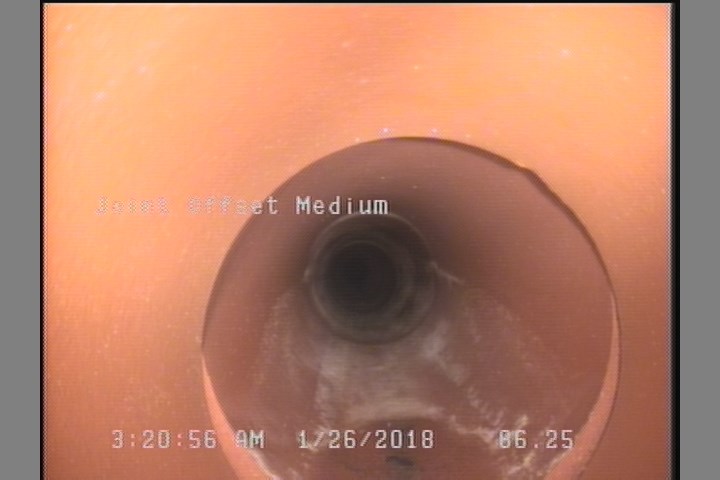

  • Joint Offset Medium

    86.3 ft. - Joint Offset Medium

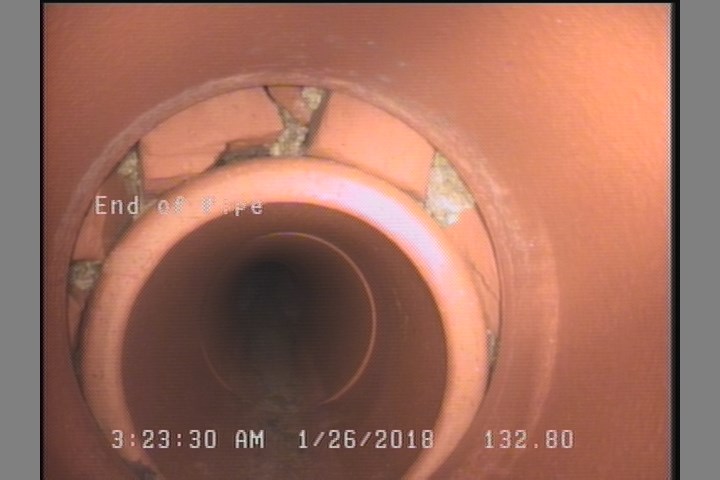

  • End of Pipe

    132.8 ft. - End of Pipe

All inspections of P24090Work order 1590881

Observations (14)

DistanceCodeObservation
46.9TFC—
3.1CM—
132.8AEP—
19.6TFC—
81.4HLOOKS LIKE IT MIGHT HAVE A REPAIR
0AMH29 0192
0MWM—
132.8CM—
43.6TFC—
86.3JOM—
6.1TFC—
6.7CM—
9.8TF—
0MWL—

Properties (5)

additional_info
SC347059
custom_field_two
2
customer
LACSD
datetime
2018-01-26T03:14:23-08:00
sewer_category
Gravity
