Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 09:52 AM

  • 29 0191_29 0190 _26012018_020805.mp4

Date
01/26/2018
W/O
1590881
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01025
PipeID
P24088
Time
1:52 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5424
Sewer Name
29 28TH STREET SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
02
Purpose
Routine Assessment
Project
WO_684841_TV29101_FEB2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0190
Downstream MH
29 0191
Dir. of Survey
Upstream
Length Surveyed
284.4 ft.
Total Length
284.4 ft.
Structural Index
3
Structural Quick
423E
Structural Rating
96
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
96
Pipe schematic from manhole 29 0190 to 29 0191
MH: 29 0190MH: 29 0191upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 01911.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish49.1 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"52 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"60 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start63.5 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES76.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"98.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"101 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"114.7 ft. FM - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES150 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"152.6 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"192 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish198.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"201.4 ft. JOM - Joint Offset Medium201.7 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"213.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"254.6 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"274.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start277 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES284.4 ft. MWL - Water Level, 5 %of cross sectional area284.4 ft. MWM - Water Mark, 5 %of cross sectional area284.4 ft. AMH - Downstream Manhole, Survey Begins - 29 0190

Observation photos (6)

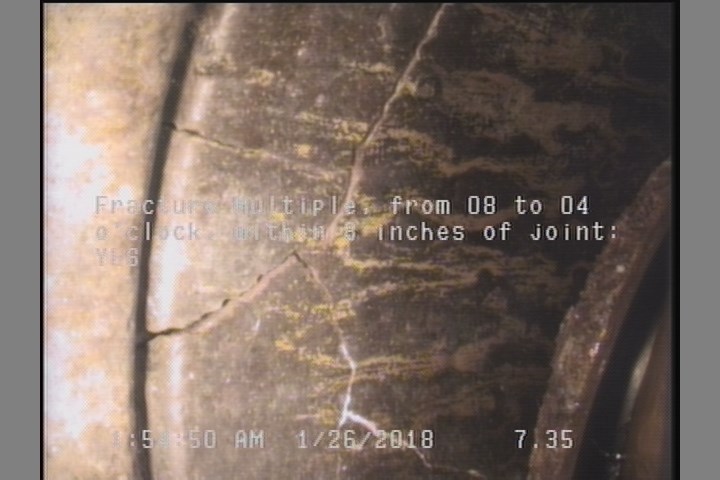

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    7.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

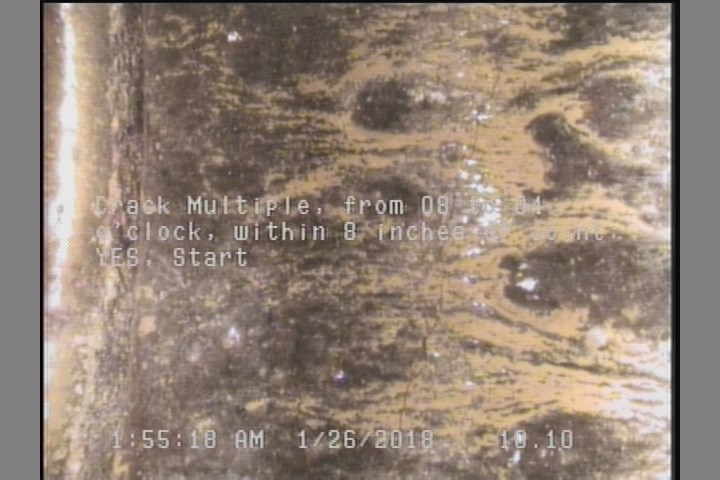

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    10.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

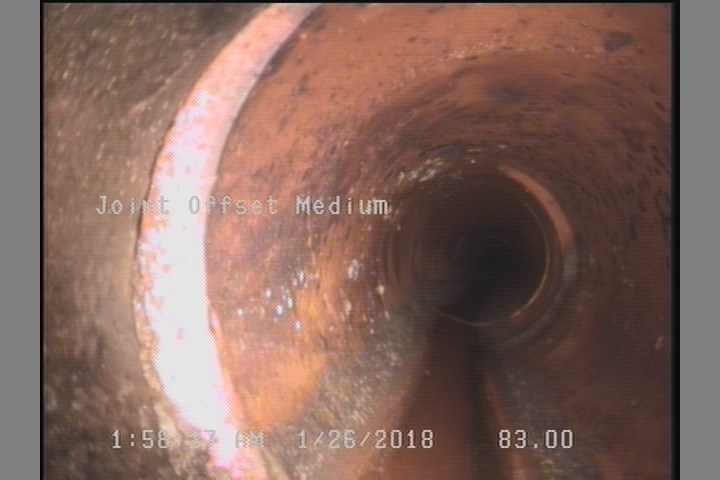

  • Joint Offset Medium

    83 ft. - Joint Offset Medium

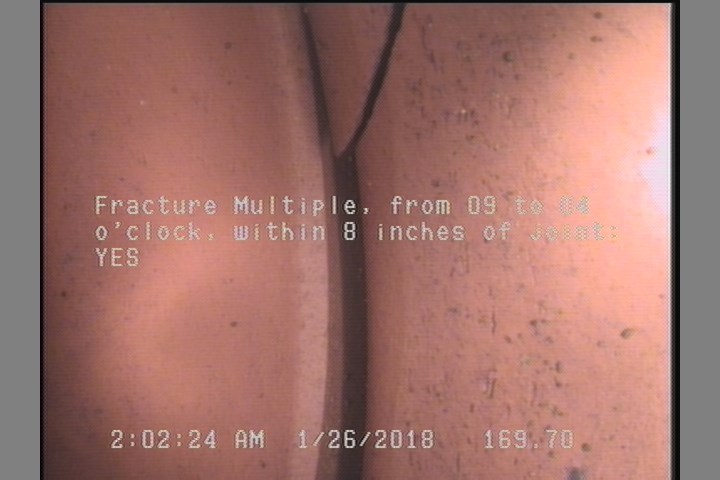

  • Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

    169.7 ft. - Fracture Multiple, from 09 to 04 o'clock, within 8 inches of joint: YES

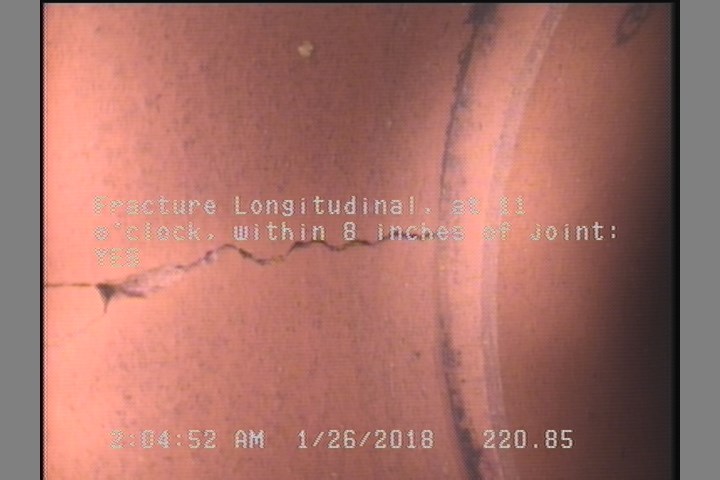

  • Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

    220.9 ft. - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES

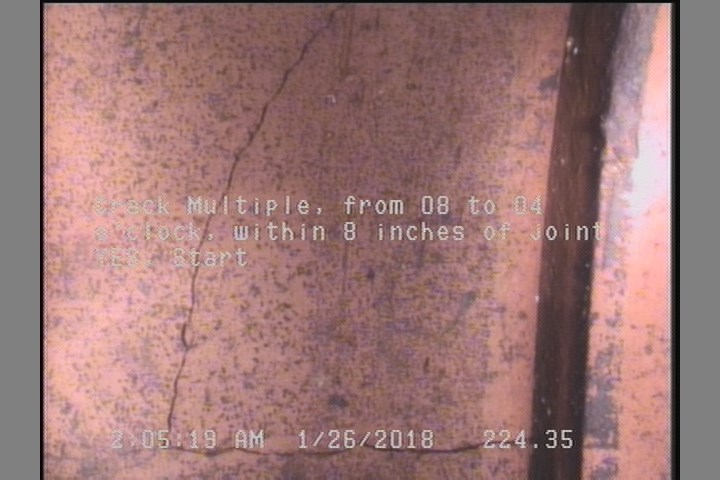

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    224.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P24088Work order 1590881

Observations (23)

DistanceCodeObservation
232.4TF—
0MWL—
82.7TFC—
220.9FL—
134.4TF—
86.2TF—
235.3TFC—
224.4CM—
10.1CM—
283.3CM—
0MWM—
284.4AMH29 0191
92.4CM—
7.4FM—
169.7FM—
208.2TFC—
83JOM—
29.8TFC—
0AMH29 0190
71.1TF—
183.4TF—
186.3TFC—
131.8TF—

Properties (5)

additional_info
SC347059
custom_field_two
3
customer
LACSD
datetime
2018-01-26T01:52:45-08:00
sewer_category
Gravity
