Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 25, 2018, 10:58 AM

  • 03 0234_03 0233A_25012018_030924.mp4

Date
01/25/2018
W/O
684824
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00385
PipeID
P04836
Time
2:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5421
Sewer Name
03 MARKET STREET TRUNK
City
LONG BEACH
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
06
Purpose
Routine Assessment
Project
WO_684824_TV03122_FEB2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
03 0234
Downstream MH
03 0233A
Dir. of Survey
Downstream
Length Surveyed
344.4 ft.
Total Length
344.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3H00
O&M Rating
141
Overall Index
3
Overall Quick
—
Overall Rating
141
Pipe schematic from manhole 03 0234 to 03 0233A
MH: 03 0234MH: 03 0233Adownstream0 ft. AMH - Upstream Manhole, Survey Begins - 03 02340 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. MWL - Water Level, 10 %of cross sectional area62.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"108.3 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"110.7 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start148.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"189.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"235.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"288.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"321.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"344.4 ft. AMH - Downstream Manhole, Survey Ends - 03 0233A344.4 ft. DSZ - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish

Observation photos (1)

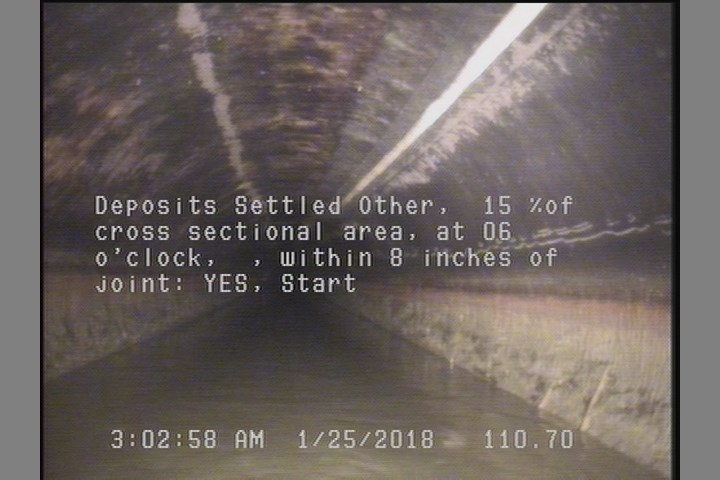

  • Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    110.7 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

All inspections of P04836Work order 684824

Observations (14)

DistanceCodeObservation
148.9TF—
110.7DSZ—
0AMH03 0234
344.4AMH03 0233A
321.1TF—
189.6TF—
235.8TF—
108.3TF—
0MWM—
0MGOCONNECTION AT MH 3 O'CLOCK
288.4TF—
0MWL—
344.4DSZ—
62.9TF—

Properties (6)

additional_info
SC347056
custom_field_two
4
customer
LACSD
datetime
2018-01-25T02:58:52-08:00
sewer_category
Gravity
year_laid
39082
