Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 06:48 AM
20 0132_20 0131 _25012018_232032.mp4
- Date
- 01/25/2018
- W/O
- 684819
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00744
- PipeID
- P19055
- Time
- 10:48 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5387
- Sewer Name
- 20 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_684819_TV20027_FEB2018
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 20 0131
- Downstream MH
- 20 0132
- Dir. of Survey
- Upstream
- Length Surveyed
- 382.2 ft.
- Total Length
- 382.2 ft.
- Structural Index
- 3
- Structural Quick
- 3N2N
- Structural Rating
- 380
- O&M Index
- 2
- O&M Quick
- 2N00
- O&M Rating
- 152
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 532
Observation photos (3)
2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

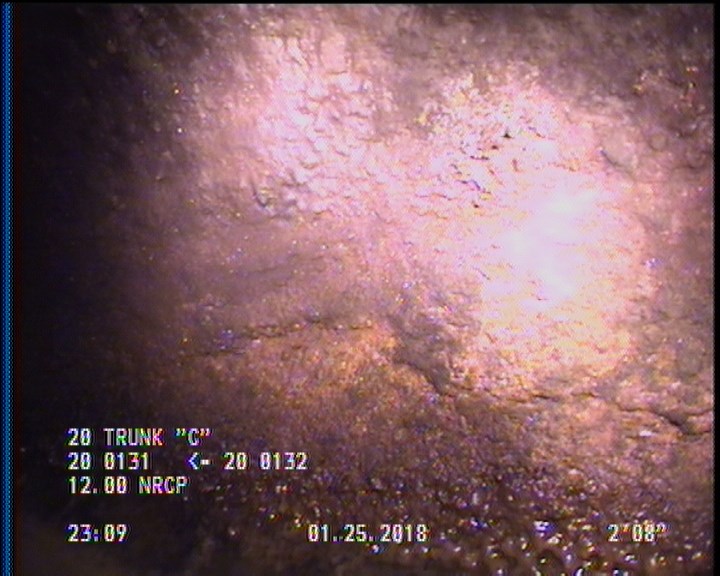

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

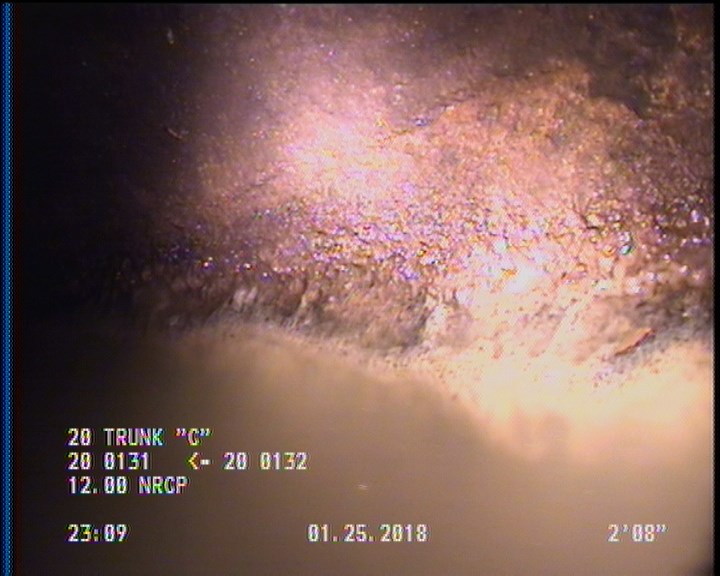

2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 20 0131 |
| 2 | SAP | — |
| 2 | SSS | — |
| 273.9 | TFC | — |
| 382.2 | AMH | 20 0132 |
| 77.3 | TFC | — |
| 0 | MWL | — |
| 73 | TFC | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | DAGS | — |
| 173.7 | TFC | — |
| 380.2 | SAP | — |
| 374.9 | TFC | — |
| 380.2 | SSS | — |
| 278 | TFC | — |
| 178.4 | TFC | — |
| 380.2 | DAGS | — |
Properties (5)
- additional_info
- SC346966
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-25T22:48:50-08:00
- sewer_category
- Gravity
