Wastewater/Activity/PacpInspection/1.0Jan 22, 2018, 12:59 PM
20 0116_20 0542_22012018_051458.mp4
- Date
- 01/22/2018
- W/O
- 684819
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00744
- PipeID
- P19039
- Time
- 4:59 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5381
- Sewer Name
- 20 TRUNK "C"
- City
- PALMDALE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 01
- Purpose
- Routine Assessment
- Project
- WO_684819_TV20027_FEB2018
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 20 0116
- Downstream MH
- 20 0542
- Dir. of Survey
- Downstream
- Length Surveyed
- 370.4 ft.
- Total Length
- 370.4 ft.
- Structural Index
- 3
- Structural Quick
- 3222
- Structural Rating
- 10
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 14
Observation photos (3)

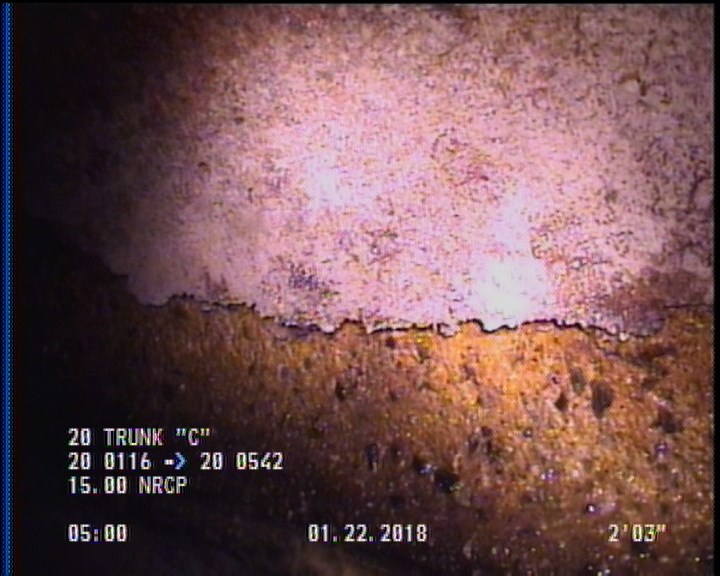

2 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

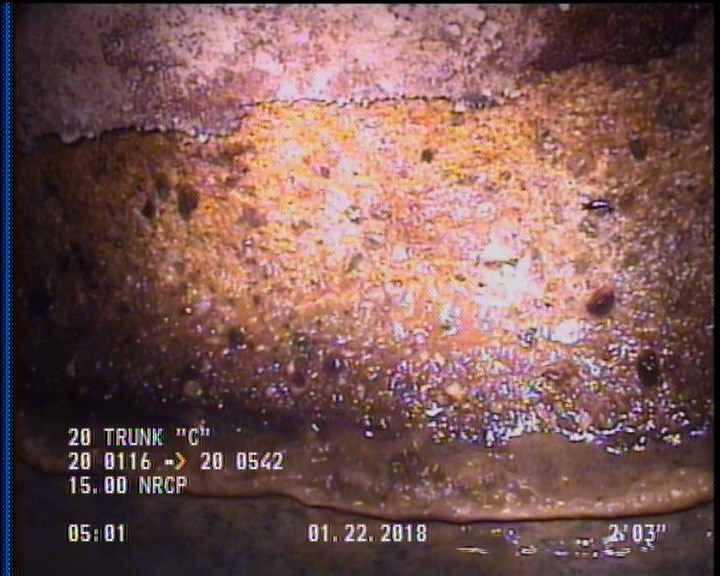

2 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

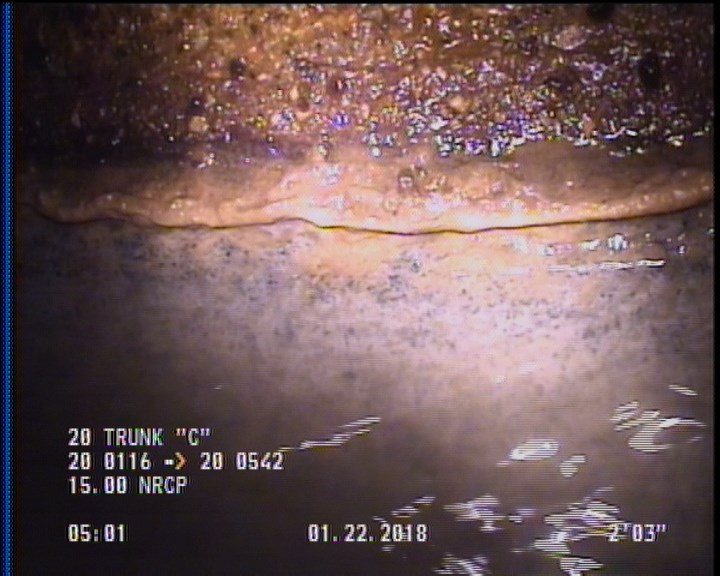

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | SSS | — |
| 0 | AMH | 20 0116 |
| 178 | TFC | — |
| 72.1 | TFC | — |
| 2 | SAP | — |
| 76.1 | TFC | — |
| 370.4 | SAP | — |
| 370.4 | SSS | — |
| 370.4 | DAGS | — |
| 173.7 | TFC | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 370.4 | AMH | 20 0542 |
| 279 | TFC | — |
| 262.7 | TFC | — |
Properties (5)
- additional_info
- SC346960
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-22T04:59:07-08:00
- sewer_category
- Gravity
