Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 23, 2018, 07:34 AM

  • 14 0509_14 0508_22012018_234626.mp4

Date
01/22/2018
W/O
682268
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00579
PipeID
P18600
Time
11:34 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5382
Sewer Name
14 TRUNK "C"
City
LANCASTER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
19
Purpose
Routine Assessment
Project
WO_682268_TV14021_JAN2018
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
14 0509
Downstream MH
14 0508
Dir. of Survey
Downstream
Length Surveyed
185.9 ft.
Total Length
185.9 ft.
Structural Index
3
Structural Quick
3F2F
Structural Rating
180
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
3
Overall Quick
—
Overall Rating
184
Pipe schematic from manhole 14 0509 to 14 0508
MH: 14 0509MH: 14 0508downstream0 ft. MWM - Water Mark, 60 %of cross sectional area0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 14 05092 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start7.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"27.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"51.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"76.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"104.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"129.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"153.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"178 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"183.8 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish183.8 ft. SAP - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish185.9 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK185.9 ft. AMH - Downstream Manhole, Survey Ends - 14 0508

Observation photos (2)

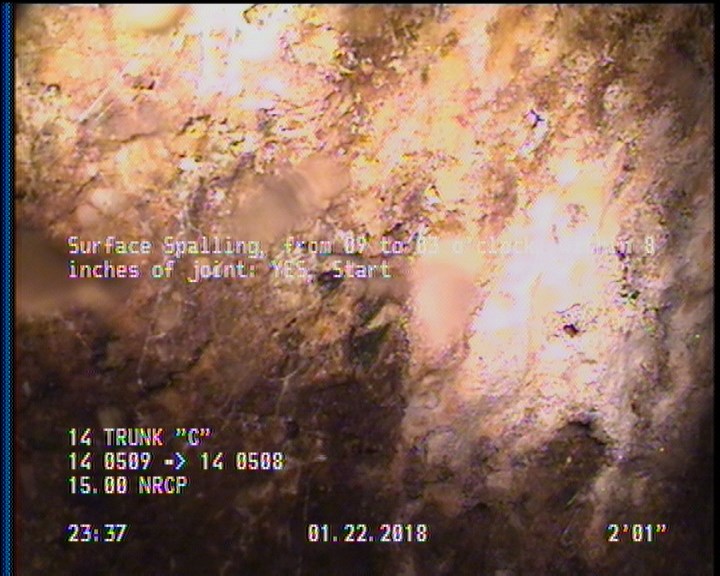

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

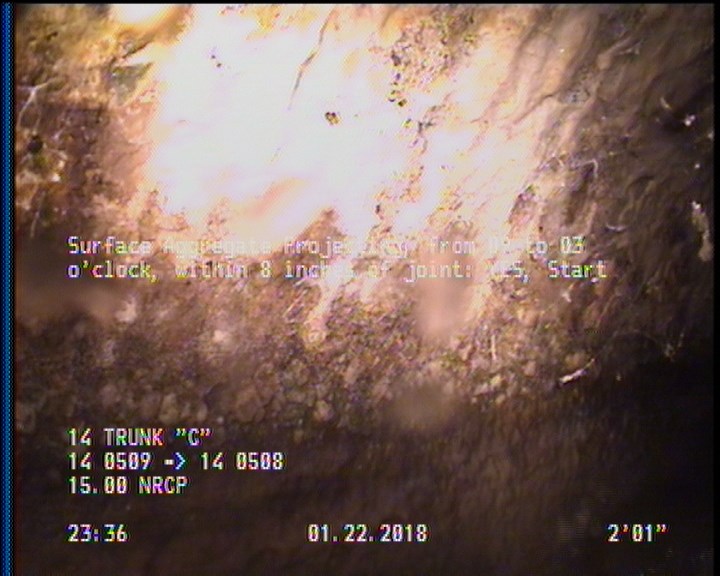

  • Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P18600Work order 682268

Observations (18)

DistanceCodeObservation
0MWM—
129.1TFC—
185.9MGOACTIVE CONNECTION AT MH 3 O'CLOCK
27.6TFC—
7.2TFC—
104.9TFC—
0MWL—
185.9AMH14 0508
183.8SSS—
0MGOACTIVE CONNECTION AT MH 9 O'CLOCK
76.1TFC—
2SSS—
178TFC—
2SAP—
0AMH14 0509
183.8SAP—
51.9TFC—
153.5TFC—

Properties (5)

additional_info
SC346961
custom_field_two
3
customer
LACSD
datetime
2018-01-22T23:34:57-08:00
sewer_category
Gravity
