Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 07:37 AM

  • 05 2289_05 2288 _01042018_233810.mp4

Date
01/04/2018
W/O
679437
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00429
PipeID
P07412
Time
11:37 PM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5366
Sewer Name
05 COLDEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_679437_TV05094_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2289
Downstream MH
05 2288
Dir. of Survey
Downstream
Length Surveyed
365.1 ft.
Total Length
365.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2M00
O&M Rating
142
Overall Index
2
Overall Quick
—
Overall Rating
142
Pipe schematic from manhole 05 2289 to 05 2288
MH: 05 2289MH: 05 2288downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 22890 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area5.6 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start27 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"65.8 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: YES, 6"104.5 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"118.2 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"184.4 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"224.7 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"266.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"305 ft. TF - Tap Factory Made, at 09 o'clock, -, within 8 inches of joint: NO, 6"345.6 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"363 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish365.1 ft. AMH - Downstream Manhole, Survey Ends - 05 2288

Observation photos (1)

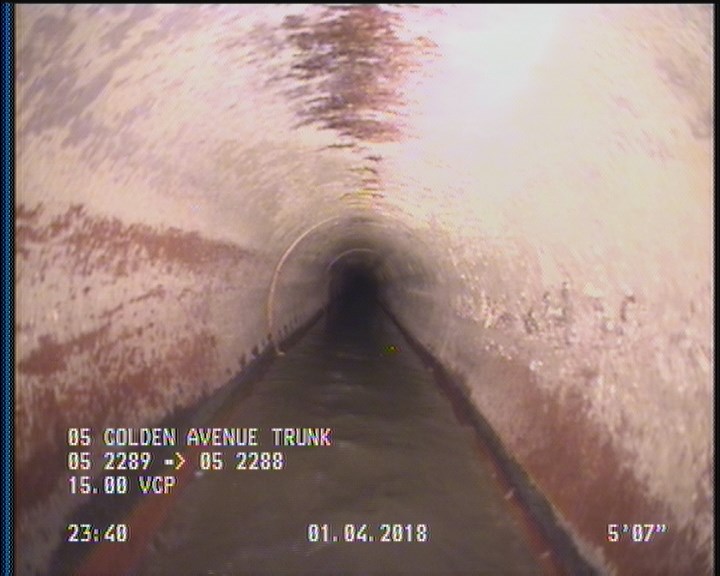

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    5.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07412Work order 679437

Observations (15)

DistanceCodeObservation
224.7TFA—
0AMH05 2289
363DAE—
0MWM—
65.8TFA—
104.5TFA—
184.4TFA—
365.1AMH05 2288
27TFA—
305TF—
5.6DAE—
266.1TFA—
0MWL—
345.6TFA—
118.2TFA—

Properties (6)

additional_info
SC346443
custom_field_two
4
customer
LACSD
datetime
2018-01-04T23:37:50-08:00
sewer_category
Gravity
year_laid
28956
