Wastewater/Activity/PacpInspection/1.0Dec 18, 2017, 10:35 PM
05 2279_05 2278 _01082018_031547.mp4
- Date
- 12/18/2017
- W/O
- 679437
- Weather
- Dry
- Operator/Surveyor
- S LOPEZ
- Sewer ID
- Z00429
- PipeID
- P07402
- Time
- 2:35 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5367
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_679437_TV05094_JAN2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2279
- Downstream MH
- 05 2278
- Dir. of Survey
- Downstream
- Length Surveyed
- 9.9 ft.
- Total Length
- 9.9 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (2)

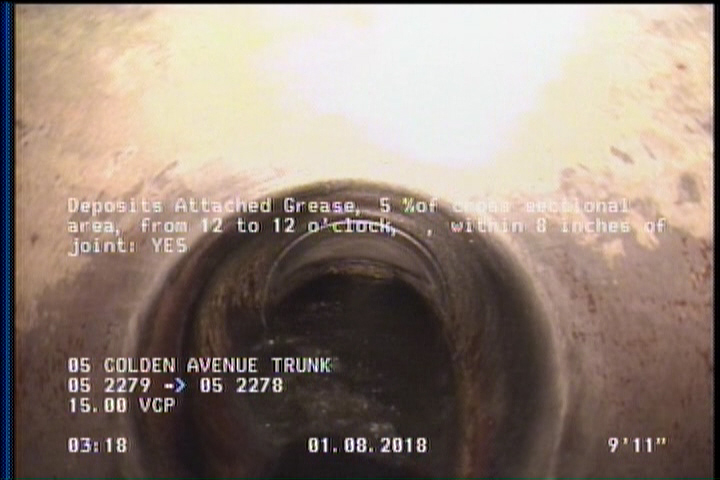

9.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 12 to 12 o'clock, , within 8 inches of joint: YES

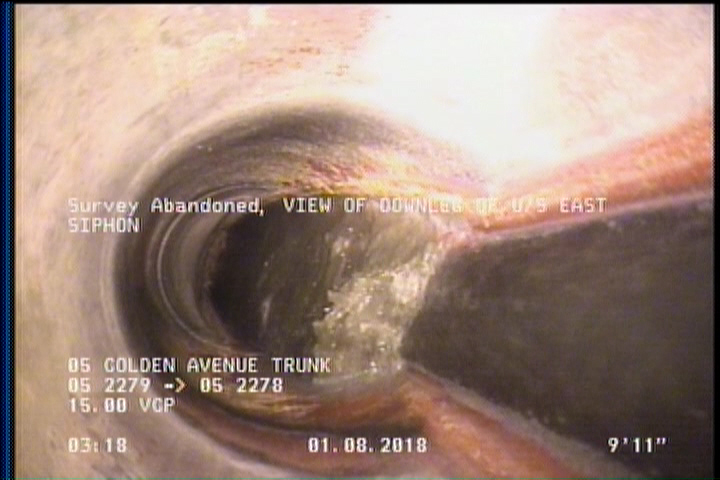

9.9 ft. - Survey Abandoned - VIEW OF DOWNLEG OF U/S EAST SIPHON
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 9.9 | MSA | VIEW OF DOWNLEG OF U/S EAST SIPHON |
| 9.1 | DAGS | — |
| 0 | MWM | — |
| 0 | AMH | 05 2279 E |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC346444
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-12-18T14:35:36-08:00
- sewer_category
- Siphon
- year_laid
- 28956
