Wastewater/Activity/PacpInspection/1.0Jan 4, 2018, 10:58 AM
05 2231_05 2297 _01042018_025934.mp4
- Date
- 01/04/2018
- W/O
- 679437
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00429
- PipeID
- P07421
- Time
- 2:58 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5365
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_679437_TV05094_JAN2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2297
- Downstream MH
- 05 2231
- Dir. of Survey
- Upstream
- Length Surveyed
- 293.9 ft.
- Total Length
- 293.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

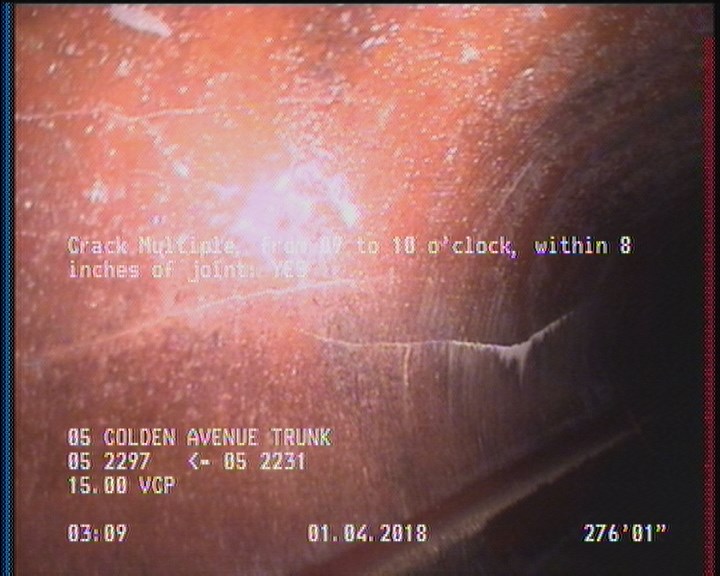

276.1 ft. - Crack Multiple, from 09 to 10 o'clock, within 8 inches of joint: YES

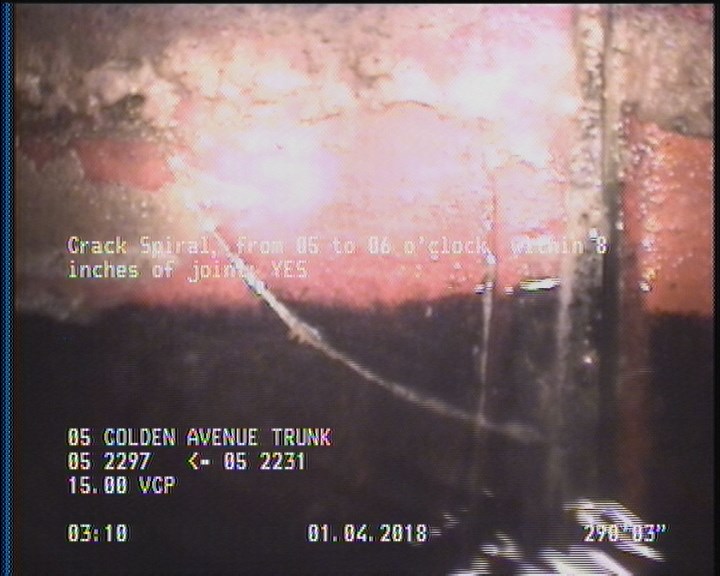

290.3 ft. - Crack Spiral, from 05 to 06 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 290.3 | CS | — |
| 0 | MWM | — |
| 276.1 | CM | — |
| 293.9 | AMH | 05 2231 |
| 0 | AMH | 05 2297 |
| 0 | MWL | — |
| 293.9 | MGO | ACTIVE CONNECTION AT MH 3 AND 9 O'CLOCK |
Properties (6)
- additional_info
- SC346442
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-04T02:58:45-08:00
- sewer_category
- Gravity
- year_laid
- 28956
