Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 07:22 AM
05 2290_05 2289 _01042018_232220.mp4
- Date
- 01/04/2018
- W/O
- 679437
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00429
- PipeID
- P07413
- Time
- 11:22 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5366
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- DISTRICT 05
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_679437_TV05094_JAN2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2290
- Downstream MH
- 05 2289
- Dir. of Survey
- Downstream
- Length Surveyed
- 346 ft.
- Total Length
- 346 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2M00
- O&M Rating
- 144
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 151
Observation photos (4)

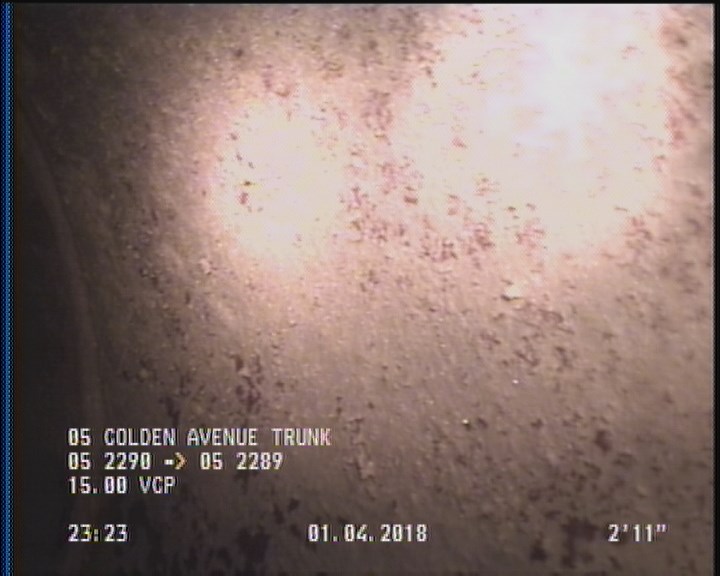

2 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

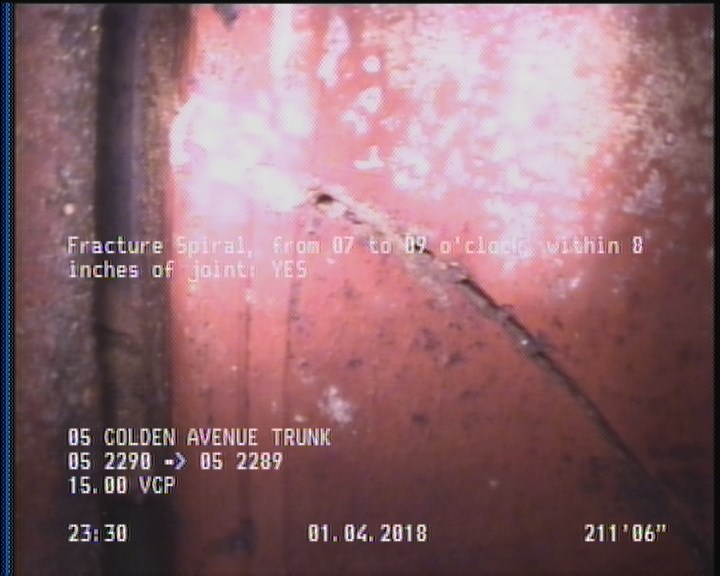

211.5 ft. - Fracture Spiral, from 07 to 09 o'clock, within 8 inches of joint: YES

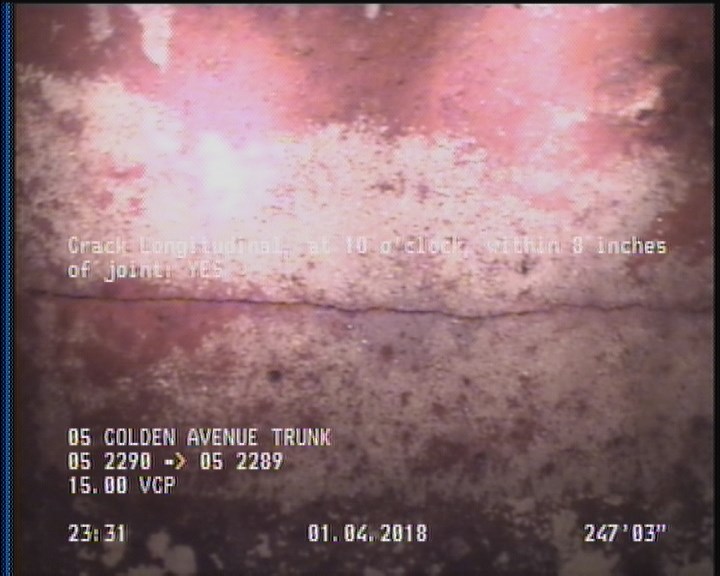

247.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

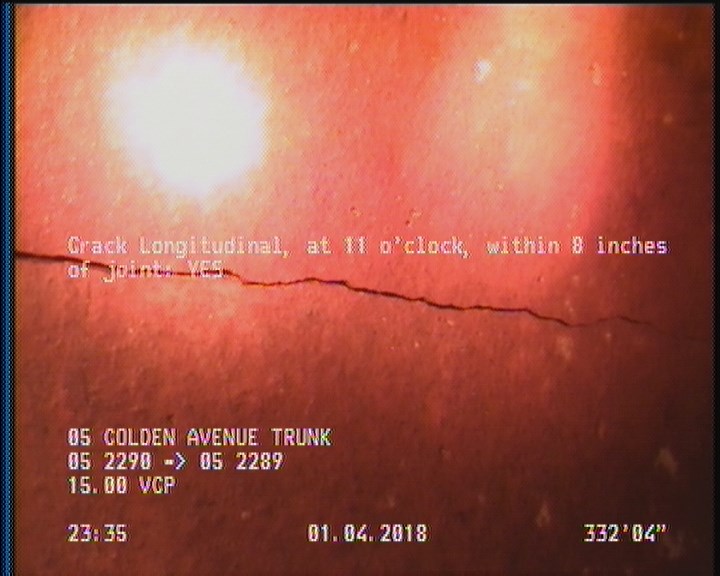

332.3 ft. - Crack Longitudinal, at 11 o'clock, within 8 inches of joint: YES
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 247.2 | CL | — |
| 102.4 | TFA | — |
| 19.6 | TFA | — |
| 343.1 | DSZ | — |
| 346 | AMH | 05 2289 |
| 61.7 | TFA | — |
| 326.1 | DSZ | DEBRIS |
| 0 | MWM | — |
| 332.3 | CL | — |
| 0 | AMH | 05 2290 |
| 211.5 | FS | — |
| 141.3 | TFA | — |
| 346 | DAE | — |
| 2 | DAE | — |
Properties (6)
- additional_info
- SC346443
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-04T23:22:00-08:00
- sewer_category
- Gravity
- year_laid
- 28956
