Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 12:22 PM

  • 05 2295_05 2294 _01102018_035016.mp4

Date
01/05/2018
W/O
679437
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00429
PipeID
P07418
Time
4:22 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5369
Sewer Name
05 COLDEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
09
Purpose
Routine Assessment
Project
WO_679437_TV05094_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2295
Downstream MH
05 2294
Dir. of Survey
Downstream
Length Surveyed
503 ft.
Total Length
503.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2L00
O&M Rating
134
Overall Index
2
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 05 2295 to 05 2294
MH: 05 2295MH: 05 2294downstream0 ft. AMH - Upstream Manhole, Survey Begins - 05 22950 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area154 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"168.1 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start190.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"231 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"271.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"315 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"353.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6", 6"394.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"435.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"472.1 ft. TFA - Tap Factory Made Active, at 09 o'clock, -, within 8 inches of joint: NO, 6"501 ft. DAE - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Finish503.1 ft. AMH - Downstream Manhole, Survey Ends - 05 2294

Observation photos (1)

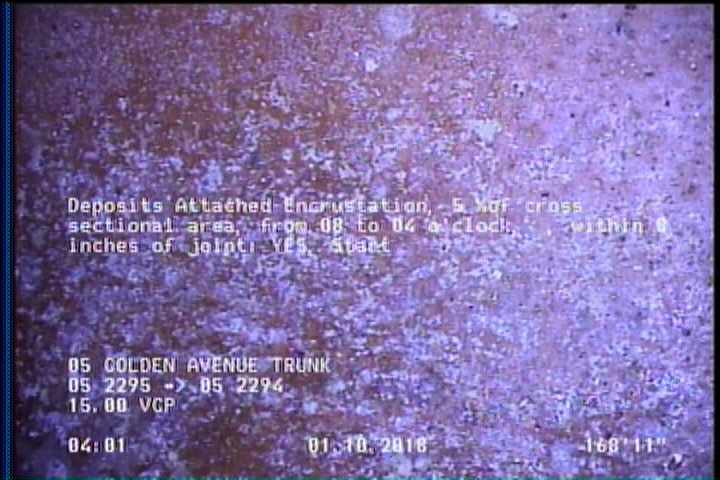

  • Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

    168.1 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

All inspections of P07418Work order 679437

Observations (15)

DistanceCodeObservation
271.1TFA—
154TFA—
394.1TFA—
0AMH05 2295
435.1TFA—
168.1DAE—
353.1TFA—
190.1TFA—
472.1TFA—
0MWL—
315TFA—
0MWM—
231TFA—
501DAE—
503.1AMH05 2294

Properties (6)

additional_info
SC346446
custom_field_two
4
customer
LACSD
datetime
2018-01-05T04:22:08-08:00
sewer_category
Gravity
year_laid
28956
