Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 2, 2018, 10:46 AM

  • 03 0056_03 0551_222018_025513.mp4

Date
02/02/2018
W/O
0688149
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00366
PipeID
P05077
Time
2:46 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0732
Sewer Name
03 LOS COYOTES DIAGONAL TRUNK
City
LAKEWOOD
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
09
Purpose
Maintenance Related
Project
20180202MDM_LOS_COYOTES_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Upstream MH
03 0056
Downstream MH
03 0551
Dir. of Survey
Downstream
Length Surveyed
8.8 ft.
Total Length
8.8 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 03 0056 to 03 0551
MH: 03 0056MH: 03 0551downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 2:50AM0.1 ft. DAE - Deposits Attached Encrustation, 20 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO8.1 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active8.8 ft. AMH - Downstream Manhole, Survey Ends - 2:55AM

Observation photos (1)

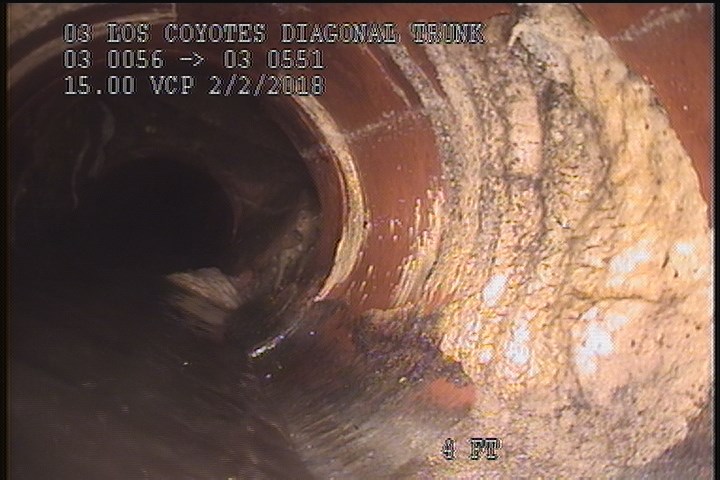

  • Deposits Attached Encrustation, 20 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

    0.1 ft. - Deposits Attached Encrustation, 20 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO

All inspections of P05077Work order 0688149

Observations (7)

DistanceCodeObservation
0MWM—
8.8AMH2:55AM
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
0.1DAE—
8.1MGOConn. @ Mh, 3 O' Clock. Active
0AMH2:50AM

Properties (3)

additional_info
CALCIUM ONLY
customer
LACSD
datetime
2018-02-02T02:46:33-08:00
