Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 9, 2018, 10:38 AM

  • 22 0267_22 0266_09012018_023824.mp4

Date
01/09/2018
W/O
679393
Weather
Light Rain
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16550
Time
2:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5408
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_679393_TV22016_JAN2018
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0267
Downstream MH
22 0266
Dir. of Survey
Downstream
Length Surveyed
437.6 ft.
Total Length
437.6 ft.
Structural Index
3
Structural Quick
3P00
Structural Rating
261
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
261
Pipe schematic from manhole 22 0267 to 22 0266
MH: 22 0267MH: 22 0266downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02670 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area4.2 ft. MGO - General Observation - MAG COAT4.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start9.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"58.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"63.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"108.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"111.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"159.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"213.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"258 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"266 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"268.9 ft. B - Broken, at 01 o'clock, within 8 inches of joint: YES299.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"327.1 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"384.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"400.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"429.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"435.4 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish437.6 ft. AMH - Downstream Manhole, Survey Ends - 22 0266

Observation photos (2)

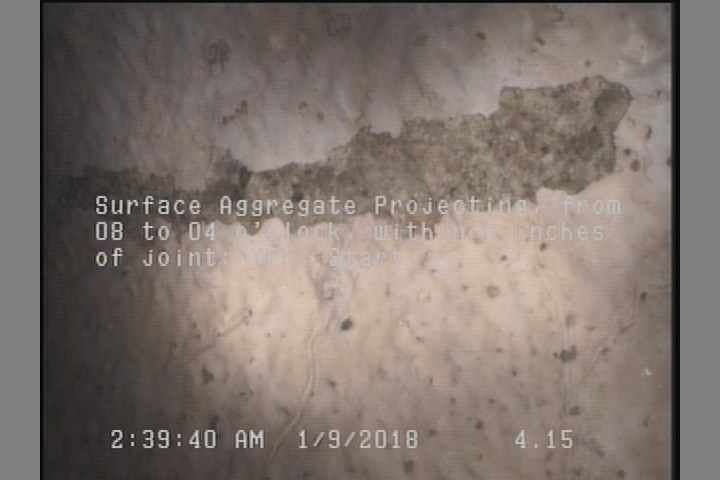

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4.2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

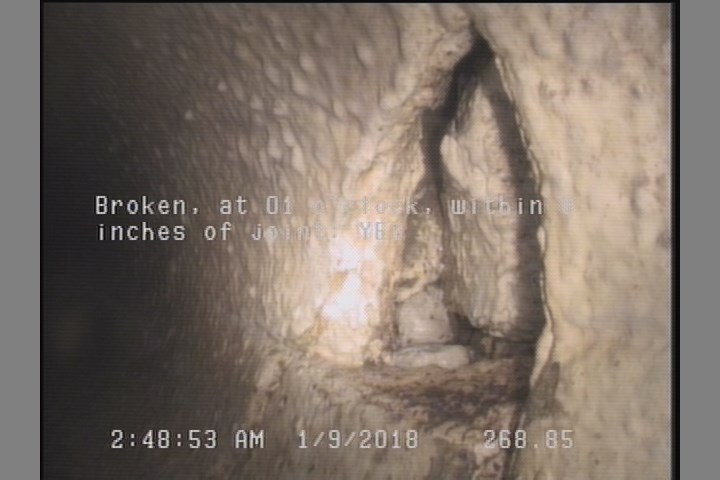

  • Broken, at 01 o'clock, within 8 inches of joint: YES

    268.9 ft. - Broken, at 01 o'clock, within 8 inches of joint: YES

All inspections of P16550Work order 679393

Observations (22)

DistanceCodeObservation
4.2MGOMAG COAT
159.9TFC—
108.6TF—
111.1TFC—
327.1TFC—
435.4SAP—
0AMH22 0267
429.2TFC—
400.6TF—
437.6AMH22 0266
0MWL—
0MWM—
268.9B—
258TF—
9.5TFC—
266TFC—
4.2SAP—
58.9TFC—
299.5TF—
213.1TFC—
384.7TFC—
63.1TF—

Properties (5)

additional_info
SC346782
custom_field_two
1
customer
LACSD
datetime
2018-01-09T02:38:00-08:00
sewer_category
Gravity
