Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 10, 2018, 10:47 AM

  • 22 0252_22 0251_10012018_024755.mp4

Date
01/10/2018
W/O
679393
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16534
Time
2:47 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5409
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
36
Purpose
Routine Assessment
Project
WO_679393_TV22016_JAN2018
Material
NRCP
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
22 0252
Downstream MH
22 0251
Dir. of Survey
Downstream
Length Surveyed
323.1 ft.
Total Length
323.2 ft.
Structural Index
3
Structural Quick
3L00
Structural Rating
192
O&M Index
1
O&M Quick
4131
O&M Rating
54
Overall Index
2
Overall Quick
—
Overall Rating
246
Pipe schematic from manhole 22 0252 to 22 0251
MH: 22 0252MH: 22 0251downstream0 ft. AMH - Upstream Manhole, Survey Begins - 22 02520 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK2.6 ft. MGO - General Observation - MAG COAT2.6 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start30.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"79.3 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES85.6 ft. RFJ - Roots Fine Joint, from 10 to 03 o'clock, within 8 inches of joint: YES97.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"101.9 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start127.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"127.9 ft. RFC - Roots Fine Connection, at 02 o'clock146.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"197.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"252.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"256 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"292 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"323.2 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish323.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK323.2 ft. RFJ - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish323.2 ft. AMH - Downstream Manhole, Survey Ends - 22 0251

Observation photos (4)

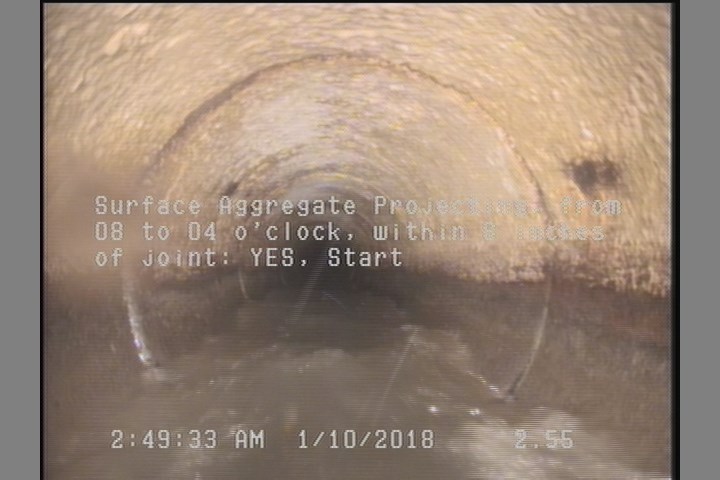

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

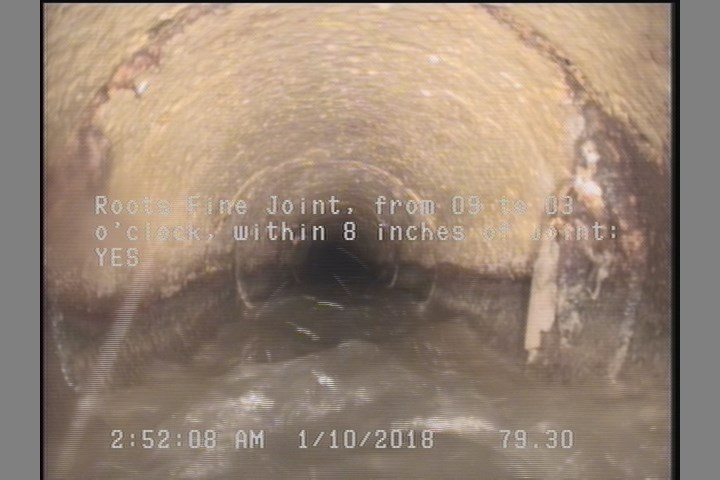

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

    79.3 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES

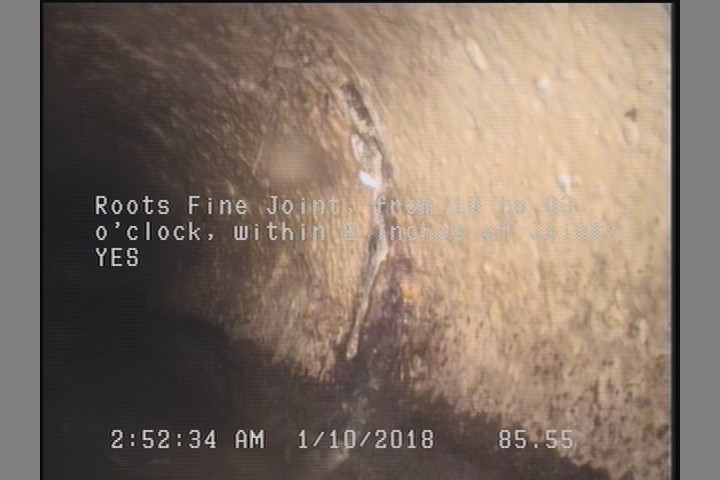

  • Roots Fine Joint, from 10 to 03 o'clock, within 8 inches of joint: YES

    85.6 ft. - Roots Fine Joint, from 10 to 03 o'clock, within 8 inches of joint: YES

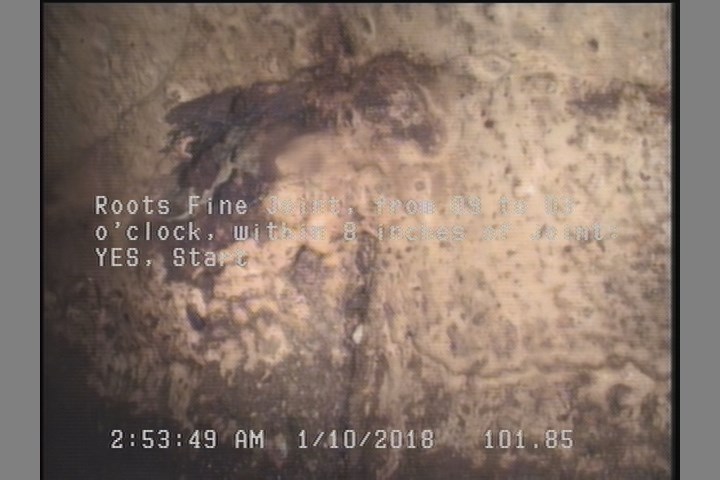

  • Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    101.9 ft. - Roots Fine Joint, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P16534Work order 679393

Observations (22)

DistanceCodeObservation
30.5TF—
2.6MGOMAG COAT
127.9TF—
79.3RFJ—
127.9RFC—
0AMH22 0252
0MWL—
101.9RFJ—
146.1TFC—
292TFC—
323.2SAP—
323.2MGOCONNECTION AT MH 3 O'CLOCK
2.6SAP—
252.6TF—
256TF—
323.2RFJ—
85.6RFJ—
197.8TF—
0MWM—
323.2AMH22 0251
97.6TF—
0MGOCONNECTION AT MH 3 O'CLOCK

Properties (5)

additional_info
SC346783
custom_field_two
3
customer
LACSD
datetime
2018-01-10T02:47:42-08:00
sewer_category
Gravity
