Wastewater/Activity/PacpInspection/1.0Jan 19, 2018, 06:26 AM
C 0487_C 0486_01182018_222703.mp4
- Date
- 01/18/2018
- W/O
- 679421
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00132
- PipeID
- P09737
- Time
- 10:26 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5378
- Sewer Name
- C JOINT OUTFALL C - UNIT 6C RENOVATION
- City
- LAKEWOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 13
- Purpose
- Routine Assessment
- Project
- WO_679421_TV03155_JAN2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- C 0487
- Downstream MH
- C 0486
- Dir. of Survey
- Downstream
- Length Surveyed
- 64.9 ft.
- Total Length
- 64.9 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2800
- O&M Rating
- 16
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 24
Observation photos (2)

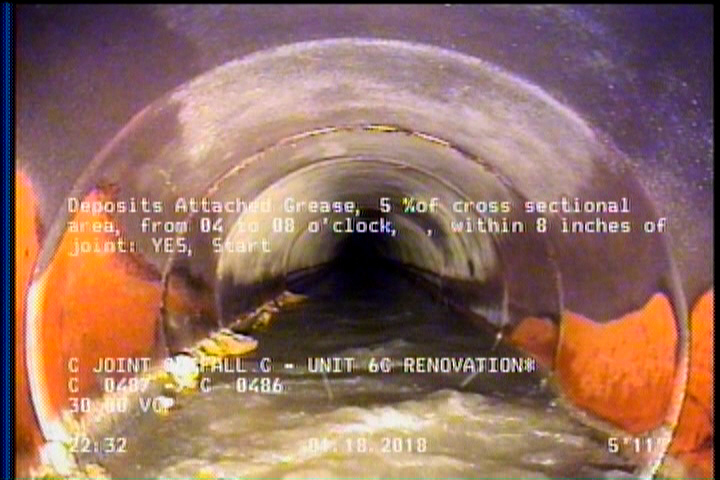

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

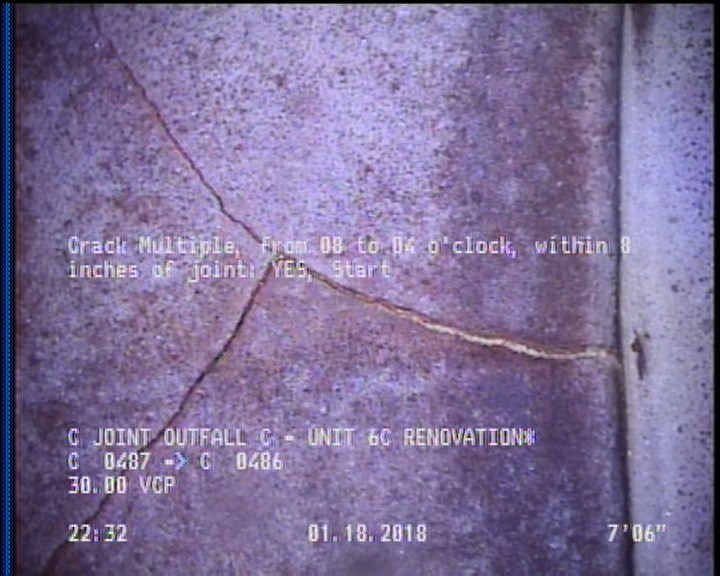

7.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 63.4 | DAGS | — |
| 0 | MWL | — |
| 29.4 | CM | — |
| 0 | MWM | — |
| 33.1 | DSZ | DEBRIS |
| 2 | DAGS | — |
| 64.9 | AMH | C 0486 |
| 60 | SSS | — |
| 7.5 | CM | — |
| 63.4 | DSZ | — |
| 0 | AMH | C 0487 |
Properties (6)
- additional_info
- SC346957
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-18T22:26:33-08:00
- sewer_category
- Gravity
- year_laid
- 33064
