Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 12:12 PM
22 0291_22 0290_08012018_041242.mp4
- Date
- 01/08/2018
- W/O
- 679260
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00793
- PipeID
- P16577
- Time
- 4:12 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5406
- Sewer Name
- 22 CAMERON TRUNK, SECTS 1,2,&3
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_679260_TV22014_JAN2018
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 22 0291
- Downstream MH
- 22 0290
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.7 ft.
- Total Length
- 88.7 ft.
- Structural Index
- 3
- Structural Quick
- 3B2B
- Structural Rating
- 85
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 85
Observation photos (2)

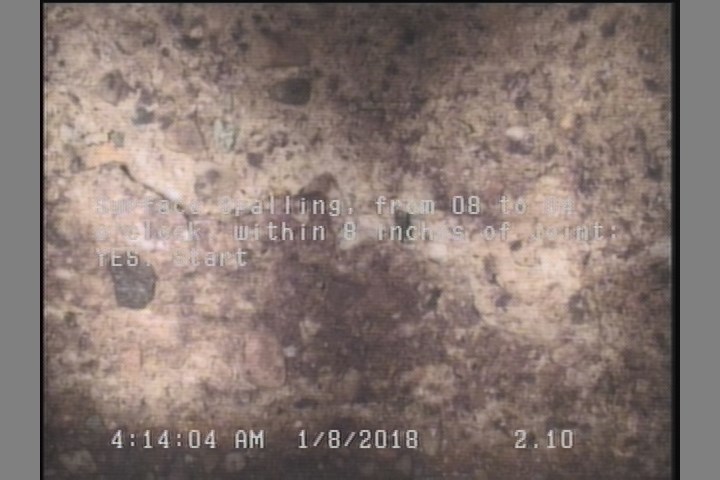

2.1 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

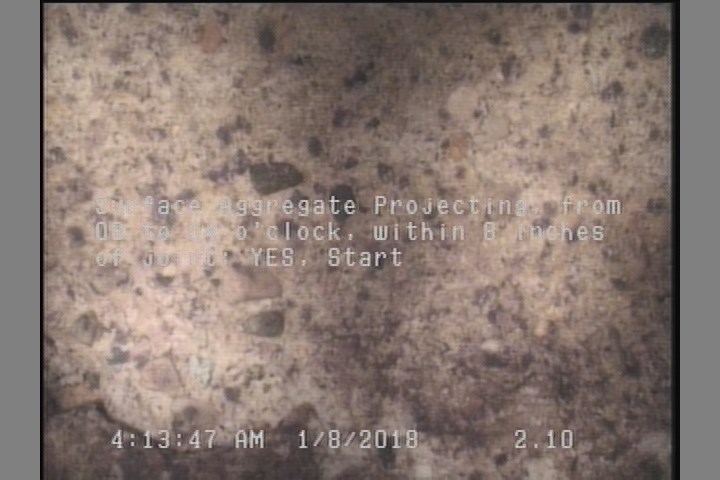

2.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SSS | — |
| 86.9 | SSS | — |
| 88.7 | AMH | 22 0290 |
| 86.9 | SAP | — |
| 2.1 | SAP | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 88.7 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | AMH | 22 0291 |
Properties (4)
- additional_info
- SC346780
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-01-08T04:12:17-08:00
