Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 8, 2018, 10:42 AM

  • 22 0295_22 0294_08012018_024227.mp4

Date
01/08/2018
W/O
679260
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00793
PipeID
P16581
Time
2:42 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5406
Sewer Name
22 CAMERON TRUNK, SECTS 1,2,&3
City
WEST COVINA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
32
Purpose
Routine Assessment
Project
WO_679260_TV22014_JAN2018
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
22 0295
Downstream MH
22 0294
Dir. of Survey
Downstream
Length Surveyed
361 ft.
Total Length
361.1 ft.
Structural Index
3
Structural Quick
3M2M
Structural Rating
355
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
355
Pipe schematic from manhole 22 0295 to 22 0294
MH: 22 0295MH: 22 0294downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 22 02950 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK2.4 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start3.5 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start26.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"67.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"117 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"149 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"234.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"292.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"359.8 ft. SSS - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish359.8 ft. SAP - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish361.1 ft. AMH - Downstream Manhole, Survey Ends - 22 0294361.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

  • Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.4 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

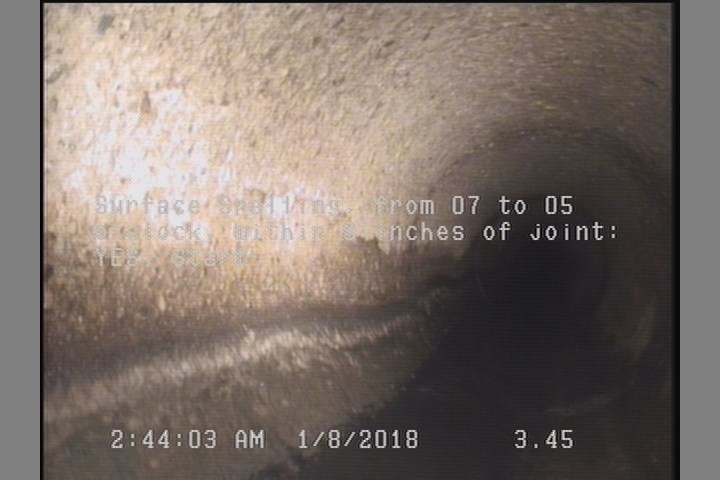

  • Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    3.5 ft. - Surface Spalling, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

All inspections of P16581Work order 679260

Observations (16)

DistanceCodeObservation
0MWM—
0MWL—
67.1TFC—
117TF—
3.5SSS—
359.8SSS—
234.5TF—
0AMH22 0295
0MGOCONNECTION AT MH 3 O'CLOCK
149TF—
359.8SAP—
361.1AMH22 0294
292.2TF—
361.1MGOCONNECTION AT MH 3 O'CLOCK
2.4SAP—
26.9TF—

Properties (4)

additional_info
SC346780
custom_field_two
2
customer
LACSD
datetime
2018-01-08T02:42:11-08:00
