Wastewater/Activity/PacpInspection/1.0Nov 13, 2017, 03:44 PM
A 0421_A 0420_13112017_094214.mpg
- Date
- 11/13/2017
- W/O
- 668747
- Weather
- Dry
- Operator/Surveyor
- E RUIZ
- Sewer ID
- Z00322
- PipeID
- P08081
- Time
- 7:44 AM
- Certificate
- 123456
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K5134
- Sewer Name
- A JOA-1A LONG BEACH WRP SLUDGE GRAVITY SEWER
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 19
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_668747_TV19010_NOV2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- A 0421
- Downstream MH
- A 0420
- Dir. of Survey
- Downstream
- Length Surveyed
- 165.6 ft.
- Total Length
- 165.6 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 4131
- O&M Rating
- 9
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

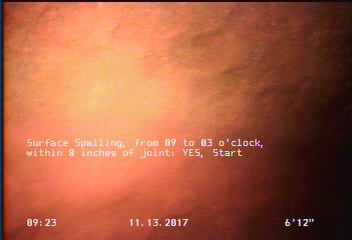

7 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

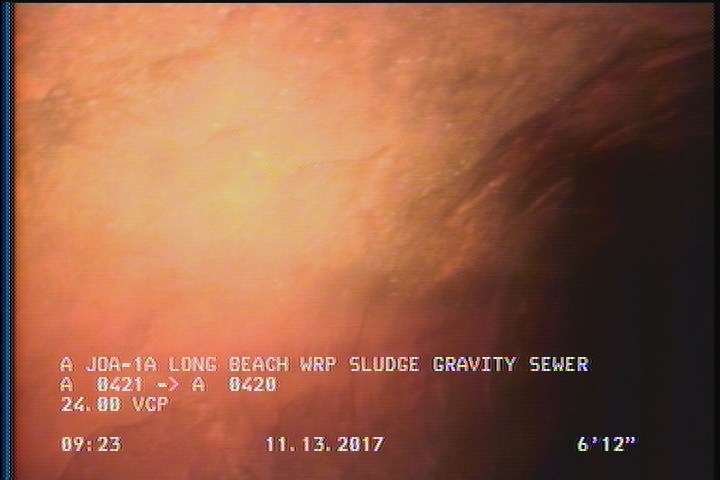

19.5 ft. - Obstacles Other, 20 %of cross sectional area, from 04 to 08 o'clock, Start - UNKNOWN DEBRIS

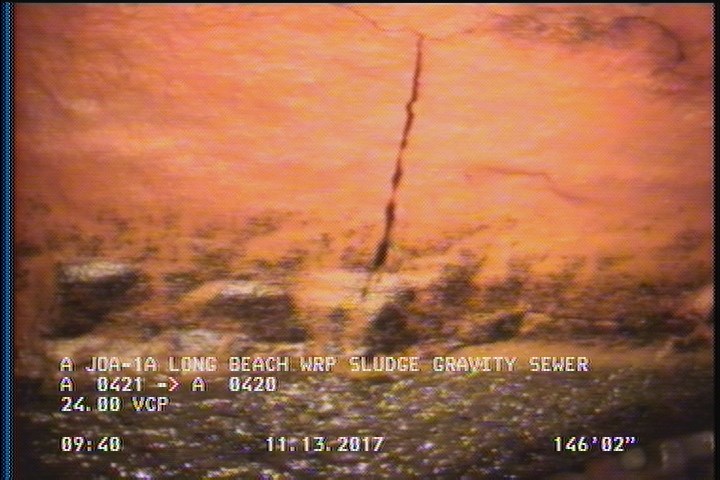

146.2 ft. - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 7 | SSS | — |
| 0 | AMH | A 0421 |
| 163.1 | RFB | — |
| 19.5 | OBZ | UNKNOWN DEBRIS |
| 0 | MWM | — |
| 165.6 | AMH | A 0420 |
| 146.2 | FC | — |
| 163.1 | OBZ | — |
| 163.1 | SSS | — |
| 0 | MWL | — |
| 35.3 | RFB | ROOTS |
Properties (4)
- additional_info
- SC348342
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-11-13T07:44:34-08:00
