Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 31, 2018, 12:55 PM

  • Section#10_01 0958_01 0957__1312018__G6941.mp4

Date
01/31/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01795
Time
4:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6941
Sewer Name
01 WRIGHT ROAD TRUNK
City
BELL
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180127MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0958
Downstream MH
01 0957
Dir. of Survey
Downstream
Length Surveyed
305.2 ft.
Total Length
305.2 ft.
Structural Index
3
Structural Quick
3C21
Structural Rating
56
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
56
Pipe schematic from manhole 01 0958 to 01 0957
MH: 01 0958MH: 01 0957downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 5:00AM23.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE34.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE52.3 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT57 ft. MGO - General Observation - 12:00 SLIGHT FRACTURE85.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT167.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT190.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT234.4 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE252.5 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H269.7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H273.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - H293.1 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - H305.2 ft. AMH - Downstream Manhole, Survey Ends - 5:30AM

Observation photos (5)

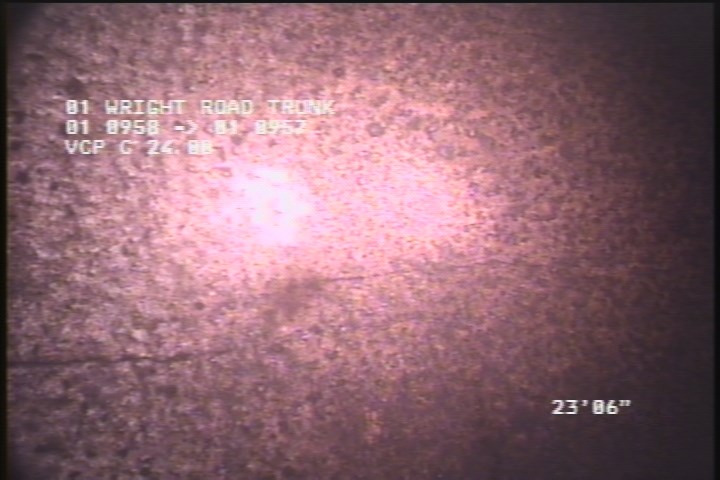

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    23.5 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

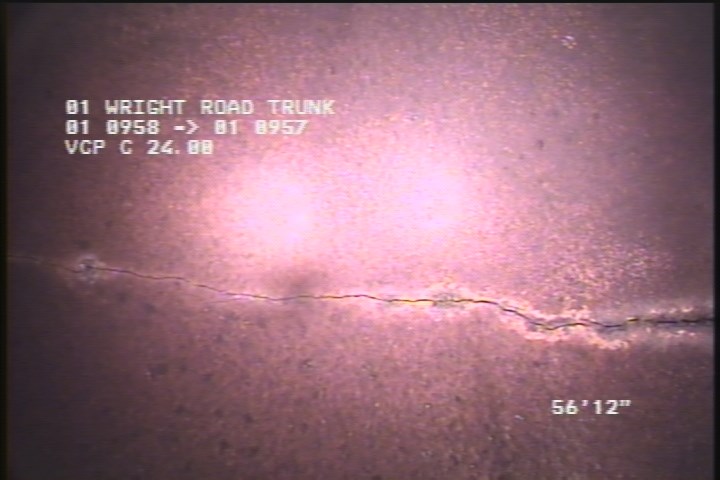

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    52.3 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

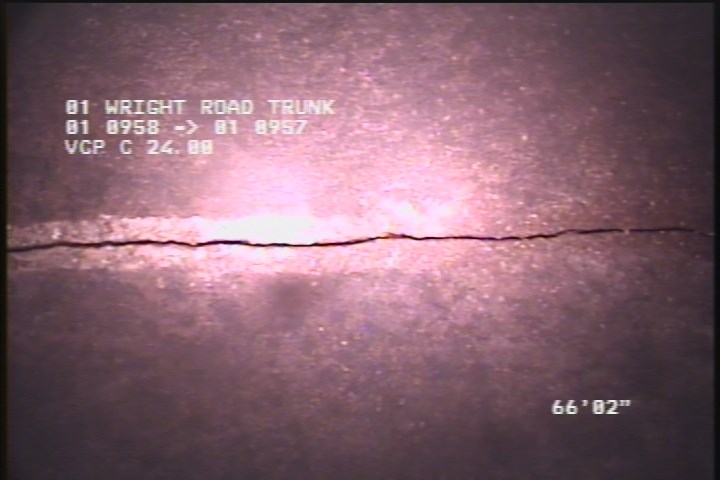

  • General Observation - 12:00 SLIGHT FRACTURE

    57 ft. - General Observation - 12:00 SLIGHT FRACTURE

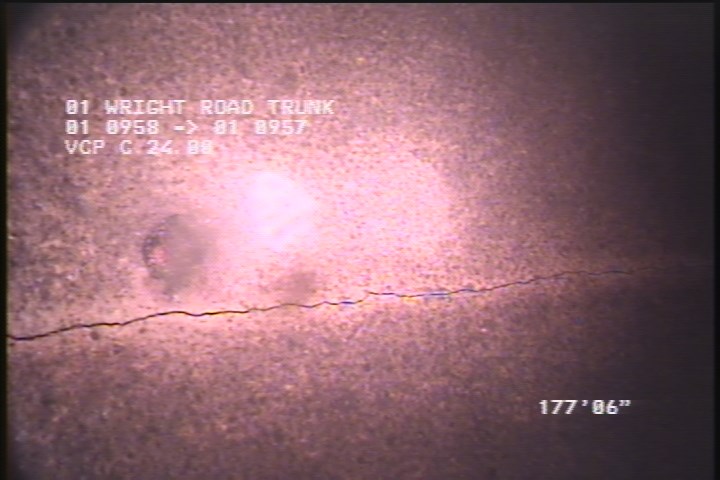

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    167.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

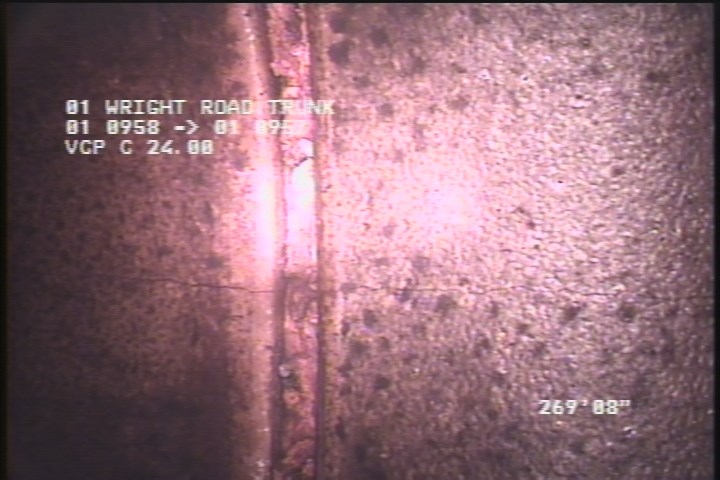

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

    269.7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - H

All inspections of P01795Work order 0686794

Observations (16)

DistanceCodeObservation
52.3FLSLIGHT
273.9FLH
167.2FLSLIGHT
0MWL—
23.5FLHAIRLINE
234.4FLHAIRLINE
34.1FLHAIRLINE
252.5FLH
293.1FCH
0MWM—
190.1FLSLIGHT
57MGO12:00 SLIGHT FRACTURE
0AMH5:00AM
85.5FLSLIGHT
305.2AMH5:30AM
269.7FLH

Properties (4)

custom_field_three
SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-01-31T04:55:44-08:00
