Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:24 AM

  • Section#5_01 0948_01 0947__1302018__G6939.mp4

Date
01/30/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01785
Time
1:24 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6939
Sewer Name
01 WRIGHT ROAD TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180127MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0948
Downstream MH
01 0947
Dir. of Survey
Downstream
Length Surveyed
286.9 ft.
Total Length
286.9 ft.
Structural Index
3
Structural Quick
3_2V
Structural Rating
709
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
709
Pipe schematic from manhole 01 0948 to 01 0947
MH: 01 0948MH: 01 0947downstream0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 330AM0 ft. MWM - Water Mark, 20 %of cross sectional area2.4 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SLIGHT2.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT5.7 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL8 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL8 ft. MGO - General Observation - 24" VCP8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL10.8 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL10.8 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL13.4 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL16 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL16 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL21.5 ft. FC - Fracture Circumferential, from 11 to 12 o'clock, within 8 inches of joint: YES - SL21.5 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL26.3 ft. FC - Fracture Circumferential, from 12 to 01 o'clock, within 8 inches of joint: YES - SL31.7 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS31.7 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS31.7 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL31.7 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS31.7 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL31.7 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS31.7 ft. MWL - Water Level, 50 %of cross sectional area66.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT66.2 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT174.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE174.9 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT286.1 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Finish - 10% HAIRLINE AT JOINTS286.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - HAIRLINE286.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 40% HAIRLINE AT JOINTS286.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 70% SLIGHT AT JOINTS286.1 ft. FL - Fracture Longitudinal, at 08 TO 04o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT AT JOINTS286.9 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (5)

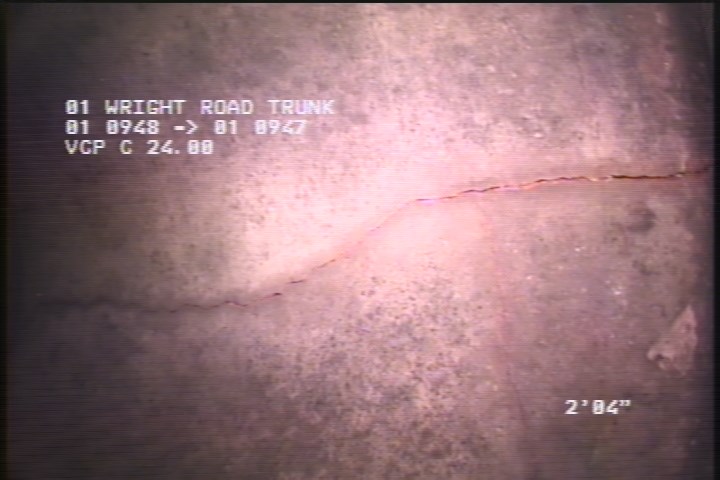

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    2.4 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

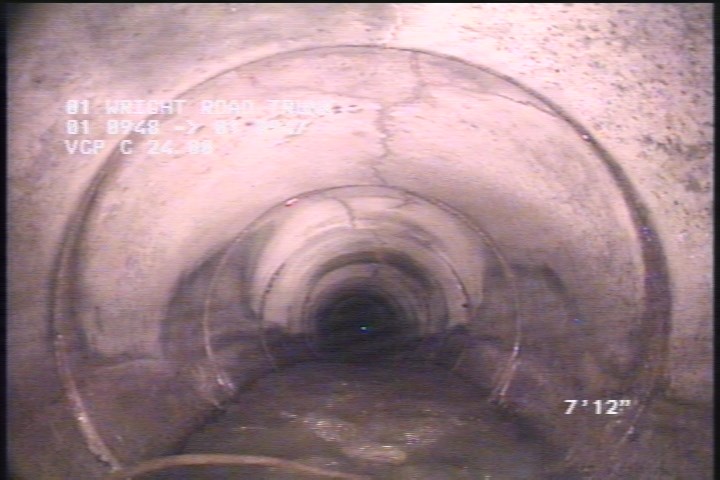

  • General Observation - 24" VCP

    8 ft. - General Observation - 24" VCP

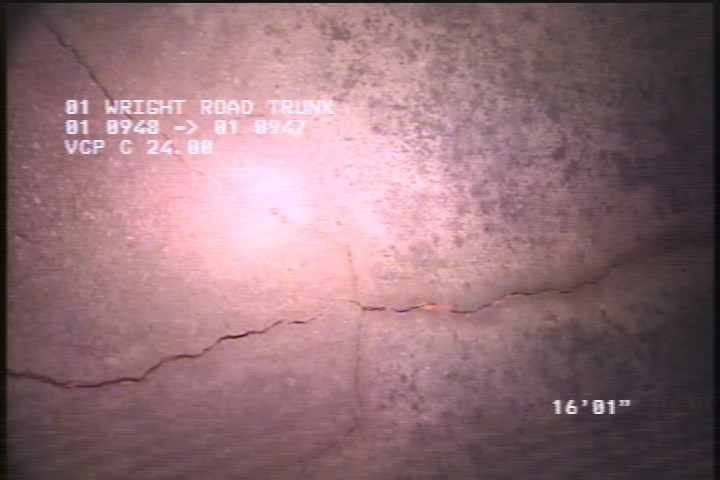

  • Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL

    16 ft. - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - SL

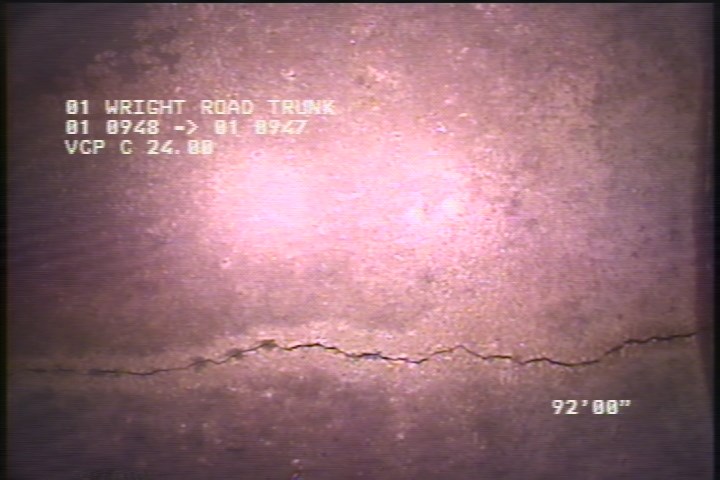

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    66.2 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

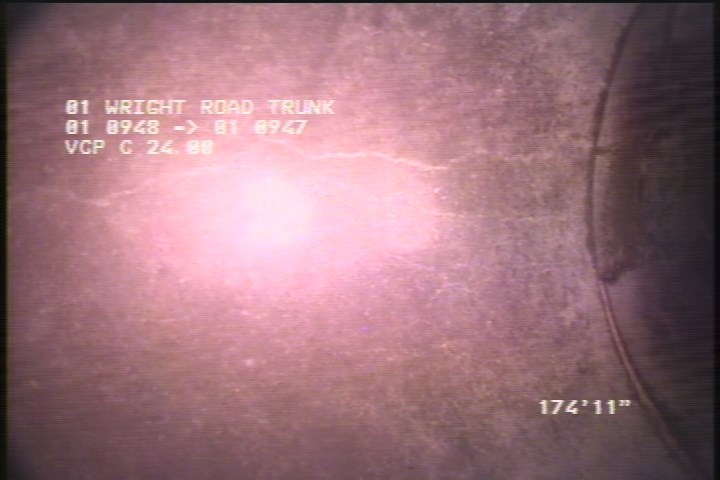

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

    174.9 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - HAIRLINE

All inspections of P01785Work order 0686794

Observations (34)

DistanceCodeObservation
31.7FCHAIRLINE AT JOINTS
2.4FCSLIGHT
286.1FL10% HAIRLINE AT JOINTS
174.9FLHAIRLINE
0MWL—
174.9FLSLIGHT
0AMH330AM
31.7FLHAIRLINE AT JOINTS
286.1FLHAIRLINE
31.7FCSL
26.3FCSL
21.5FCSL
21.5FCSL
286.9AMH4:10AM
13.4FCSL
286.1FC40% HAIRLINE AT JOINTS
8FCSL
286.1FC70% SLIGHT AT JOINTS
66.2FLSLIGHT
16FCSL
0MWM—
10.8FCSL
66.2FLSLIGHT
8MGO24" VCP
5.7FCSL
10.8FCSL
2.4FLSLIGHT
31.7FLSLIGHT AT JOINTS
31.7FCSL
8FCSL
286.1FL10% SLIGHT AT JOINTS
16FCSL
31.7FCSLIGHT AT JOINTS
31.7MWL—

Properties (4)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-01-30T01:24:25-08:00
