Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 30, 2018, 09:21 AM

  • Section#4_01 0949_01 0948__1302018__G6939.mp4

Date
01/30/2018
W/O
0686794
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00228
PipeID
P01786
Time
1:21 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6939
Sewer Name
01 WRIGHT ROAD TRUNK
City
SOUTH GATE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
08
Purpose
Capital Improvement Program Assesment
Project
20180127MDM_WRIGHT_ROAD_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
01 0949
Downstream MH
01 0948
Dir. of Survey
Downstream
Length Surveyed
288.7 ft.
Total Length
288.7 ft.
Structural Index
3
Structural Quick
3a2X
Structural Rating
770
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
770
Pipe schematic from manhole 01 0949 to 01 0948
MH: 01 0949MH: 01 0948downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - MH CONN 9:00 ACTIVE0 ft. AMH - Upstream Manhole, Survey Begins - 2:30AM0 ft. MGO - General Observation - MH CONN 3:00 STUB0 ft. MWL - Water Level, 10 %of cross sectional area4.9 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - HAIRLINE7 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT10.2 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL15.6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL15.6 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL15.6 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO - SLIGHT17.6 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL20.1 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL20.1 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL22.9 ft. FC - Fracture Circumferential, from 01 to 04 o'clock, within 8 inches of joint: YES - HAIRLINE22.9 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL25.5 ft. FC - Fracture Circumferential, from 08 to 12 o'clock, within 8 inches of joint: YES - SL25.5 ft. FC - Fracture Circumferential, from 12 to 04 o'clock, within 8 inches of joint: YES - SL30.1 ft. FC - Fracture Circumferential, from 02 to 04 o'clock, within 8 inches of joint: YES - H32.7 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS32.7 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS32.7 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - SLIGHT AT JOINTS32.7 ft. FC - Fracture Circumferential, from 12 to 02 o'clock, within 8 inches of joint: YES - SL32.7 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL32.7 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Start - HAIRLINE AT JOINTS233.5 ft. MGO - General Observation - LONG SLIGHT FRACTURE288.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 60% SLIGHT AT JOINTS288.1 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Finish - SLIGHT288.1 ft. FC - Fracture Circumferential, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish - 50% HAIRLINE AT JOINTS288.1 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Finish - 10% HAIRLINE AT JOINTS288.1 ft. FL - Fracture Longitudinal, at 08 TO 04 o'clock, within 8 inches of joint: YES, Finish - 10% SLIGHT AT JOINTS288.7 ft. AMH - Downstream Manhole, Survey Ends - 3:05AM

Observation photos (3)

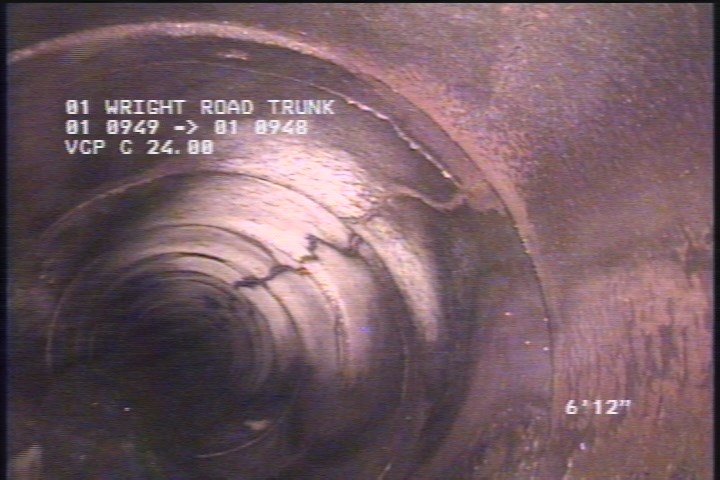

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

    7 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES, Start - SLIGHT

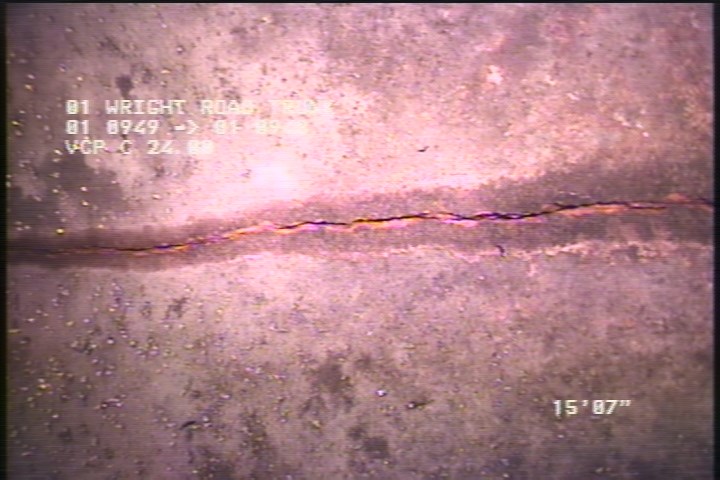

  • Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO - SLIGHT

    15.6 ft. - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: NO - SLIGHT

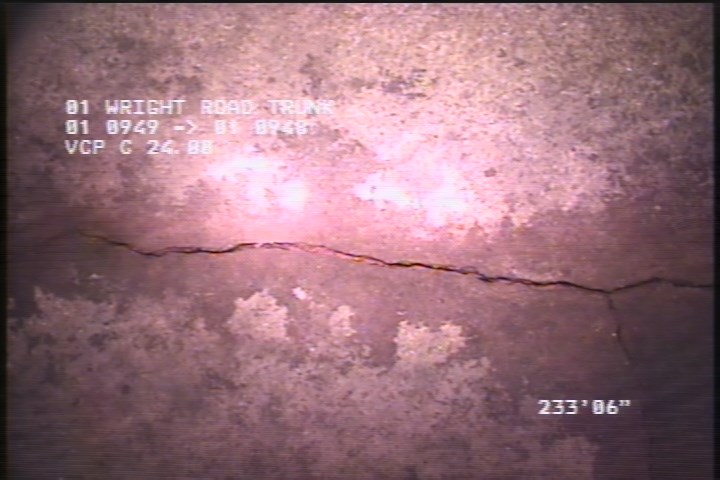

  • General Observation - LONG SLIGHT FRACTURE

    233.5 ft. - General Observation - LONG SLIGHT FRACTURE

All inspections of P01786Work order 0686794

Observations (32)

DistanceCodeObservation
15.6FCSL
288.1FC60% SLIGHT AT JOINTS
0MWM—
30.1FCH
32.7FLHAIRLINE AT JOINTS
15.6FCSL
0MGOMH CONN 9:00 ACTIVE
22.9FCHAIRLINE
288.7AMH3:05AM
10.2FCSL
7FLSLIGHT
22.9FCSL
32.7FLSLIGHT AT JOINTS
4.9FLHAIRLINE
32.7FCSLIGHT AT JOINTS
32.7FCSL
288.1FLSLIGHT
233.5MGOLONG SLIGHT FRACTURE
0AMH2:30AM
20.1FCSL
15.6FLSLIGHT
17.6FCSL
0MGOMH CONN 3:00 STUB
288.1FC50% HAIRLINE AT JOINTS
0MWL—
32.7FCSL
32.7FCHAIRLINE AT JOINTS
288.1FL10% HAIRLINE AT JOINTS
20.1FCSL
288.1FL10% SLIGHT AT JOINTS
25.5FCSL
25.5FCSL

Properties (4)

custom_field_three
LONG SLIGHT FRACTURE JOINT TO JOINT LONGER
custom_field_two
2
customer
LACSD
datetime
2018-01-30T01:21:54-08:00
