Wastewater/Activity/PacpInspection/1.0Jan 29, 2018, 09:51 AM
Section#6_A 0016_A 0015__1292018__G6937.mp4
- Date
- 01/29/2018
- W/O
- 0685997
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00332
- PipeID
- P08388
- Time
- 1:51 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6937
- Sewer Name
- A JOINT OUTFALL A - UNIT 3A
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 16
- Purpose
- Routine Assessment
- Project
- 20180126MDM_JOINT_OUTFALL_A_UNIT_3A
- Material
- RCP-CTL
- Shape
- Square
- Height
- 114 in.
- Upstream MH
- A 0015
- Downstream MH
- A 0016
- Dir. of Survey
- Upstream
- Length Surveyed
- 526.5 ft.
- Total Length
- 526.5 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (6)

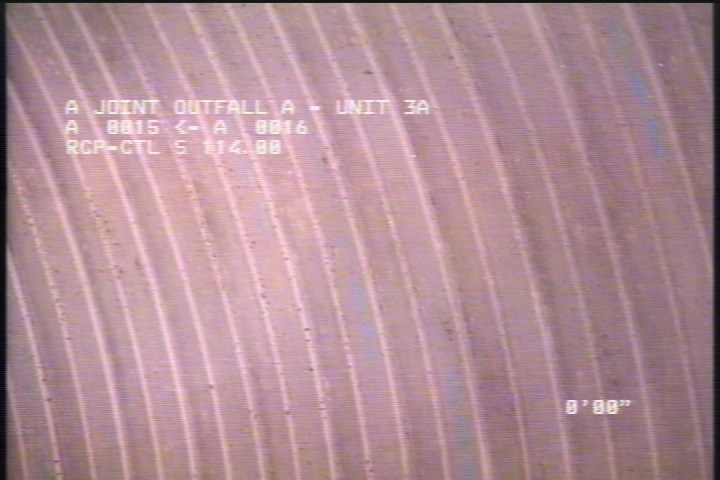

2 ft. - General Observation - PVC LINER

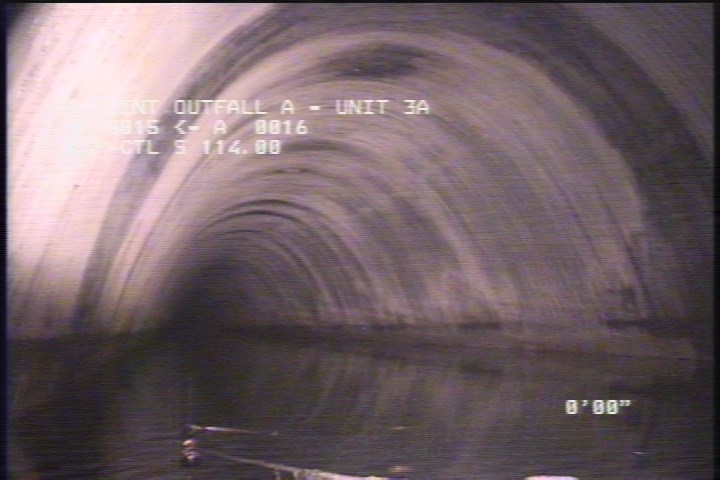

2 ft. - General Observation - 114" RCP-CTL PVC SPRIAL LINER

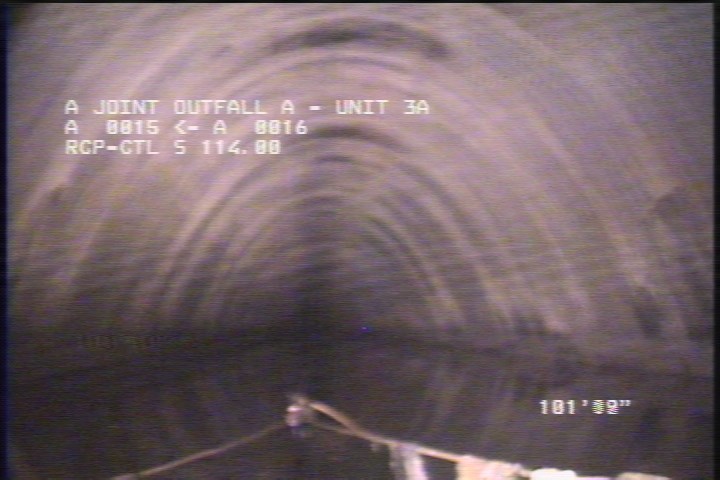

100 ft. - General Observation - 114" RCP CTL PVC SPRIAL LINER

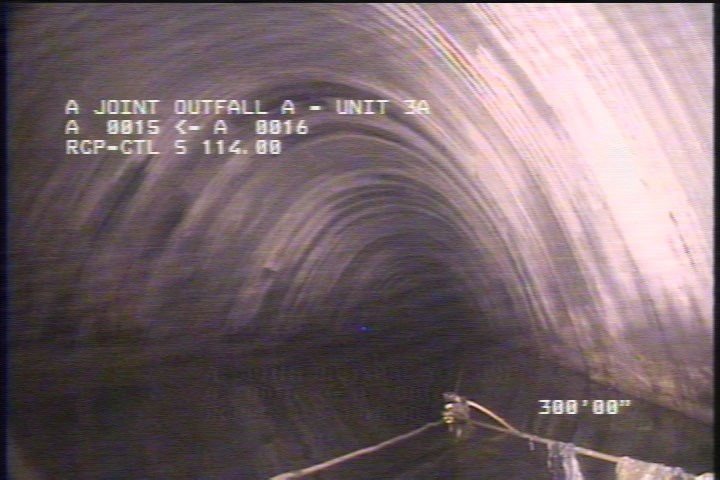

300 ft. - General Observation - 114" RCP CTL PVC SPRIAL LINER

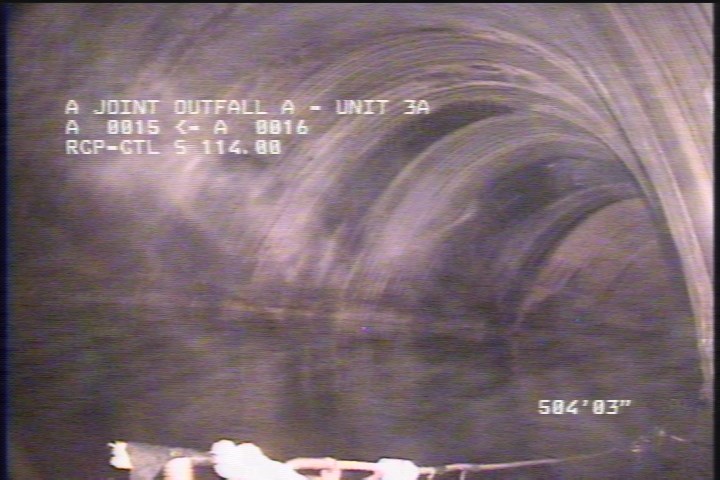

504.2 ft. - General Observation - 114" RCP CTL PVC SPRIAL LINER

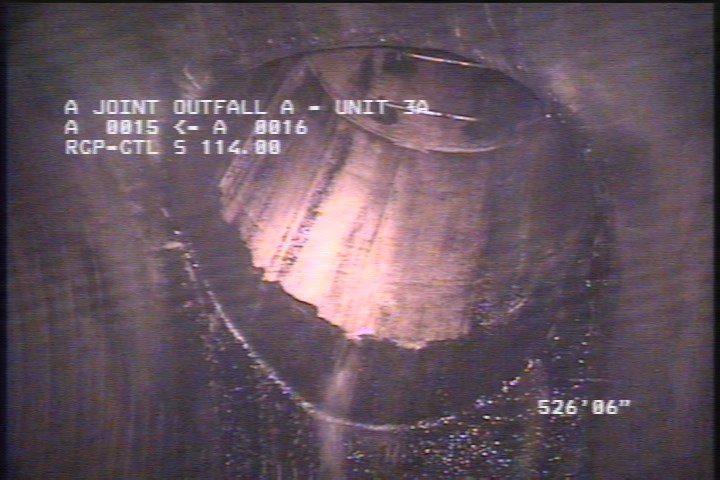

526.5 ft. - Upstream Manhole, Survey Ends - 3:00AM
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 2 | MGO | PVC LINER |
| 504.2 | MGO | 114" RCP CTL PVC SPRIAL LINER |
| 0 | AMH | 2:25AM( MH DOES NOT EXIST) |
| 100 | MGO | 114" RCP CTL PVC SPRIAL LINER |
| 300 | MGO | 114" RCP CTL PVC SPRIAL LINER |
| 2 | MGO | 114" RCP-CTL PVC SPRIAL LINER |
| 526.5 | AMH | 3:00AM |
| 0 | MWL | — |
Properties (6)
- additional_info
- REVERSE INSPECTION
- custom_field_three
- LINER IN GOOD COND.
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-29T01:51:20-08:00
- lining
- PVC SPRIAL
