Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 27, 2018, 12:39 PM

  • Section#4_A 0004_A 0003__1272018__G6935.mp4

Date
01/27/2018
W/O
0685997
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00332
PipeID
P08375
Time
4:39 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6935
Sewer Name
A JOINT OUTFALL A - UNIT 3A
City
CARSON
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
20180126MDM_JOINT_OUTFALL_A_UNIT_3A
Material
RCP-CTL
Shape
Square
Height
114 in.
Upstream MH
A 0003
Downstream MH
A 0004
Dir. of Survey
Upstream
Length Surveyed
670.9 ft.
Total Length
670.9 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 0003 to A 0004
MH: A 0003MH: A 0004upstream0 ft. AMH - Upstream Manhole, Survey Ends - 6:15AM0.4 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 8" - ACTIVE68.3 ft. MGO - General Observation - 114" RCP CTL-PVC LINER68.3 ft. MGO - General Observation - ZOOM 68'149.5 ft. MGO - General Observation - 114" RCP CTL-PVC LINER377.6 ft. TB - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4" - OPEN-2662.9 ft. MGO - General Observation - 114" RCP CTL-PVC LINER670.9 ft. MWL - Water Level, 50 %of cross sectional area670.9 ft. MWM - Water Mark, 50 %of cross sectional area670.9 ft. AMH - Downstream Manhole, Survey Begins - 5:35AM

Observation photos (5)

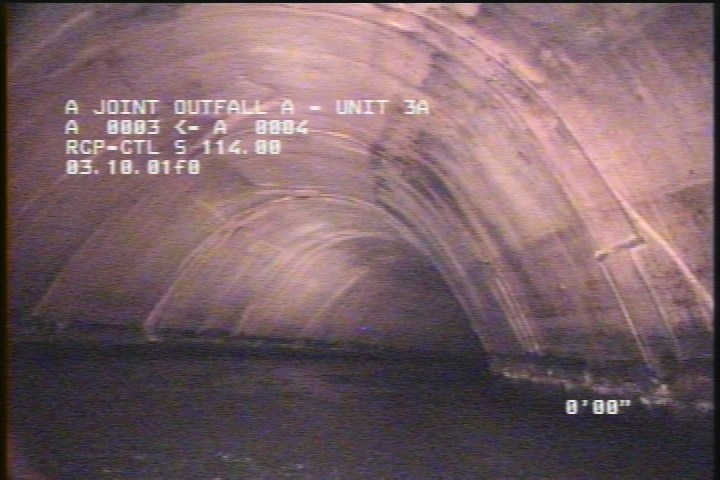

  • General Observation - 114" RCP CTL-PVC LINER

    8 ft. - General Observation - 114" RCP CTL-PVC LINER

  • Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4" - OPEN-2

    293.3 ft. - Tap Break-In, at 10 o'clock, -, within 8 inches of joint: NO, 4" - OPEN-2

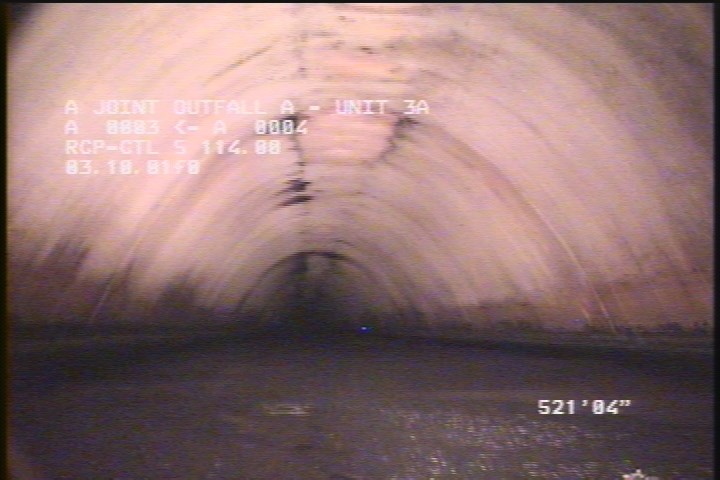

  • General Observation - 114" RCP CTL-PVC LINER

    521.4 ft. - General Observation - 114" RCP CTL-PVC LINER

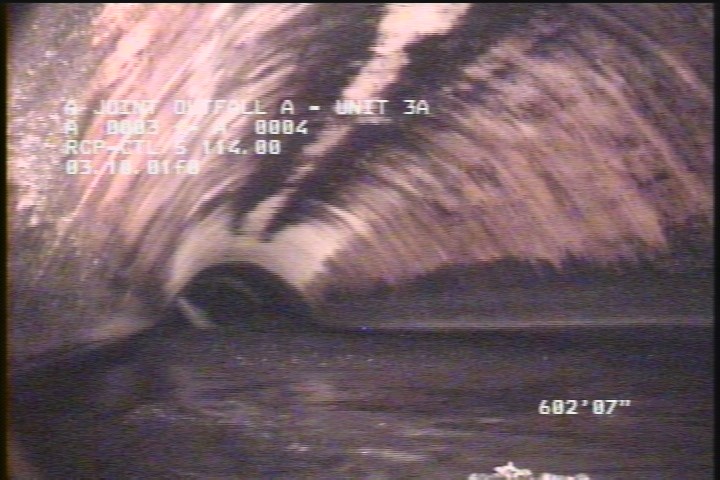

  • General Observation - 114" RCP CTL-PVC LINER

    602.6 ft. - General Observation - 114" RCP CTL-PVC LINER

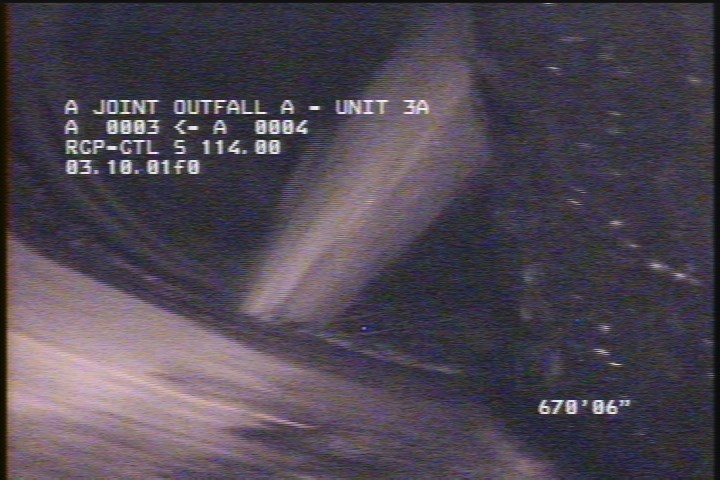

  • General Observation - ZOOM 68'

    602.6 ft. - General Observation - ZOOM 68'

All inspections of P08375Work order 0685997

Observations (10)

DistanceCodeObservation
0MWL—
670.9AMH6:15AM
8MGO114" RCP CTL-PVC LINER
670.5TBACTIVE
521.4MGO114" RCP CTL-PVC LINER
602.6MGO114" RCP CTL-PVC LINER
602.6MGOZOOM 68'
0MWM—
0AMH5:35AM
293.3TBOPEN-2

Properties (5)

additional_info
REVERSE INSPECTION
custom_field_three
LINER IN GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2018-01-27T04:39:25-08:00
