Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 26, 2018, 08:55 AM

  • Section#1_A 0005_A 0004A__1262018__G6933.mp4

Date
01/26/2018
W/O
0685997
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00332
PipeID
P08377
Time
12:55 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6933
Sewer Name
A JOINT OUTFALL A - UNIT 3A
City
CARSON
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
16
Purpose
Routine Assessment
Project
20180126MDM_JOINT_OUTFALL_A_UNIT_3A
Material
RCP-CTL
Shape
Square
Height
114 in.
Width
114 in.
Upstream MH
A 0005
Downstream MH
A 0004A
Dir. of Survey
Downstream
Length Surveyed
750.1 ft.
Total Length
750.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
4
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole A 0005 to A 0004A
MH: A 0005MH: A 0004Adownstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. MWL - Water Level, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:45AM8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 8" - ACTIVE10 ft. MGO - General Observation - 114" RCP - CTL PVC LINER10.1 ft. MGO - General Observation - PVC LINER333.1 ft. MGO - General Observation - 114" RCP - CTL PVC LINER532 ft. MGO - General Observation - PVC LINER750.1 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (4)

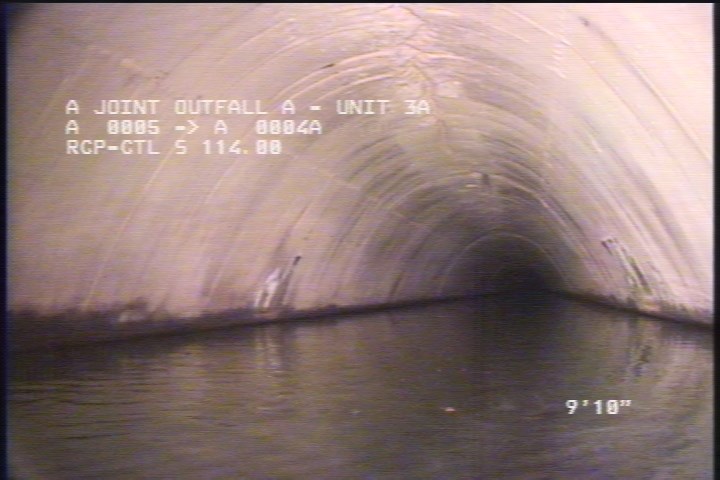

  • General Observation - 114" RCP - CTL PVC LINER

    10 ft. - General Observation - 114" RCP - CTL PVC LINER

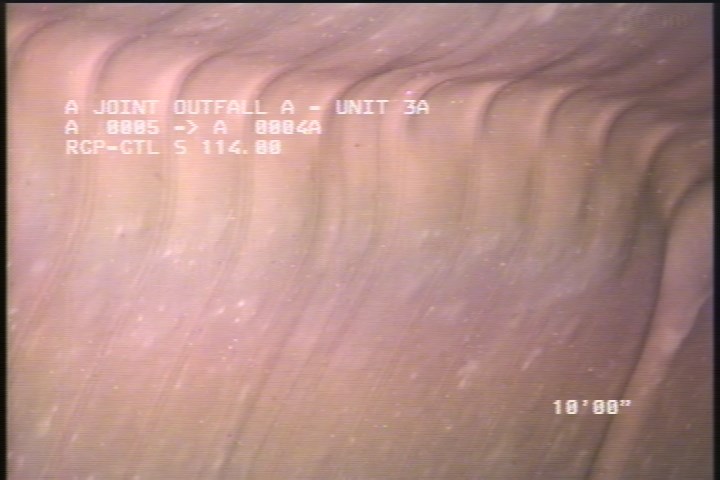

  • General Observation - PVC LINER

    10.1 ft. - General Observation - PVC LINER

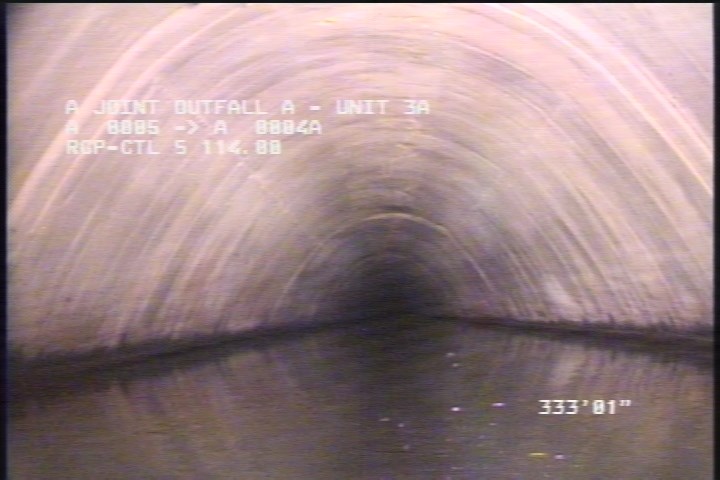

  • General Observation - 114" RCP - CTL PVC LINER

    333.1 ft. - General Observation - 114" RCP - CTL PVC LINER

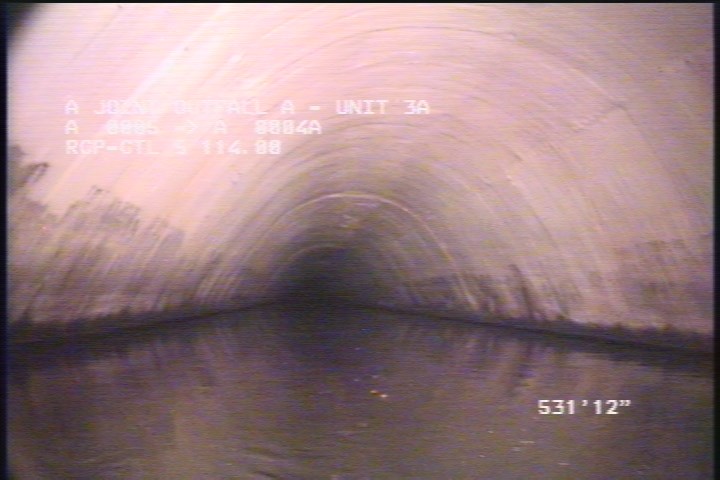

  • General Observation - PVC LINER

    532 ft. - General Observation - PVC LINER

All inspections of P08377Work order 0685997

Observations (9)

DistanceCodeObservation
10.1MGOPVC LINER
333.1MGO114" RCP - CTL PVC LINER
0MWM—
532MGOPVC LINER
0MWL—
10MGO114" RCP - CTL PVC LINER
0AMH1:45AM
750.1AMH2:40AM
8TFACTIVE

Properties (6)

custom_field_three
LINER IN GOOD COND.
custom_field_two
4
customer
LACSD
datetime
2018-01-26T00:55:48-08:00
lining
PVC LINER
year_laid
20031107
