Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 29, 2017, 11:50 AM

  • 02 0303_02 0302_6292017_045130.mp4

Date
06/29/2017
W/O
0647471
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00251
PipeID
P02617
Time
4:50 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0580
Sewer Name
02 DOWNEY-BELLFLOWER TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Routine Assessment
Project
20170626MDM_DOWNEY_BELLFLOWER_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Upstream MH
02 0303
Downstream MH
02 0302
Dir. of Survey
Downstream
Length Surveyed
197.7 ft.
Total Length
197.7 ft.
Structural Index
2
Structural Quick
4137
Structural Rating
87
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
87
Pipe schematic from manhole 02 0303 to 02 0302
MH: 02 0303MH: 02 0302downstream0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 4:55AM0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area7 ft. FL - Fracture Longitudinal, at 09 o'clock, within 8 inches of joint: YES - HAIRLINE7 ft. FC - Fracture Circumferential, from 10 to 01 o'clock, within 8 inches of joint: YES - HAIRLINE15 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H15 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H27.4 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - SL28.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - H39.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H43 ft. MGO - General Observation - WHITE BUILD UP ON PIPE43 ft. FC - Fracture Circumferential, from 09 to 02 o'clock, within 8 inches of joint: YES - H48.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - H51.3 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H55.9 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL67.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H67.6 ft. FC - Fracture Circumferential, from 11 to 01 o'clock, within 8 inches of joint: YES - SL71.9 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - H75.7 ft. FC - Fracture Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES - SLIGHT92.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Open94.8 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H94.8 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H103 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL107.1 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - SL107.1 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL111.2 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL115 ft. FC - Fracture Circumferential, from 09 to 10 o'clock, within 8 inches of joint: YES - SL115 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - SLIGHT127.4 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - SL131.5 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - SL135.7 ft. FL - Fracture Longitudinal, at 10 o'clock, within 8 inches of joint: YES - SL135.7 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES - H139.8 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H143.7 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H152 ft. FC - Fracture Circumferential, from 09 to 12 o'clock, within 8 inches of joint: YES - H152 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H156.3 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - H156.3 ft. FC - Fracture Circumferential, from 01 to 03 o'clock, within 8 inches of joint: YES - SL172.1 ft. FC - Fracture Circumferential, from 12 to 03 o'clock, within 8 inches of joint: YES - H176.3 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SL180.3 ft. FC - Fracture Circumferential, from 10 to 02 o'clock, within 8 inches of joint: YES - SL184.4 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - H184.4 ft. FC - Fracture Circumferential, from 11 to 02 o'clock, within 8 inches of joint: YES - H192.5 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL197.3 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Capped197.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active197.7 ft. AMH - Downstream Manhole, Survey Ends - 5:25AM

Observation photos (2)

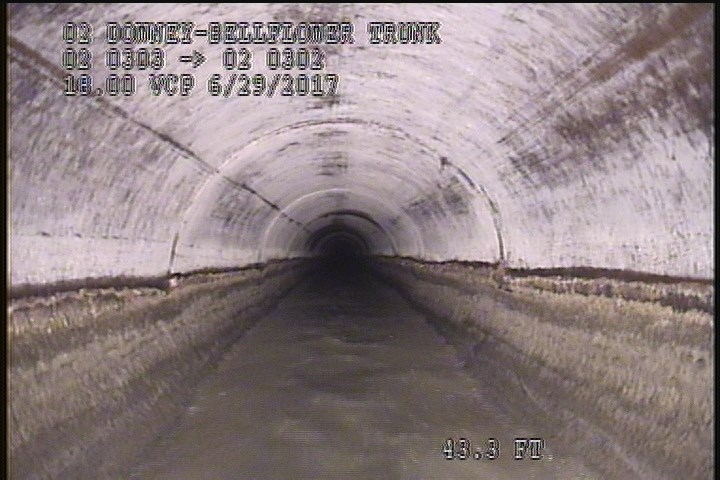

  • General Observation - WHITE BUILD UP ON PIPE

    43 ft. - General Observation - WHITE BUILD UP ON PIPE

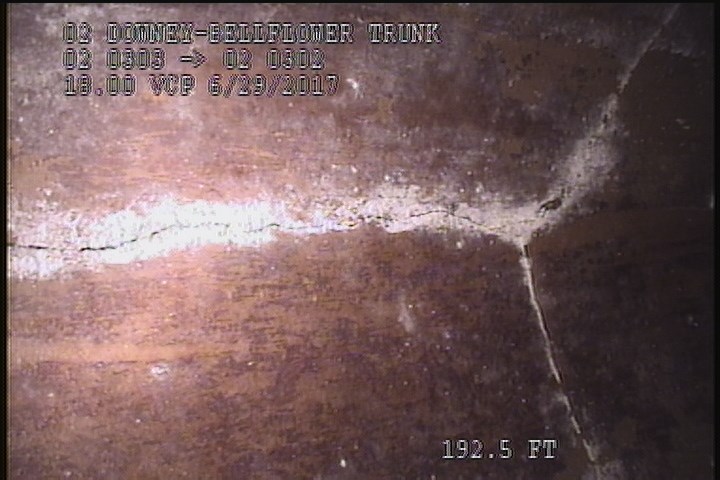

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

    192.5 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES - SL

All inspections of P02617Work order 0647471

Observations (48)

DistanceCodeObservation
39.7FCH
139.8FCH
0MGOConn. @ Mh, 3 O' Clock. Active
28.2FCH
131.5FCSL
143.7FCH
156.3FCH
0AMH4:55AM
15FLH
197.7AMH5:25AM
43MGOWHITE BUILD UP ON PIPE
135.7FLSL
184.4FCH
184.4FCH
7FLHAIRLINE
94.8FCH
107.1FCSL
107.1FCSL
172.1FCH
111.2FCSL
197.3MGOConn. @ Mh, 3 O' Clock. Capped
127.4FCSL
115FCSL
192.5FMSL
156.3FCSL
0MWL—
152FCH
92.6TFOpen
94.8FCH
180.3FCSL
55.9FCSL
0MWM—
43FCH
115FLSLIGHT
51.3FCH
48.5FCH
197.3MGOConn. @ Mh, 9 O' Clock. Active
135.7FLH
152FCH
27.4FLSL
176.3FCSL
15FCH
7FCHAIRLINE
71.9FCH
67.6FLH
75.7FCSLIGHT
103FCSL
67.6FCSL

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-06-29T04:50:00-07:00
