  • 08 0035_08 0034 _28122017_235038.mp4

Date
12/28/2017
W/O
679275
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00016
PipeID
P00037
Time
11:39 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5298
Sewer Name
08 MAIN STREET TRUNK
City
GARDENA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
04
Purpose
Routine Assessment
Project
WO_679275_TV08116_JAN2018
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
08 0034
Downstream MH
08 0035
Dir. of Survey
Upstream
Length Surveyed
327 ft.
Total Length
327.1 ft.
Structural Index
3
Structural Quick
3L23
Structural Rating
204
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
204
Pipe schematic from manhole 08 0034 to 08 0035
MH: 08 0034MH: 08 0035upstream0 ft. AMH - Upstream Manhole, Survey Ends - 08 00351.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish2.1 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK2.1 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK11.3 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"50.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES63.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"98.9 ft. CM - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES111.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"119.9 ft. CL - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES163.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"183.5 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES211.4 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"260.6 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"313.2 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"325.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start327.1 ft. MWL - Water Level, 10 %of cross sectional area327.1 ft. AMH - Downstream Manhole, Survey Begins - 08 0034327.1 ft. MWM - Water Mark, 20 %of cross sectional area327.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK

Observation photos (4)

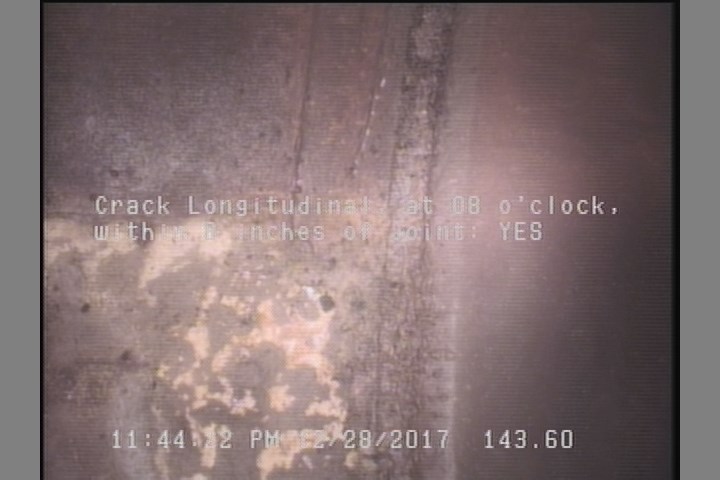

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    143.6 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

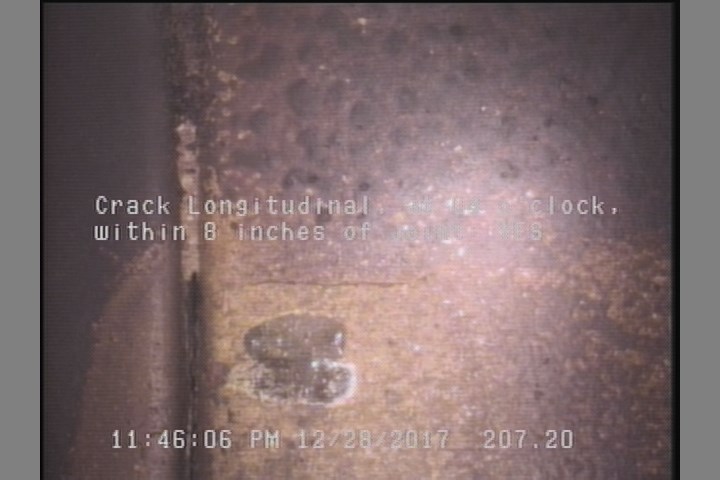

  • Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

    207.2 ft. - Crack Longitudinal, at 04 o'clock, within 8 inches of joint: YES

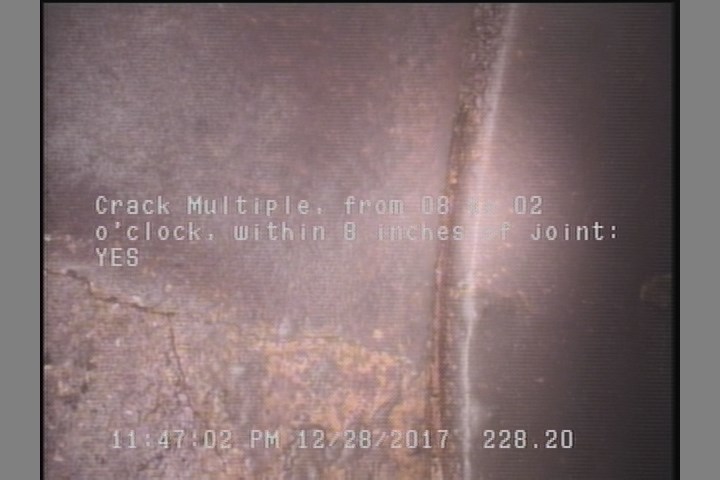

  • Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

    228.2 ft. - Crack Multiple, from 08 to 02 o'clock, within 8 inches of joint: YES

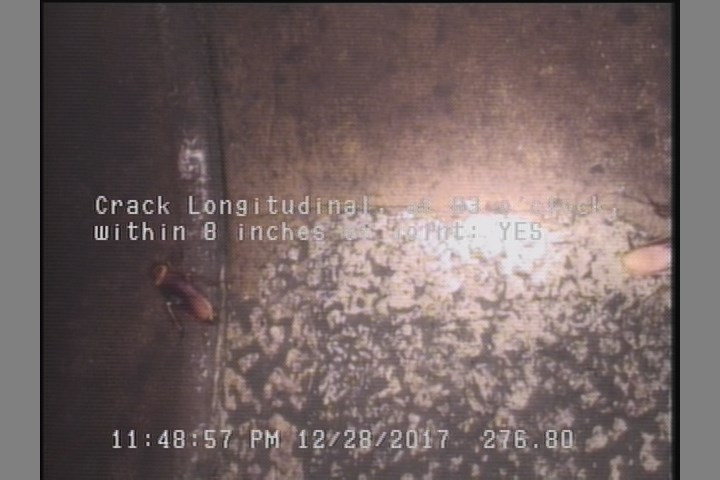

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    276.8 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

All inspections of P00037Work order 679275

Observations (20)

DistanceCodeObservation
66.5TF—
276.8CL—
327.1AMH08 0035
0MWL—
263.9TFC—
228.2CM—
115.7TFC—
13.9TFC—
207.2CL—
325MGOGREASE THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
215.7TFC—
0AMH08 0034
143.6CL—
325MGOSPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK
2CM—
0MWM—
326CM—
0MGOCONNECTION AT MH 9 O'CLOCK
315.8TFA—
163.6TF—

Properties (5)

additional_info
SC346772
custom_field_two
3
customer
LACSD
datetime
2017-12-28T23:39:00-08:00
sewer_category
Gravity
