Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 08:06 AM
08 0031_08 0030 _29122017_001850.mp4
- Date
- 12/29/2017
- W/O
- 679275
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00016
- PipeID
- P00033
- Time
- 12:06 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5298
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- GARDENA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_679275_TV08116_JAN2018
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 21 in.
- Width
- 21 in.
- Upstream MH
- 08 0031
- Downstream MH
- 08 0030
- Dir. of Survey
- Downstream
- Length Surveyed
- 341.6 ft.
- Total Length
- 341.6 ft.
- Structural Index
- 3
- Structural Quick
- 413R
- Structural Rating
- 290
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 290
Observation photos (4)

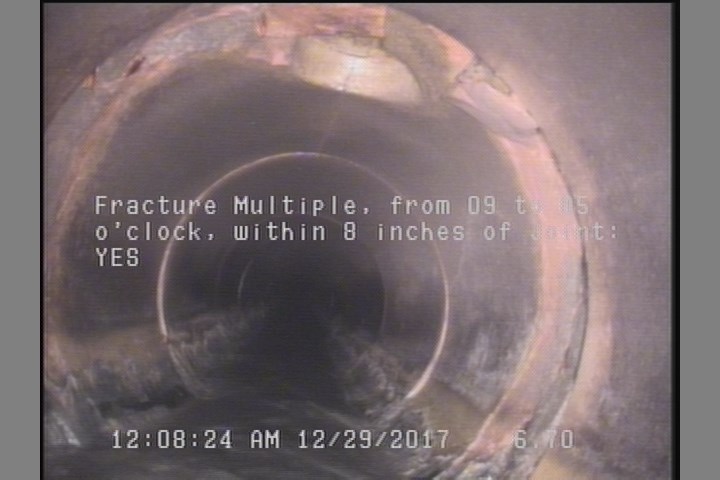

6.7 ft. - Fracture Multiple, from 09 to 05 o'clock, within 8 inches of joint: YES

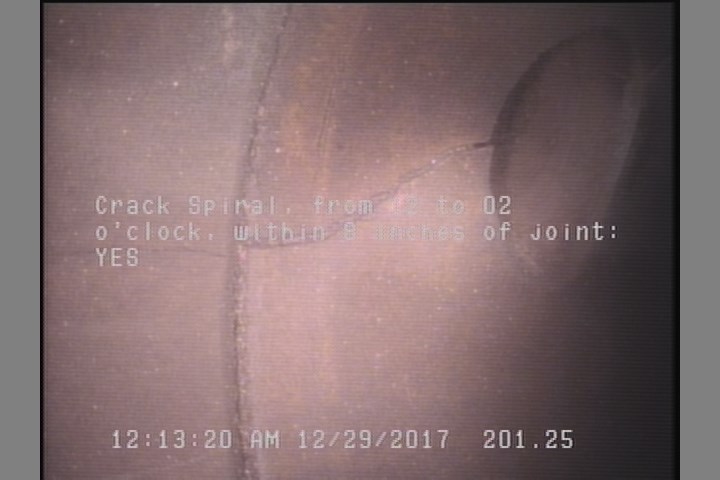

201.3 ft. - Crack Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES

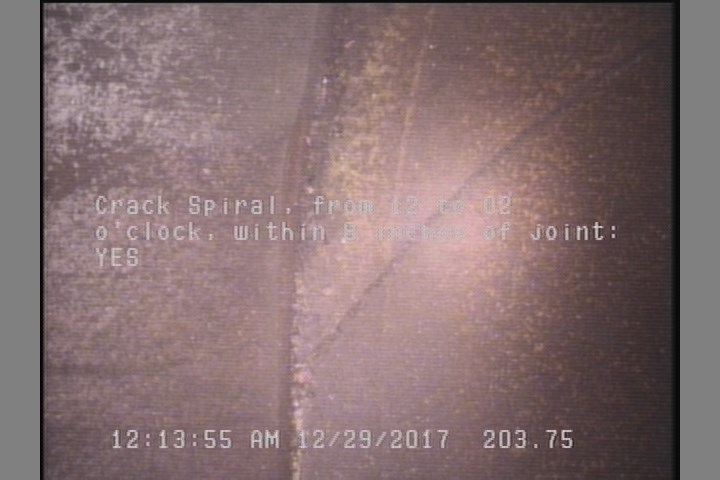

203.8 ft. - Crack Spiral, from 12 to 02 o'clock, within 8 inches of joint: YES

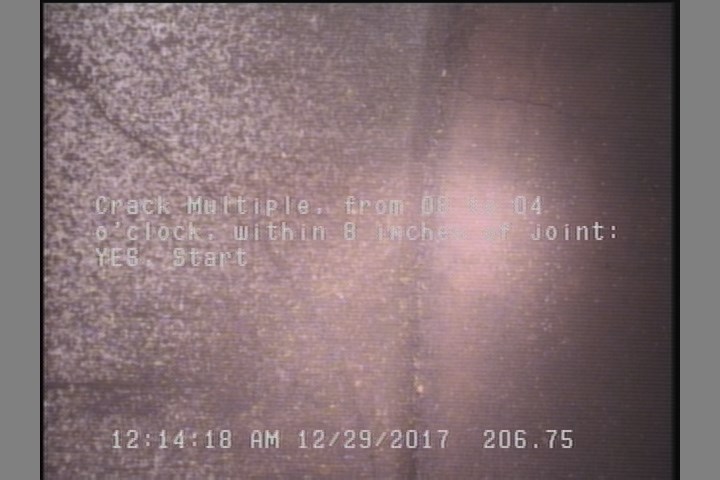

206.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (19)
| Distance | Code | Observation |
|---|---|---|
| 201.3 | CS | — |
| 340 | MGO | SPALLING THROUGHOUT THE REACH, FROM 08 TO 04 O'CLOCK |
| 202.9 | TFC | — |
| 55 | TFC | — |
| 203.8 | CS | — |
| 154 | TFC | — |
| 105.8 | TFC | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 206.8 | CM | — |
| 2 | CM | — |
| 7.7 | TFC | CHIPPING |
| 341.6 | CM | — |
| 339 | CM | — |
| 341.6 | AMH | 08 0030 |
| 0 | AMH | 08 0031 |
| 254.3 | TF | — |
| 6.7 | FM | — |
| 308.8 | TFC | — |
Properties (5)
- additional_info
- SC346772
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-29T00:06:32-08:00
- sewer_category
- Gravity
