Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 10:29 AM

  • 18 0455_18 0454 _05012018_023255.mp4

Date
01/05/2018
W/O
679302
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00691
PipeID
P14307
Time
2:29 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5304
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Sidewalk
Location Code
F
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
21
Purpose
Routine Assessment
Project
WO_679302_TV18099_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0455
Downstream MH
18 0454
Dir. of Survey
Downstream
Length Surveyed
605.2 ft.
Total Length
605.2 ft.
Structural Index
3
Structural Quick
4A3P
Structural Rating
299
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
299
Pipe schematic from manhole 18 0455 to 18 0454
MH: 18 0455MH: 18 0454downstream0 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 18 04550 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area6.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start49.9 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish49.9 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start116.6 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 6"335.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"468.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish555.5 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES589.2 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES592.2 ft. FM - Fracture Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES600.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES605.2 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK605.2 ft. AMH - Downstream Manhole, Survey Ends - 18 0454

Observation photos (6)

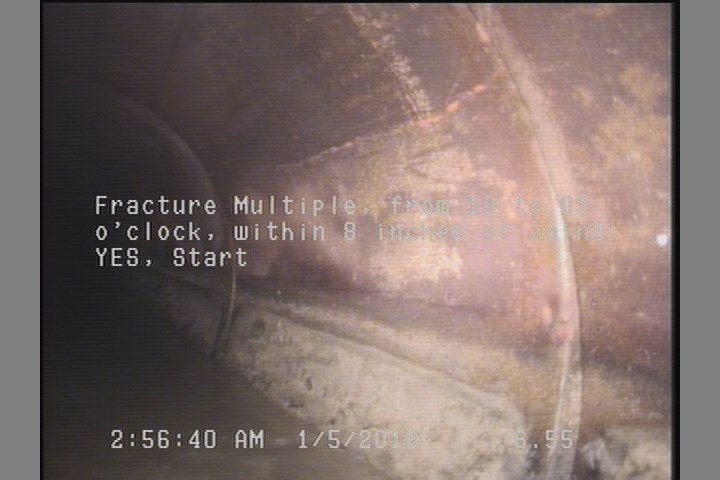

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    6.6 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

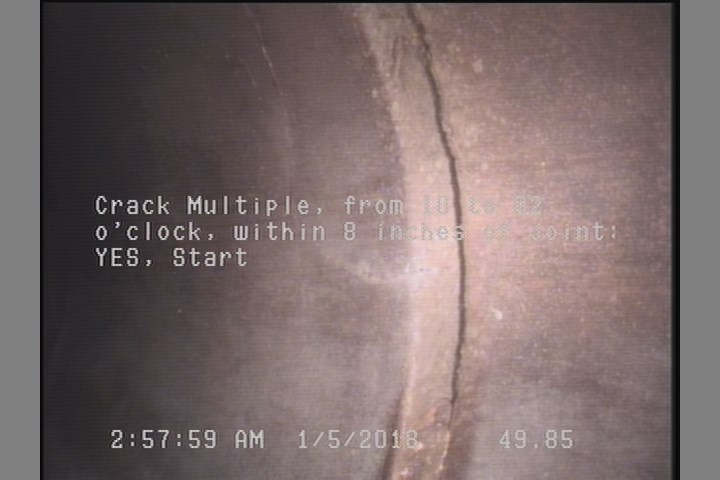

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    49.9 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

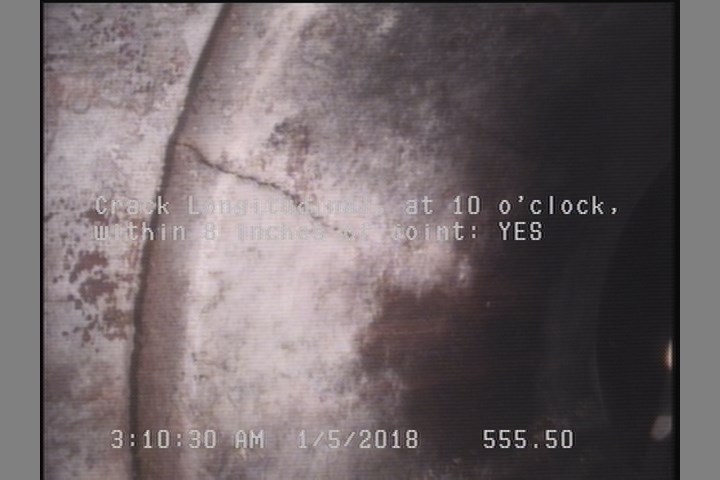

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    555.5 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

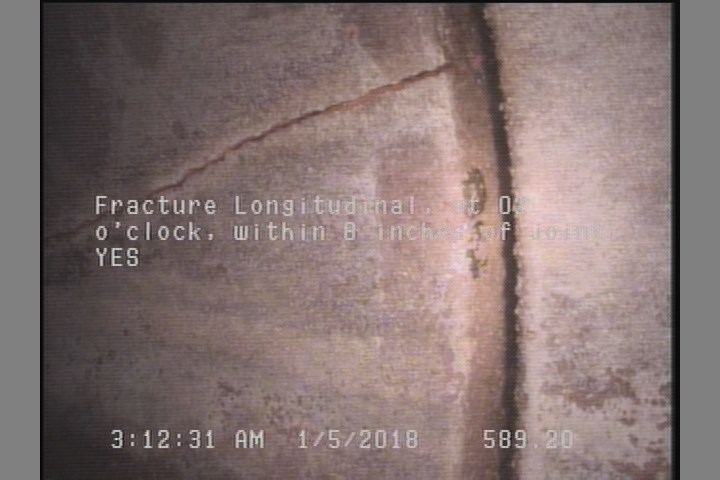

  • Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    589.2 ft. - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES

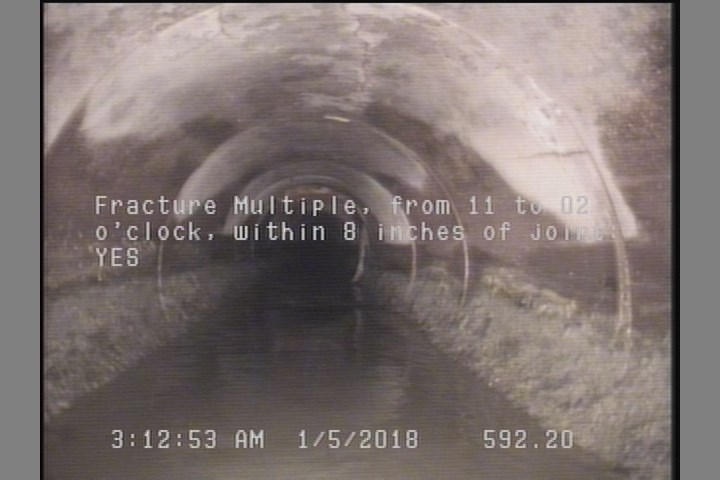

  • Fracture Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

    592.2 ft. - Fracture Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

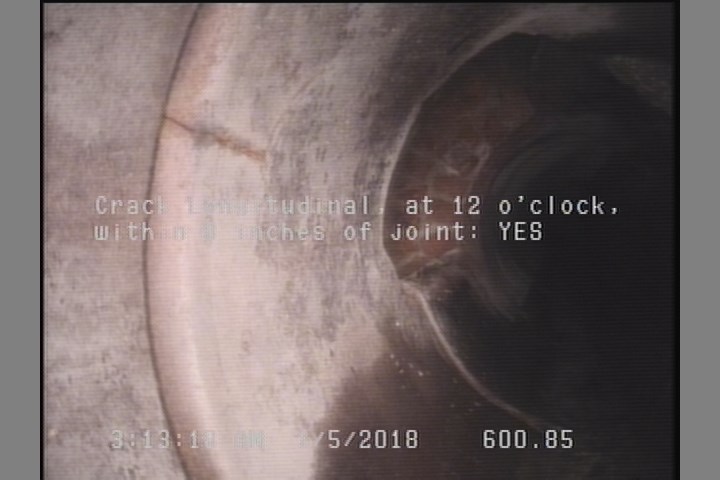

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    600.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P14307Work order 679302

Observations (16)

DistanceCodeObservation
468.2CM—
605.2MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 9 O'CLOCK
555.5CL—
0AMH18 0455
6.6FM—
335.9TF—
592.2FM—
0MWM—
49.9FM—
49.9CM—
0MWL—
116.6TFA—
605.2AMH18 0454
600.9CL—
589.2FL—

Properties (4)

additional_info
SC346778
custom_field_two
2
customer
LACSD
datetime
2018-01-05T02:29:51-08:00
