Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 5, 2018, 09:41 AM

  • 18 0464_18 0463_05012018_014207.mp4

Date
01/05/2018
W/O
679302
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00691
PipeID
P14318
Time
1:41 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K5304
Sewer Name
18 NORTH PLANT OUTFALL TRUNK
City
WHITTIER
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
20
Purpose
Routine Assessment
Project
WO_679302_TV18099_JAN2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0464
Downstream MH
18 0463
Dir. of Survey
Downstream
Length Surveyed
119.1 ft.
Total Length
119.1 ft.
Structural Index
4
Structural Quick
4C33
Structural Rating
85
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
85
Pipe schematic from manhole 18 0464 to 18 0463
MH: 18 0464MH: 18 0463downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 04643.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start17.2 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish17.3 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start97.5 ft. TB - Tap Break-In, at 11 o'clock, -, within 8 inches of joint: NO, 4"112.6 ft. FM - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Finish119.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0463119.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK

Observation photos (2)

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    3.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

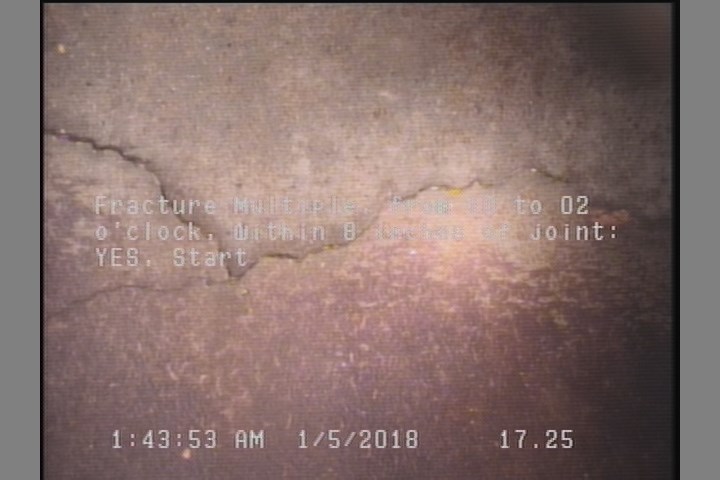

  • Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

    17.3 ft. - Fracture Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

All inspections of P14318Work order 679302

Observations (10)

DistanceCodeObservation
112.6FM—
119.1AMH18 0463
3.2CM—
0MWL—
97.5TB—
0MWM—
17.2CM—
0AMH18 0464
119.1MGOCONNECTION AT MH 3 O'CLOCK
17.3FM—

Properties (4)

additional_info
SC346778
custom_field_two
2
customer
LACSD
datetime
2018-01-05T01:41:32-08:00
