Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 24, 2018, 11:47 AM

  • Section#2_A 0012_A 0011__1242018__G6931.mp4

Date
01/24/2018
W/O
0685997
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00332
PipeID
P08384
Time
3:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6931
Sewer Name
A JOINT OUTFALL A - UNIT 3A
City
CARSON
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 08
Page No.
17
Purpose
Routine Assessment
Project
20180124MDN_JOINT_OUTFALL_A_UNIT_3A
Material
RCP-CTL
Shape
Square
Height
107.5 in.
Upstream MH
A 0012
Downstream MH
A 0011
Dir. of Survey
Downstream
Length Surveyed
95.4 ft.
Total Length
95.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
0
Overall Quick
—
Overall Rating
0
Pipe schematic from manhole A 0012 to A 0011
MH: A 0012MH: A 0011downstream0 ft. AMH - Upstream Manhole, Survey Begins(MH DOES NOT EXIST) - 3:55AM0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. MWM - Water Mark, 40 %of cross sectional area11 ft. MGO - General Observation - 107.50" RCP-CTL PVC SPRIAL LINER72.7 ft. MGO - General Observation - PVC SPRIAL LINER95.4 ft. AMH - Downstream Manhole, Survey Ends - 4:10AM

Observation photos (3)

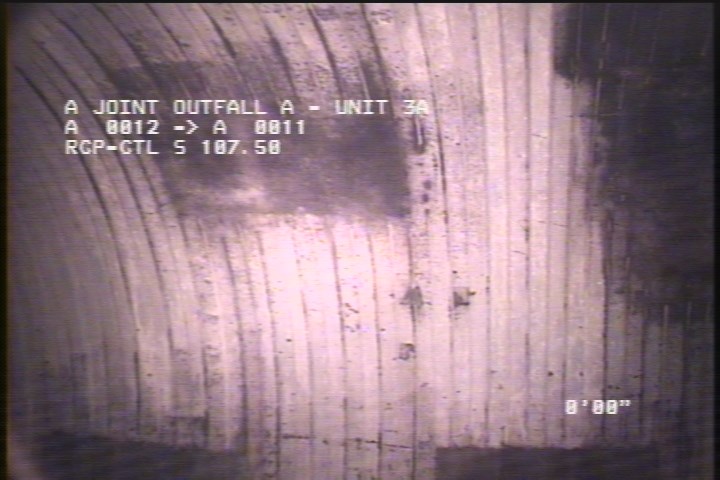

  • Upstream Manhole, Survey Begins(MH DOES NOT EXIST) - 3:55AM

    0 ft. - Upstream Manhole, Survey Begins(MH DOES NOT EXIST) - 3:55AM

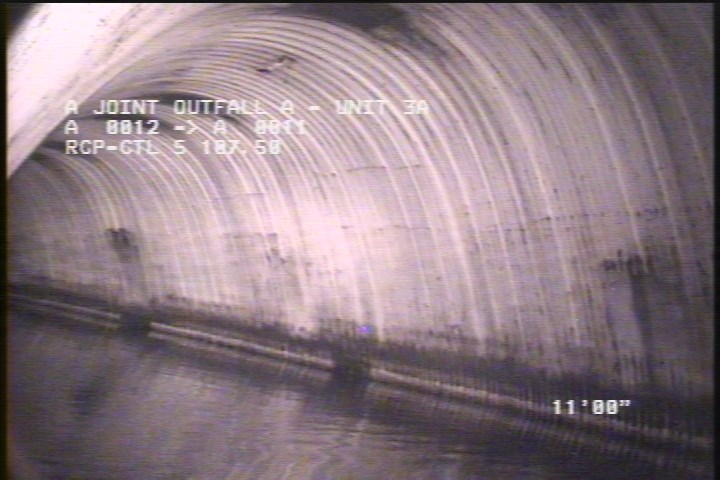

  • General Observation - 107.50" RCP-CTL PVC SPRIAL LINER

    11 ft. - General Observation - 107.50" RCP-CTL PVC SPRIAL LINER

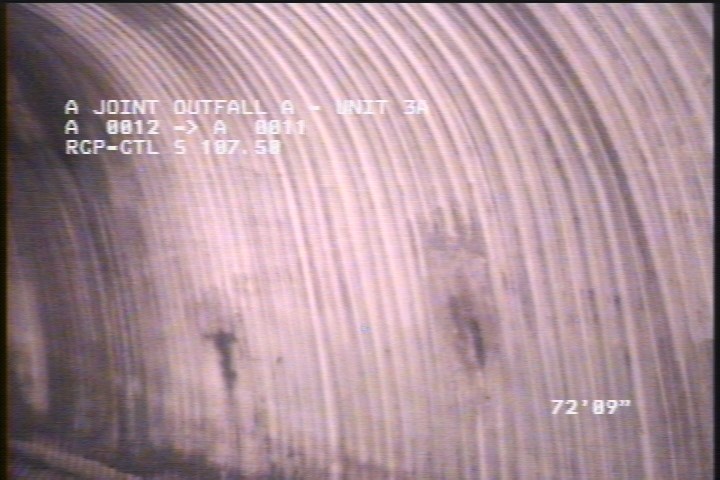

  • General Observation - PVC SPRIAL LINER

    72.7 ft. - General Observation - PVC SPRIAL LINER

All inspections of P08384Work order 0685997

Observations (6)

DistanceCodeObservation
0AMH3:55AM
11MGO107.50" RCP-CTL PVC SPRIAL LINER
0MWL—
72.7MGOPVC SPRIAL LINER
0MWM—
95.4AMH4:10AM

Properties (4)

custom_field_three
LINER GOOD COND
custom_field_two
4
customer
LACSD
datetime
2018-01-24T03:47:40-08:00
