Wastewater/Activity/PacpInspection/1.0Jan 24, 2018, 09:49 AM
Section#1_A 0013_A 0012__1242018__G6931.mp4
- Date
- 01/24/2018
- W/O
- 0685997
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00332
- PipeID
- P08385
- Time
- 1:49 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6931
- Sewer Name
- A JOINT OUTFALL A - UNIT 3A
- City
- CARSON
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 17
- Purpose
- Routine Assessment
- Project
- 20180124MDN_JOINT_OUTFALL_A_UNIT_3A
- Material
- RCP-CTL
- Shape
- Square
- Height
- 107.5 in.
- Width
- 107.5 in.
- Upstream MH
- A 0013
- Downstream MH
- A 0012
- Dir. of Survey
- Downstream
- Length Surveyed
- 922.1 ft.
- Total Length
- 922.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (5)

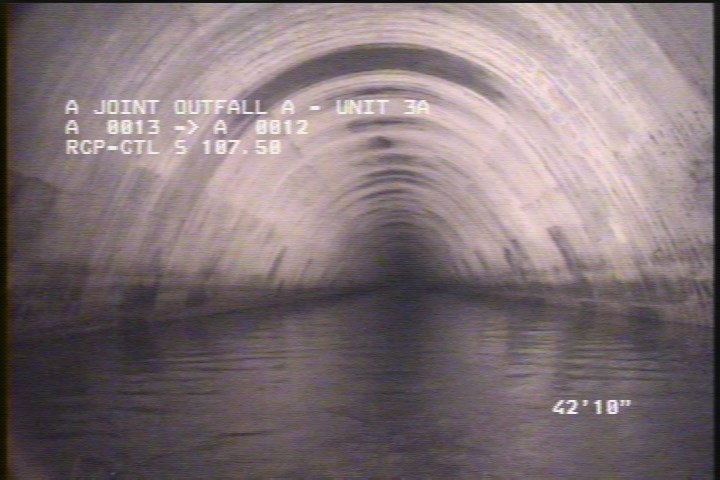

7.8 ft. - General Observation - 114" RCP-CTL-PVC SPRIAL LINWE

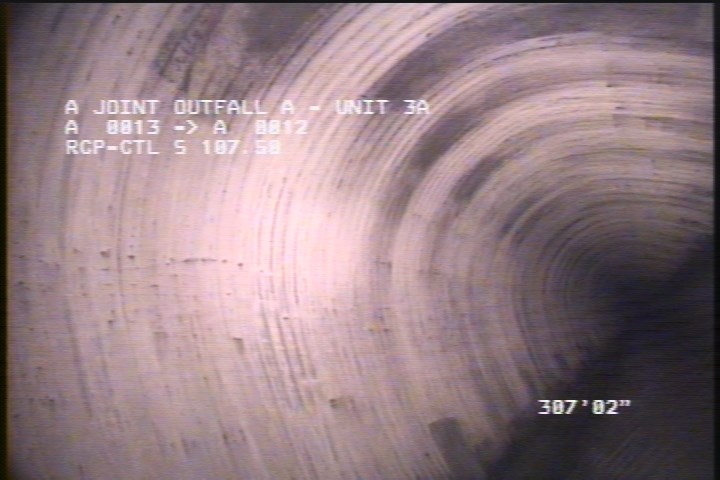

307.2 ft. - General Observation - PVC SPRIAL LINER

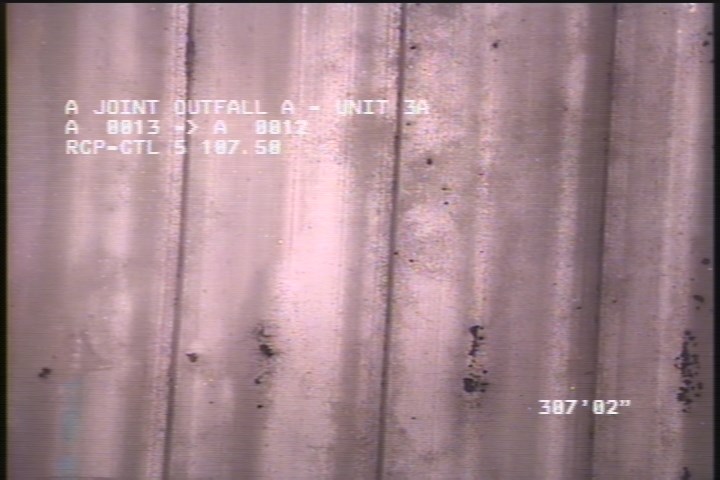

307.2 ft. - General Observation - PVC LINER

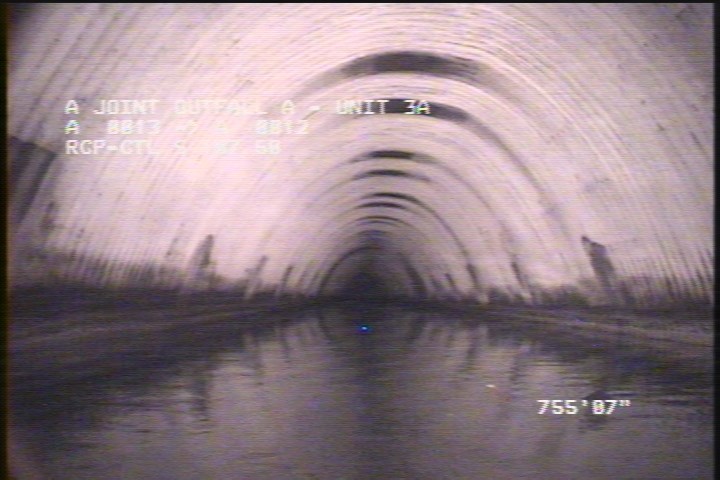

758.5 ft. - General Observation - PVC SPRIAL LINER

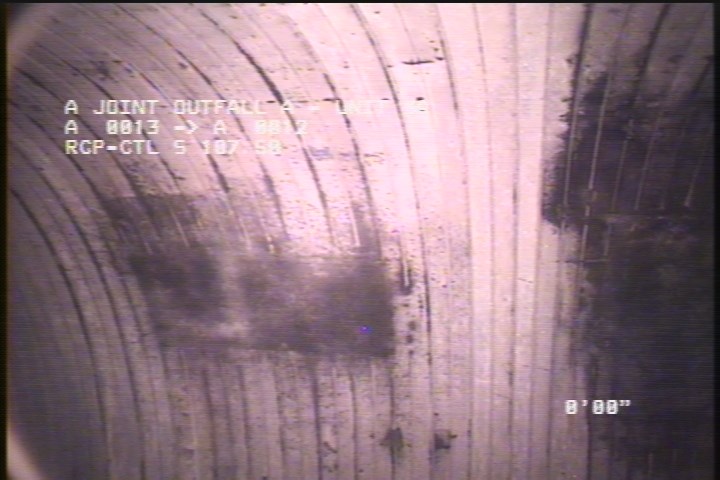

922.1 ft. - Downstream Manhole, Survey Ends( MH DOES NOT EXIST) - 3:40AM( MH DOES NOR EXIST
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 758.5 | MGO | PVC SPRIAL LINER |
| 0 | MWL | — |
| 0 | AMH | 2:40AM |
| 307.2 | MGO | PVC SPRIAL LINER |
| 0 | MGO | MH CONN 9:00 ACTIVE |
| 307.2 | MGO | PVC LINER |
| 814.3 | TB | ACTIVE |
| 922.1 | AMH | 3:40AM( MH DOES NOR EXIST |
| 7.8 | MGO | 114" RCP-CTL-PVC SPRIAL LINWE |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- LINER GOOD COND.
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-01-24T01:49:02-08:00
