Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 19, 2018, 11:28 AM

  • 03 0476_03 0475_1192018_033101.mp4

Date
01/19/2018
W/O
PENDING
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00401
PipeID
P05196
Time
3:28 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Heavy Cleaning
Media Label
G7606
Sewer Name
03 PUMP DISTRICT #5 CONNECTION TRUNK
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
22
Purpose
Routine Assessment
Project
20180119DF_PUMP_DISTRICT_5_CONNECTION_TR
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
03 0476
Downstream MH
03 0475
Dir. of Survey
Downstream
Length Surveyed
39.3 ft.
Total Length
39.3 ft.
Structural Index
2
Structural Quick
4123
Structural Rating
17
O&M Index
4
O&M Quick
4100
O&M Rating
4
Overall Index
2
Overall Quick
—
Overall Rating
21
Pipe schematic from manhole 03 0476 to 03 0475
MH: 03 0476MH: 03 0475downstream0 ft. MWL - Water Level, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:30 AM0 ft. MWM - Water Mark, 50 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start3 ft. MGP - General Photograph5 ft. JOL - Joint Offset Large - 1"12.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES12.9 ft. MGP - General Photograph21 ft. JOM - Joint Offset Medium - .5"22.1 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Start - POSSIBLE SAG23.6 ft. JOM - Joint Offset Medium - .5"27.4 ft. JOM - Joint Offset Medium - .5"30 ft. JOM - Joint Offset Medium - .5"32.9 ft. JOM - Joint Offset Medium - .5"37.4 ft. JOM - Joint Offset Medium - .5"39.3 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish39.3 ft. MSA - Survey Abandoned - DEBRIS39.3 ft. MGP - General Photograph - DEPOSITS39.3 ft. MWLS - Water Level, Sag in pipe, 20 %of cross sectional area, Finish39.3 ft. JOM - Joint Offset Medium - .5"

Observation photos (12)

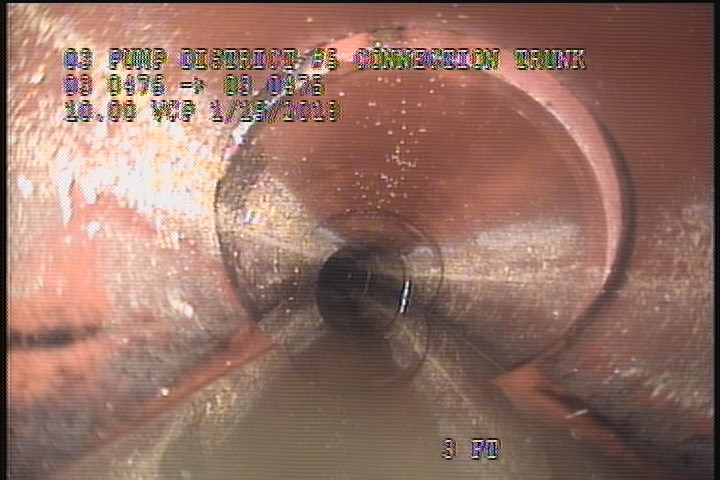

  • General Photograph

    3 ft. - General Photograph

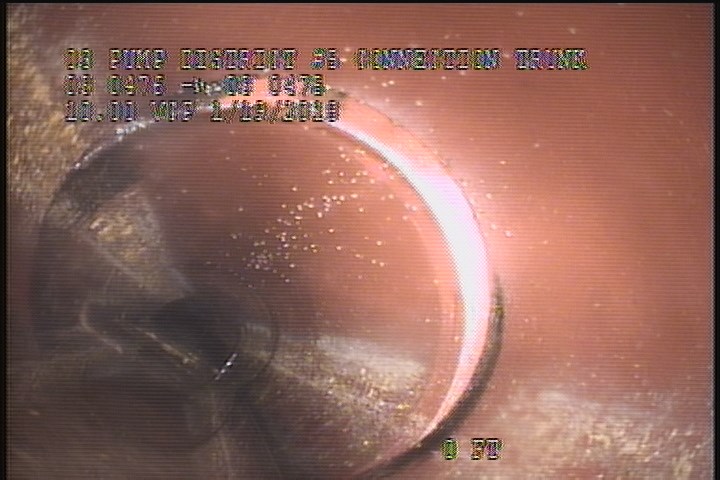

  • Joint Offset Large - 1"

    5 ft. - Joint Offset Large - 1"

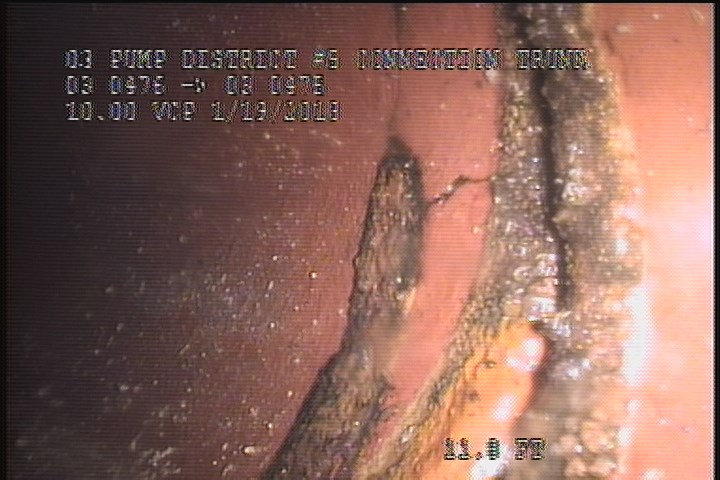

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    12.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

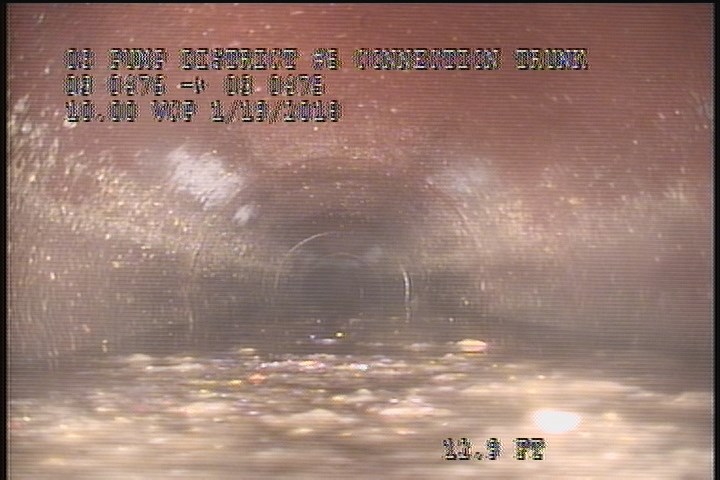

  • General Photograph

    12.9 ft. - General Photograph

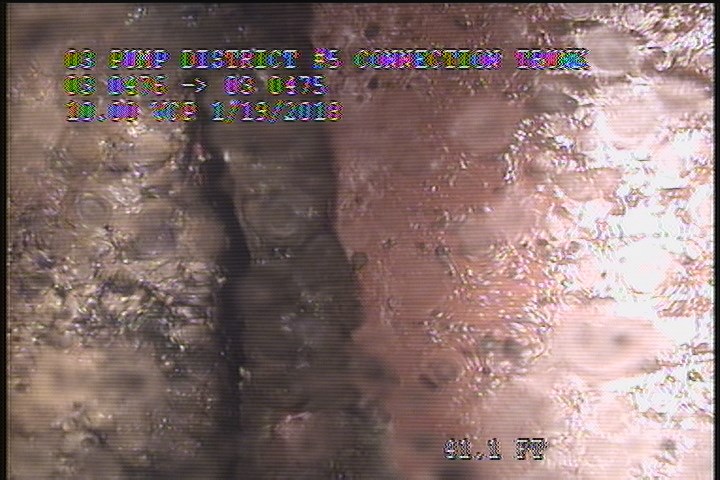

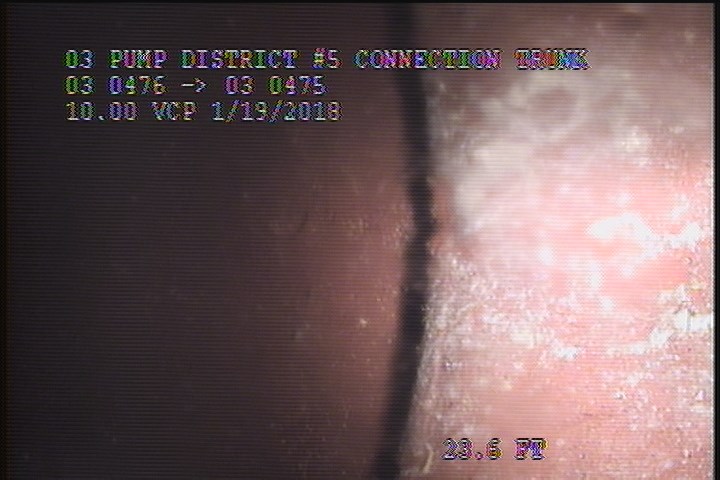

  • Joint Offset Medium - .5"

    23.6 ft. - Joint Offset Medium - .5"

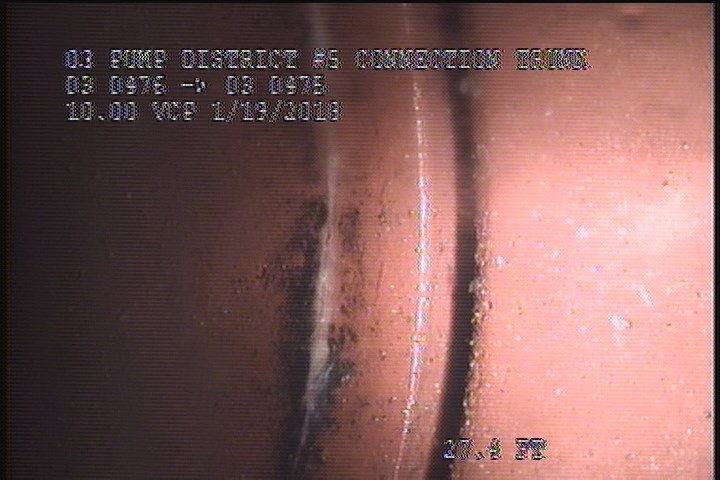

  • Joint Offset Medium - .5"

    27.4 ft. - Joint Offset Medium - .5"

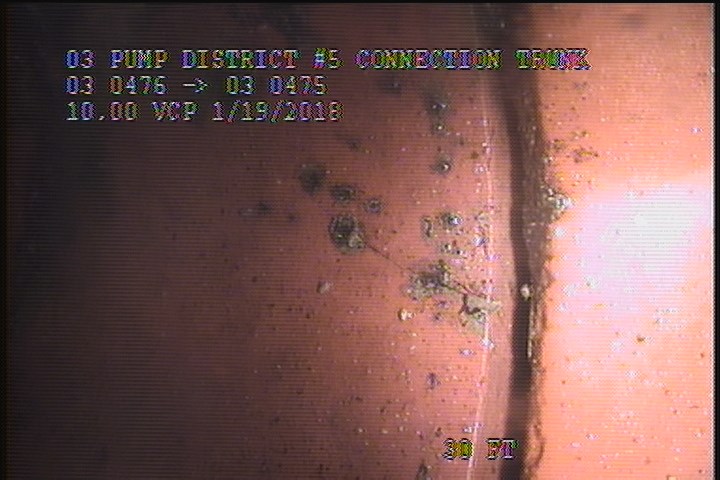

  • Joint Offset Medium - .5"

    30 ft. - Joint Offset Medium - .5"

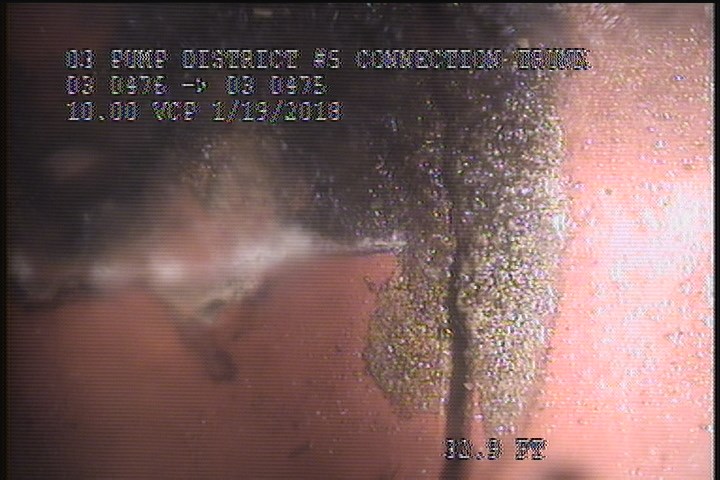

  • Joint Offset Medium - .5"

    32.9 ft. - Joint Offset Medium - .5"

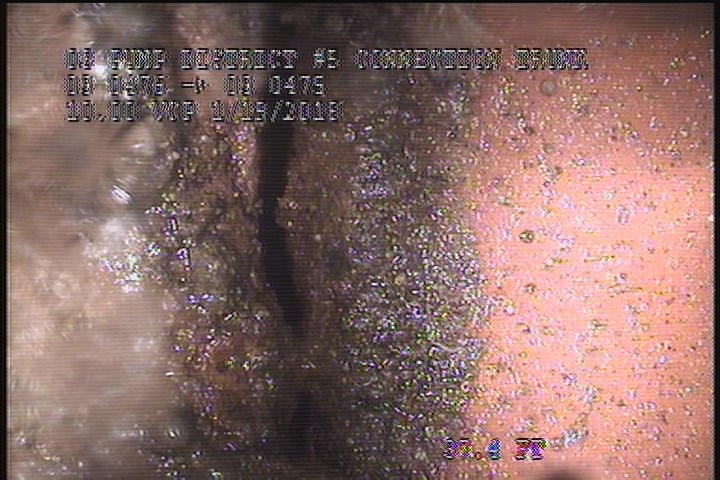

  • Joint Offset Medium - .5"

    37.4 ft. - Joint Offset Medium - .5"

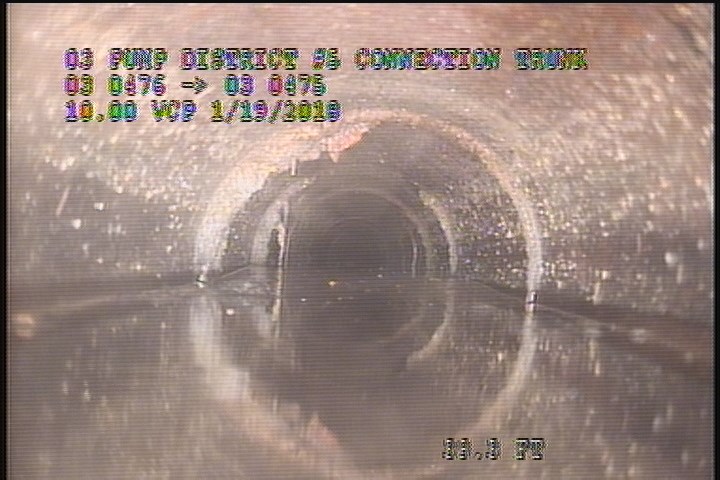

  • Survey Abandoned - DEBRIS

    39.3 ft. - Survey Abandoned - DEBRIS

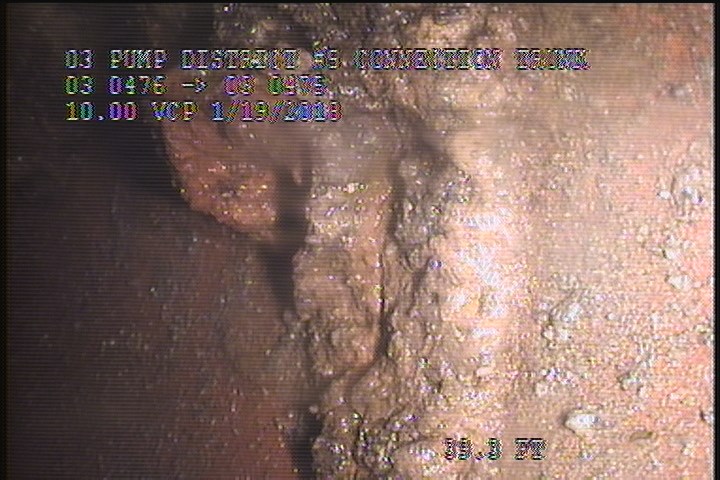

  • General Photograph - DEPOSITS

    39.3 ft. - General Photograph - DEPOSITS

  • Joint Offset Medium - .5"

    39.3 ft. - Joint Offset Medium - .5"

All inspections of P05196Work order PENDING

Observations (20)

DistanceCodeObservation
39.3SSS—
23.6JOM.5"
39.3MSADEBRIS
30JOM.5"
37.4JOM.5"
0MWL—
5JOL1"
0AMH3:30 AM
39.3MGPDEPOSITS
2SSS—
22.1MWLSPOSSIBLE SAG
39.3MWLS—
12.1FM—
3MGP—
0MWM—
32.9JOM.5"
27.4JOM.5"
12.9MGP—
39.3JOM.5"
21JOM.5"

Properties (3)

custom_field_two
5
customer
LACSD
datetime
2018-01-19T03:28:37-08:00
