Wastewater/Activity/PacpInspection/1.0Jan 19, 2018, 10:22 AM
03 0475_03 0474_1192018_023246.mp4
- Date
- 01/19/2018
- W/O
- PENDING
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00401
- PipeID
- P05195
- Time
- 2:22 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Heavy Cleaning
- Media Label
- G7606
- Sewer Name
- 03 PUMP DISTRICT #5 CONNECTION TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 22
- Purpose
- Routine Assessment
- Project
- 20180119DF_PUMP_DISTRICT_5_CONNECTION_TR
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 03 0475
- Downstream MH
- 03 0474
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 0
- Overall Quick
- —
- Overall Rating
- 0
Observation photos (4)

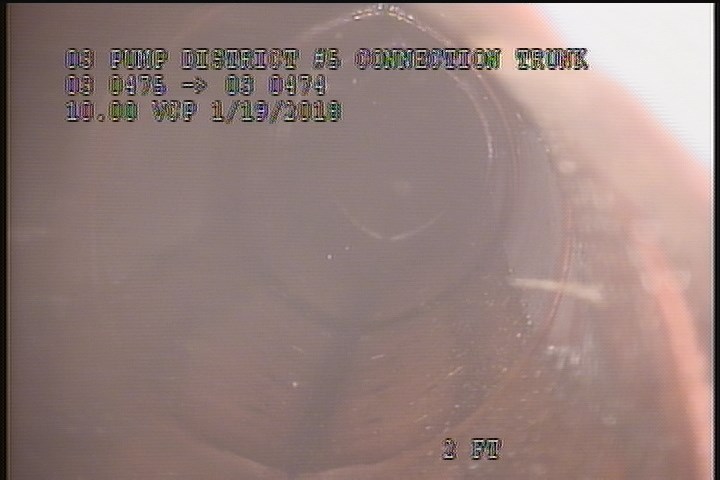

0 ft. - Upstream Manhole, Survey Begins - 2:24 AM

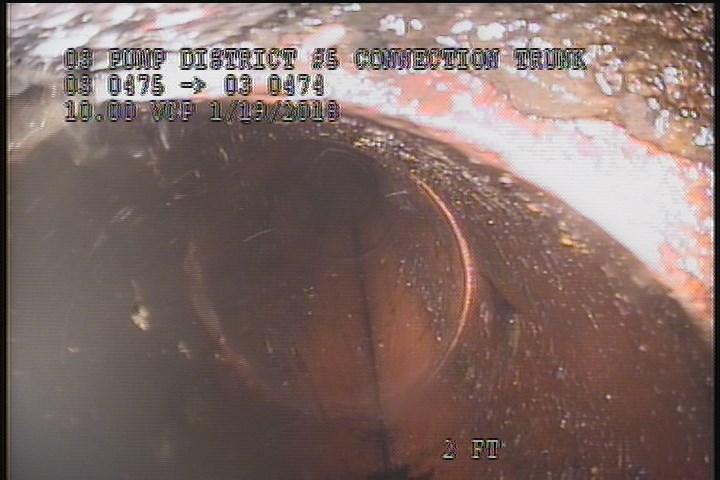

0.1 ft. - Water Mark, 45 %of cross sectional area

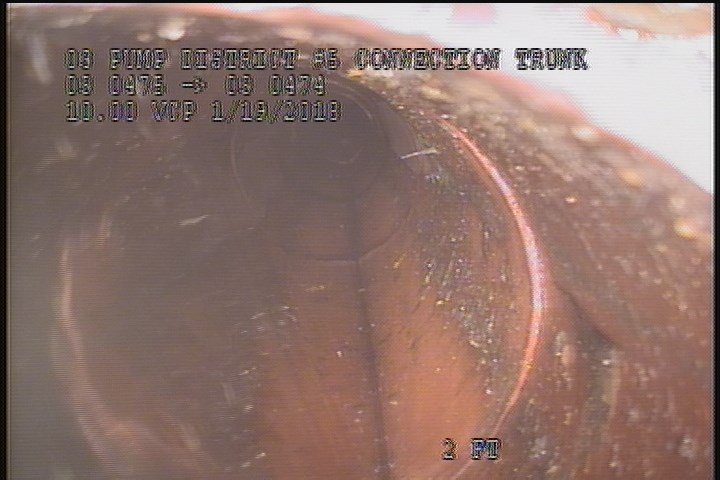

0.1 ft. - Water Level, 40 %of cross sectional area

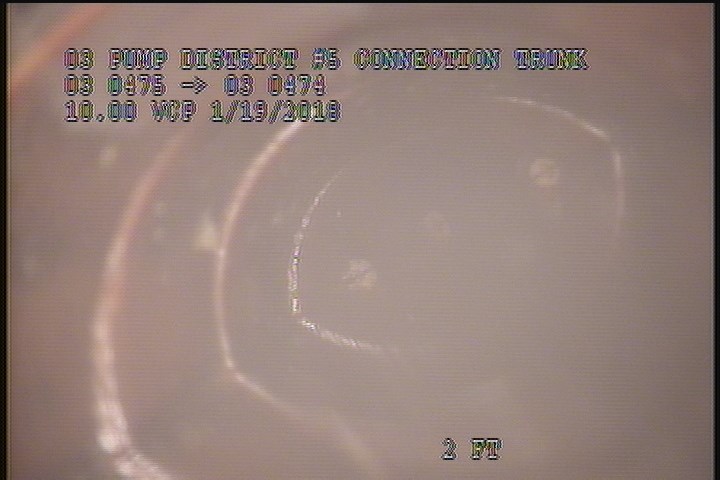

2 ft. - General Photograph
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | HIGH WATER |
| 0.1 | MWM | — |
| 0 | AMH | 2:24 AM |
| 0.1 | MWL | — |
| 2 | MGP | — |
Properties (3)
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2018-01-19T02:22:12-08:00
