Wastewater/Activity/PacpInspection/1.0Jan 18, 2018, 07:14 PM
Section#1_J 0393_J 0392__1182018__G6925.mp4
- Date
- 01/18/2018
- W/O
- 0684703
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00064
- PipeID
- P21083
- Time
- 11:14 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G6925
- Sewer Name
- J JOINT OUTFALL J - UNIT 2E
- City
- TORRANCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 28
- Purpose
- Routine Assessment
- Project
- 20180118DF_JOINT_OUTFALL_J_UNIT_2E
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- J 0393
- Downstream MH
- J 0392
- Dir. of Survey
- Downstream
- Length Surveyed
- 77 ft.
- Total Length
- 77 ft.
- Structural Index
- 2
- Structural Quick
- 2B00
- Structural Rating
- 30
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (2)

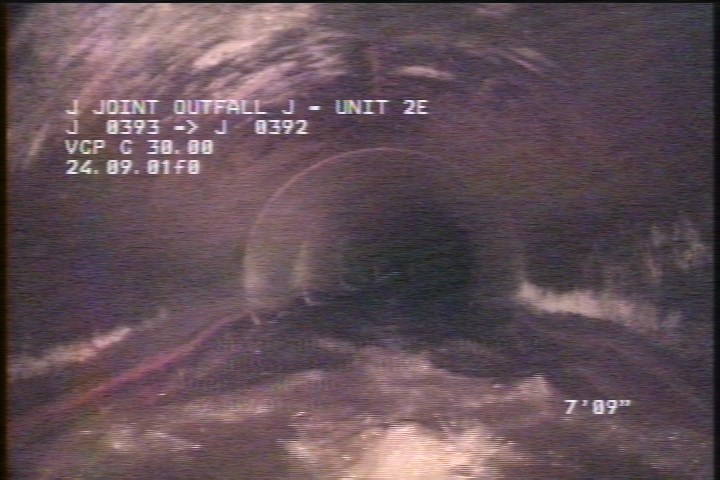

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

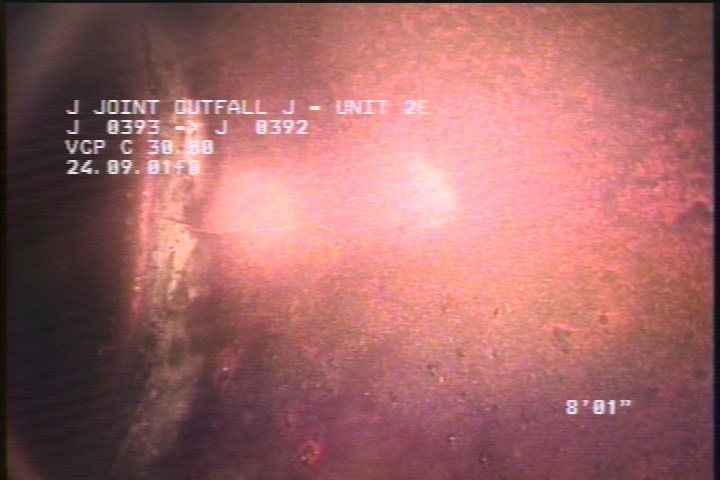

8.1 ft. - Crack Spiral, from 03 to 05 o'clock, within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0.1 | MWL | — |
| 2 | SSS | — |
| 76.2 | MGO | SLIGHT GREASE THROUGHOUT THE REACH( 5%) |
| 8.1 | CS | — |
| 0.1 | MWM | — |
| 0 | AMH | 11:18 AM |
| 77 | AMH | 11:37 AM |
| 73.1 | SSS | — |
Properties (4)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-01-18T11:14:02-08:00
- year_laid
- 19950808
