Wastewater/Activity/PacpInspection/1.0Dec 29, 2017, 08:05 AM
14 0231A_14 0231_12292017_000541.mp4
- Date
- 12/29/2017
- W/O
- 679303
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00575
- PipeID
- P18282
- Time
- 12:05 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5359
- Sewer Name
- 14 NORTH SIDE TRUNK
- City
- LANCASTER
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_679303_TV14057_JAN2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 14 0231A
- Downstream MH
- 14 0231
- Dir. of Survey
- Downstream
- Length Surveyed
- 410.1 ft.
- Total Length
- 410.1 ft.
- Structural Index
- 3
- Structural Quick
- 3N21
- Structural Rating
- 234
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 236
Observation photos (5)

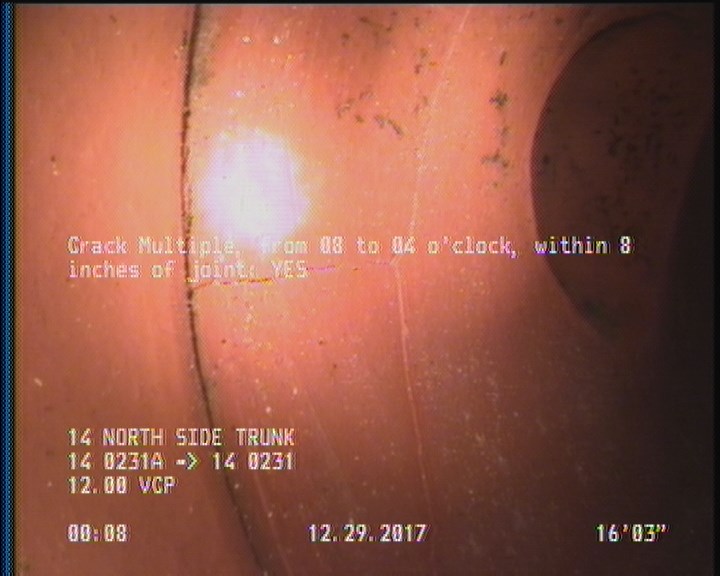

16.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

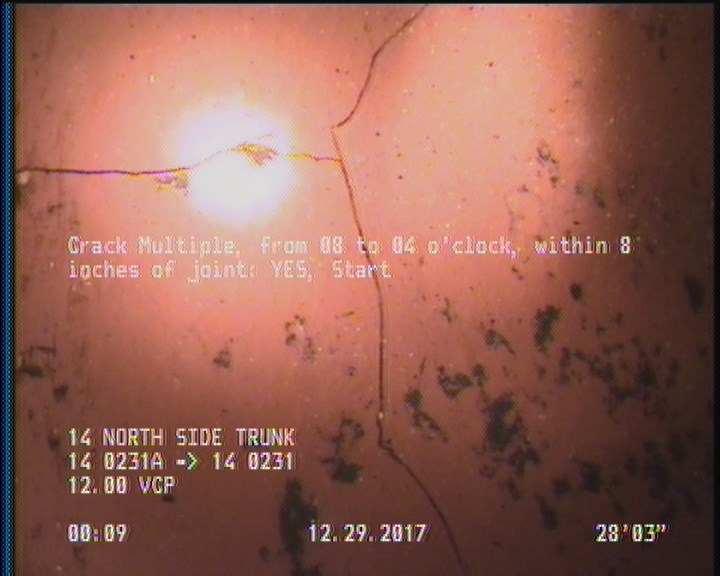

28.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

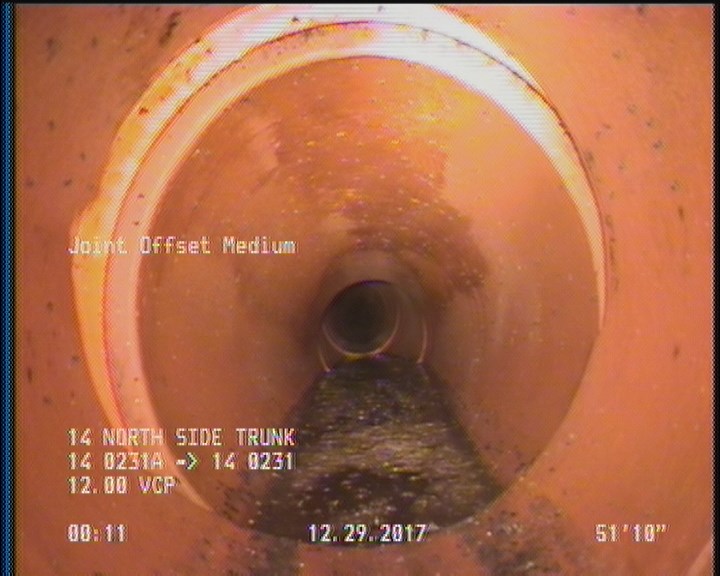

51.8 ft. - Joint Offset Medium

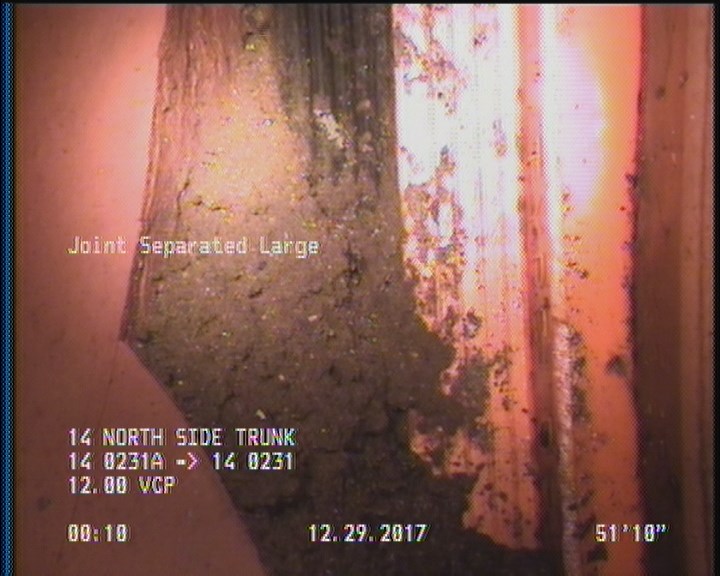

51.8 ft. - Joint Separated Large

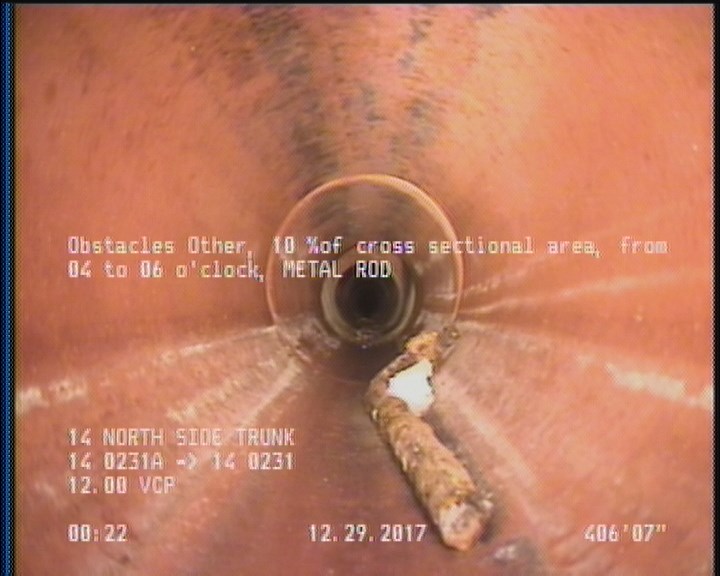

406.5 ft. - Obstacles Other, 10 %of cross sectional area, from 04 to 06 o'clock - METAL ROD
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 410.1 | AMH | 14 0231 |
| 51.8 | JOM | — |
| 17.2 | TFC | — |
| 28.2 | CM | — |
| 254.3 | TFC | — |
| 410.1 | CM | — |
| 198 | TFC | — |
| 0 | MWL | — |
| 371.1 | TFC | — |
| 51.8 | JSL | — |
| 0 | AMH | 14 0231A |
| 313.7 | TFC | — |
| 74.8 | TFC | — |
| 16.3 | CM | — |
| 406.5 | OBZ | METAL ROD |
| 136.2 | TFC | — |
Properties (4)
- additional_info
- SC346436
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-12-29T00:05:10-08:00
