Wastewater/Activity/PacpInspection/1.0Dec 19, 2017, 10:48 AM
08 0166_08 0165_12192017_024926.mp4
- Date
- 12/19/2017
- W/O
- 678022
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00009
- PipeID
- P00223
- Time
- 2:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K5251
- Sewer Name
- 08 GRACE STREET TRUNK, SECTION 1
- City
- CARSON
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_678022_DISTRICT08_DEC2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 08 0166
- Downstream MH
- 08 0165
- Dir. of Survey
- Downstream
- Length Surveyed
- 2 ft.
- Total Length
- 2 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 3
- O&M Quick
- 3100
- O&M Rating
- 3
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

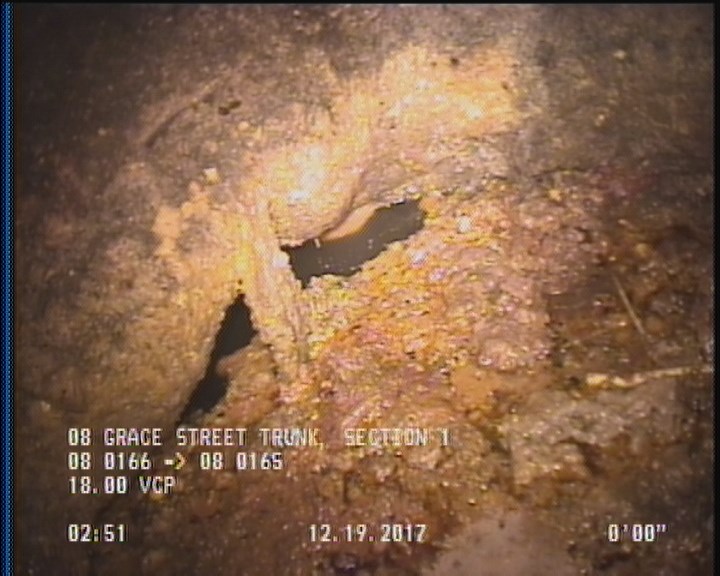

2 ft. - Survey Abandoned - DUE TO HIGH WATER LEVEL.

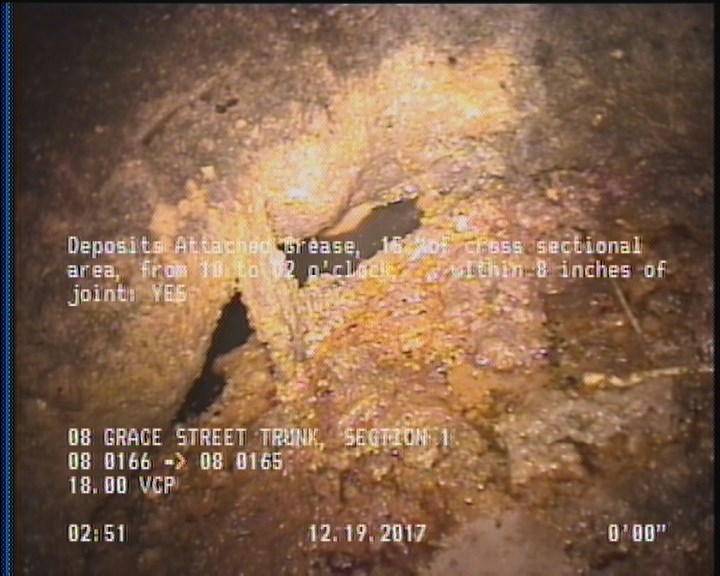

2 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 10 to 02 o'clock, , within 8 inches of joint: YES
Observations (4)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | MSA | DUE TO HIGH WATER LEVEL. |
| 0 | AMH | 08 0166 |
| 2 | DAGS | — |
Properties (6)
- additional_info
- SC346423
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-12-19T02:48:17-08:00
- lining
- CIPP
- year_laid
- 37424
